RD18

RD18-100.3 pump drive and engine assembly Diagram

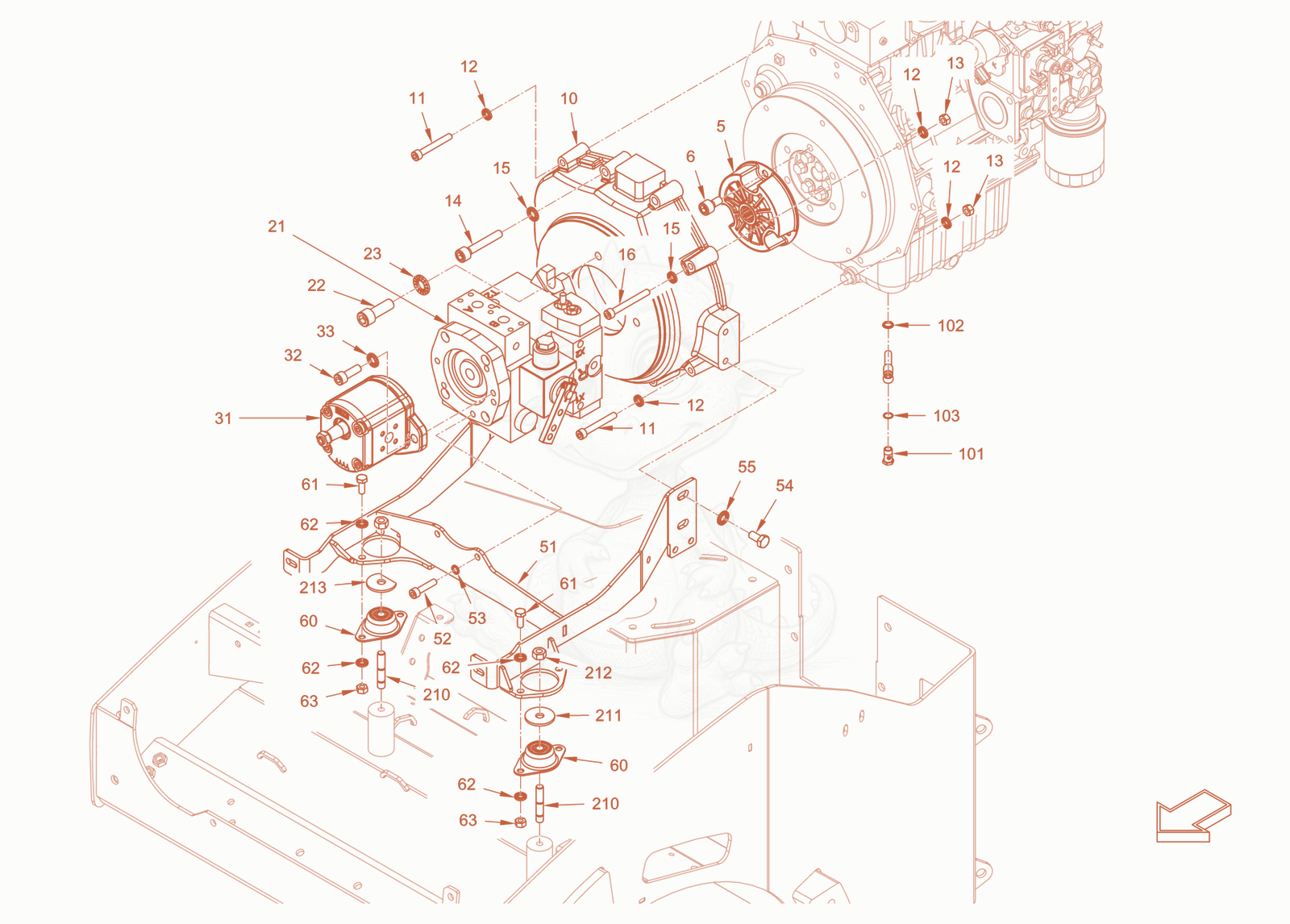

Exploded parts diagram of the pump drive and engine assembly of a Wacker Neuson RD18-100.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 55100058747Not stocked
    coupling×1
  • 65100058748Not stocked
    cheese-head screw×3
  • 105100012668
    $988.01
    Flange - 5100012668×1
  • 115100013512
    $1.66
    Cheese-head screw - 5100013512×7
  • 125100012966
    $1.57
    Locking washer - 5100012966×10
  • 135100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 145100012672
    $3.71
    Cheese-head screw - 5100012672×2
  • 155100012967
    $1.57
    Locking washer - 5100012967×2
  • 165100011480
    $2.22
    Cheese-head screw - 5100011480×1
  • 215100011769
    $12,737.46
    Variable displac. pump (drive) - 5100011769×1
  • 225100013425
    $7.25
    Cheese-head screw - 5100013425×2
  • 235100012972
    $2.09
    Locking washer - 5100012972×2
  • 315100011678
    $920.56
    Gear pump - 5100011678×1
  • 325100013450
    $1.57
    Cheese-head screw - 5100013450×2
  • 335100012967
    $1.57
    Locking washer - 5100012967×2
  • 515100012313
    $486.61
    Engine suspension - 5100012313×1
  • 525100013511
    $1.57
    Cheese-head screw - 5100013511×2
  • 535100013441
    $1.57
    Locking washer - 5100013441×2
  • 545100012520
    $1.57
    Hexagon screw - 5100012520×4
  • 555100012967
    $1.57
    Locking washer - 5100012967×4
  • 605100012181
    $53.72
    Rubber metal buffer - 5100012181×2
  • 615100012517
    $1.57
    Hexagon screw - 5100012517×4
  • 625100012966
    $1.57
    Locking washer - 5100012966×8
  • 635100012546
    $1.57
    Hexagon nut - 5100012546×4
  • 1015100013210
    $13.27
    Hollow-core screw - 5100013210×1
  • 1025100011468
    $11.69
    Sealing ring - 5100011468×1
  • 1035100013004
    $3.15
    Sealing ring - 5100013004×1
  • 2105100048692Not stocked
    stud screw×2
  • 2115100011824
    $1.66
    Washer - 5100011824×1
  • 2125100012547
    $1.49
    Hexagon nut - 5100012547×2
  • 2135100012347
    $5.54
    Washer - 5100012347×1
