RD18

RD18-100.3 electrical system lighting Diagram

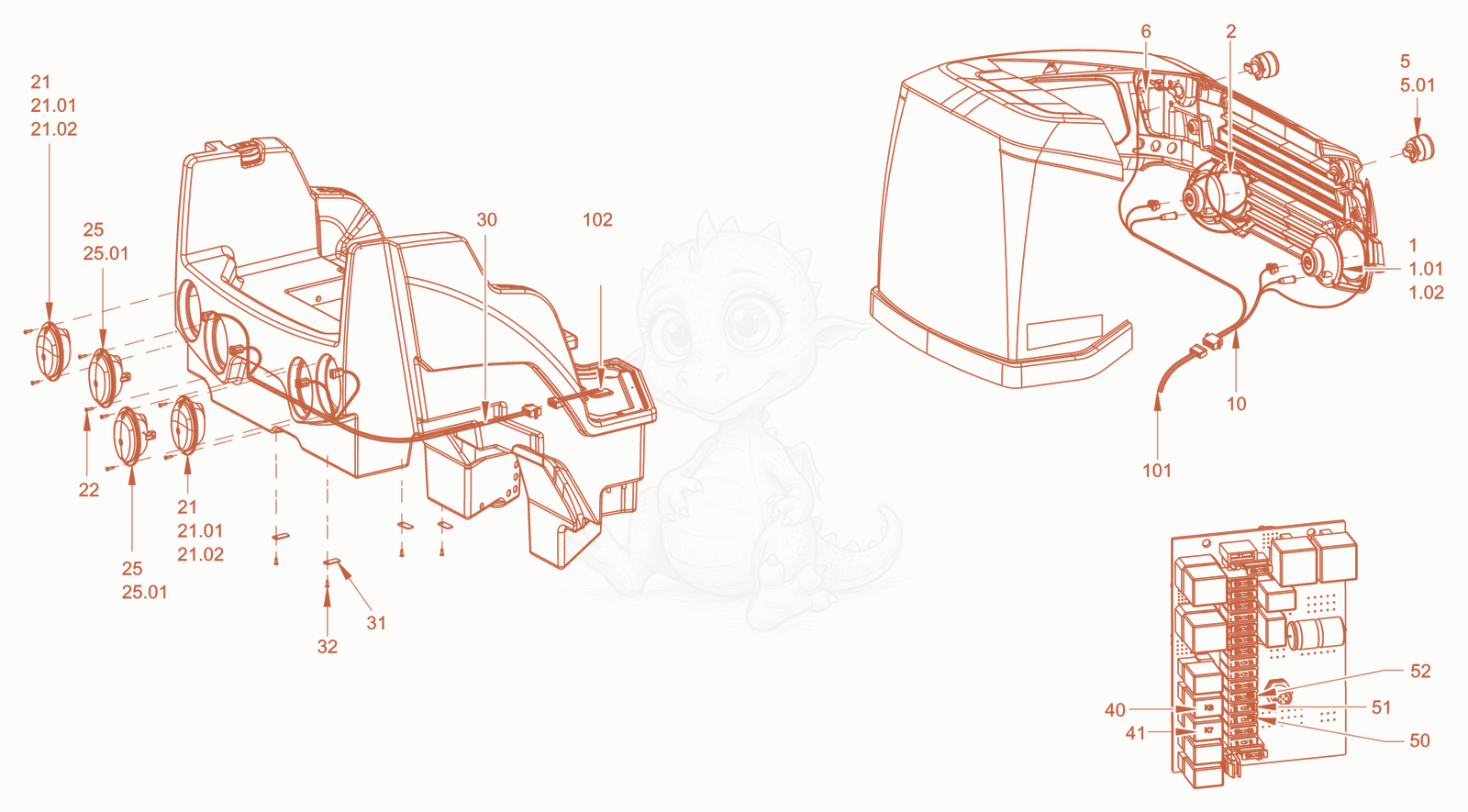

Exploded parts diagram of the electrical system lighting of a Wacker Neuson RD18-100.3, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15100011799
$250.43
Working light - 5100011799Unknown×2
15100012468
$4.55
Lamp - 5100012468Unknown×2
15100013522
$35.11
Lamp - 5100013522Unknown×2
15100065328
$58.73
headlight - 5100065328Unknown×2
15100065330Not stocked
lamp×1
25100011991
$6.72
O-ring seal - 5100011991×4
55100011800
$137.65
Direction indicator - 5100011800×2
55100012074
$32.26
Lamp - 5100012074×2
65100013582
$3.84
Sheet metal screw - 5100013582×4
105100011883
$413.70
Wire harness (lighting) - 5100011883×1
215100013448
$7.72
Lamp - 5100013448×2
215100012213
$40.63
Lamp - 5100012213×2
215100011802
$115.68
Tail light - 5100011802×2
225100011607
$1.66
Sheet metal screw - 5100011607×8
255100011801
$108.15
Reversing light - 5100011801×2
255100013448
$7.72
Lamp - 5100013448×2
305100011884
$381.22
Wire harness - 5100011884×1
315100011728
$9.98
Metal plate - 5100011728×7
325100011902
$1.49
Sheet metal screw - 5100011902×7
405100011583
$45.65
Relay - 5100011583×1
415100011583
$45.65
Relay - 5100011583×1
505100013579
$1.83
Blade fuse - 5100013579×1
515100013579
$1.83
Blade fuse - 5100013579×1
525100013580
$1.83
Blade fuse - 5100013580×1
1015100058637Not stocked
wire harness front frame×1
1025100012758
$1,313.09
Wire harness (rear frame) - 5100012758×1
