RD18

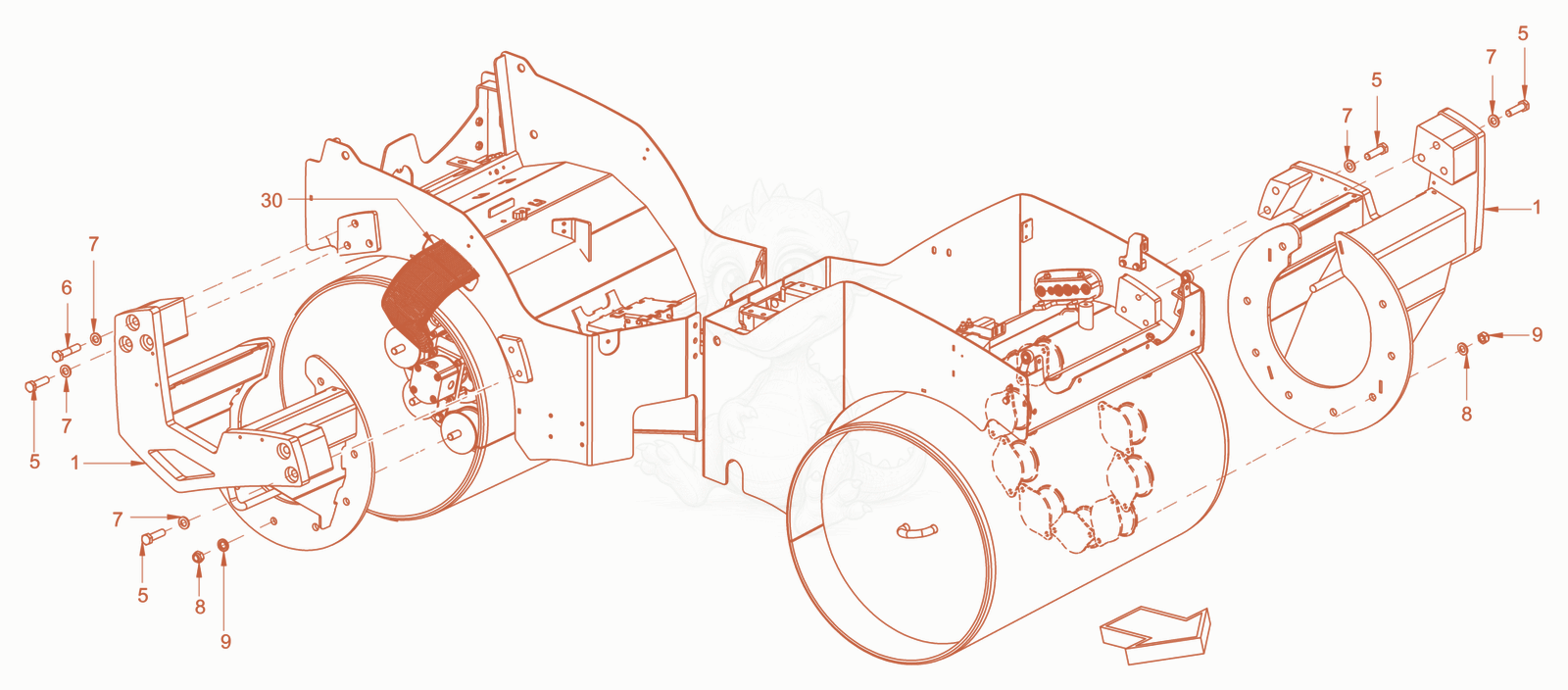

RD18-100.3 roller drum suspension Diagram

Exploded parts diagram of the roller drum suspension of a Wacker Neuson RD18-100.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100068786Not stocked
    bow plate×2
  • 55100012514
    $13.09
    Hexagon screw - 5100012514×9
  • 65100013233
    $16.76
    Hexagon screw - 5100013233×1
  • 75100012969
    $3.15
    Locking washer - 5100012969×10
  • 85100012969
    $3.15
    Locking washer - 5100012969×16
  • 95100012405
    $3.37
    Hexagon nut - 5100012405×16
  • 305100012899
    $59.33
    Wire protecting sleeve - 5100012899×1
