RD18-100c.3

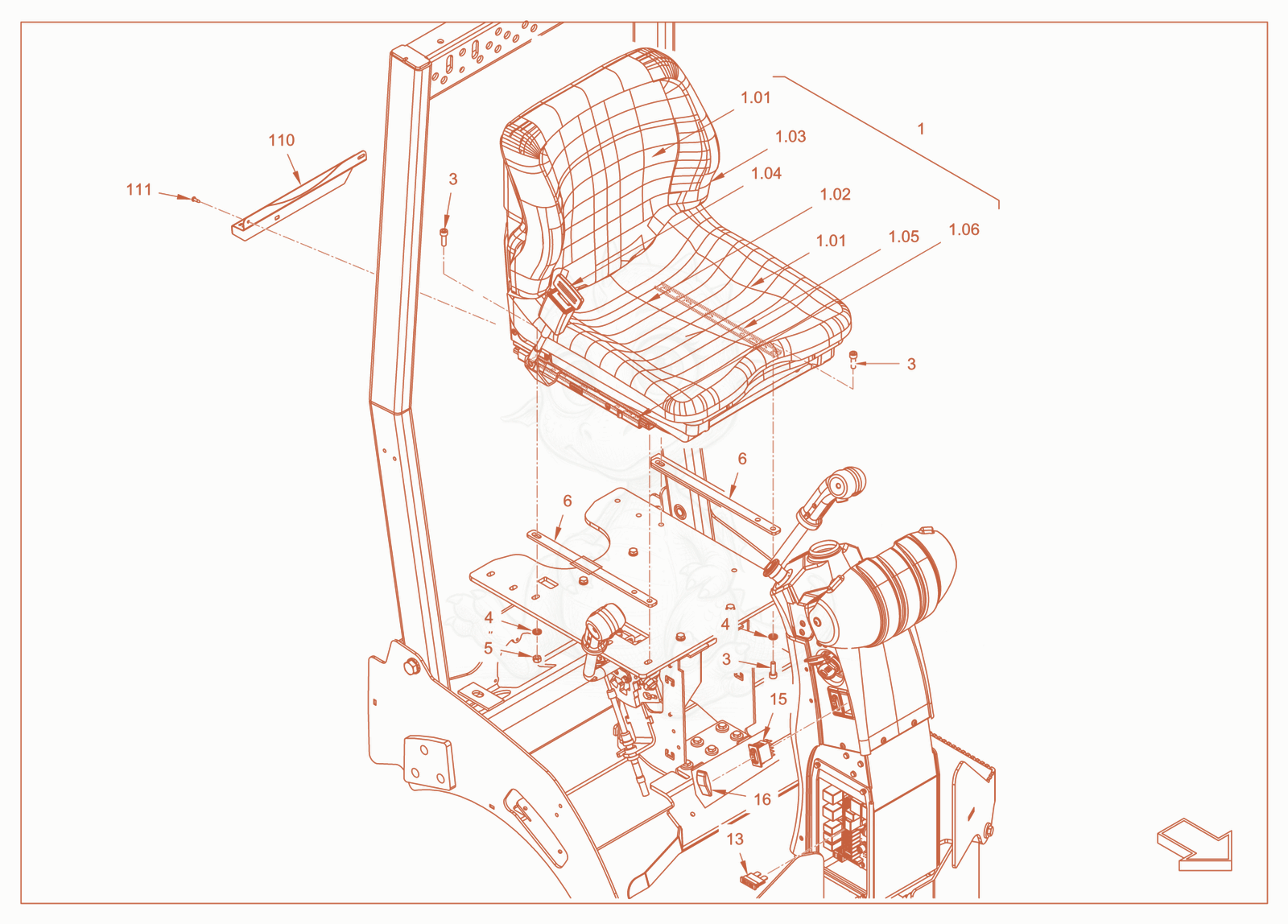

RD18-100C.3 operator's seat with adjustment Diagram

Exploded parts diagram of the operator's seat with adjustment of a Wacker Neuson RD18-100C.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100011615
    $35.52
    Handle - 5100011615×1
  • 15100013067
    $757.58
    Adjustment bar - 5100013067×1
  • 15100013083
    $655.33
    Adjustment bar - 5100013083×1
  • 15100024343Not stocked
    cushion set×1
  • 15100024920
    $608.92
    Seat contact switch - 5100024920×1
  • 15100029596
    $4,885.58
    driver's seat - 5100029596×1
  • 15100033202
    $318.41
    lap belt - 5100033202×1
  • 35100012727
    $1.57
    Cheese-head screw - 5100012727×4
  • 45100012966
    $1.57
    Locking washer - 5100012966×4
  • 55100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 65100012014
    $37.69
    Metal plate - 5100012014×2
  • 135100013580
    $1.83
    Blade fuse - 5100013580×1
  • 155100011579
    $102.54
    Switch - 5100011579×1
  • 165100011938Not stocked
    Bogie, seat heating×1
  • 1105100012306
    $50.11
    Protecting plate - 5100012306×1
  • 1115100011634
    $1.57
    Sheet metal screw - 5100011634×2
