RD18-100c.3

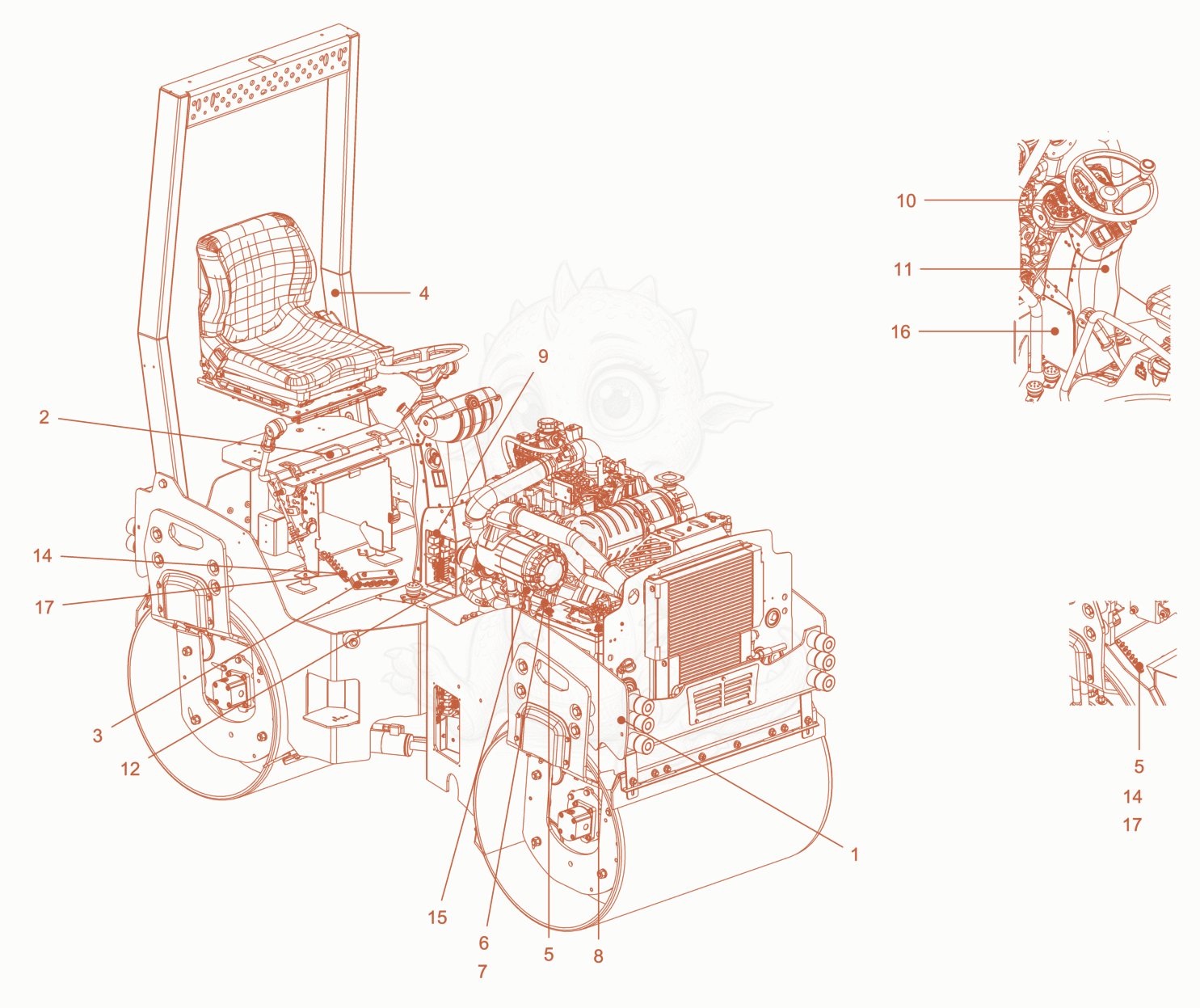

RD18-100C.3 cable harnesses Diagram

Exploded parts diagram of the cable harnesses of a Wacker Neuson RD18-100C.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100058637Not stocked
    wire harness front frame×1
  • 25100029583
    $75.42
    cable harness - 5100029583×1
  • 35100012758
    $1,313.09
    Wire harness (rear frame) - 5100012758×1
  • 45100012803
    $179.25
    Wire harness - 5100012803×1
  • 55100012764
    $228.24
    Wire harness - 5100012764×1
  • 65100012761
    $49.20
    Wire harness - 5100012761×1
  • 75100012760
    $94.82
    Wire harness - 5100012760×1
  • 85100012763
    $58.53
    Wire harness - 5100012763×1
  • 95100012574
    $735.92
    Wire harness - 5100012574×1
  • 105100052977Not stocked
    wire harness instrument panel addition×1
  • 115100066914Not stocked
    wire harness instrument panel×1
  • 125100012756
    $657.43
    Wire harness - 5100012756×1
  • 145100012762
    $62.50
    Wire harness - 5100012762×1
  • 155100012759
    $116.53
    Wire harness - 5100012759×1
  • 165100082461Not stocked
    ground cable operator's platform×1
  • 175100052981Not stocked
    ground cable steering column×1
