RD18-100 C Tandem Roller

RD18-100C pump drive and engine assembly Diagram

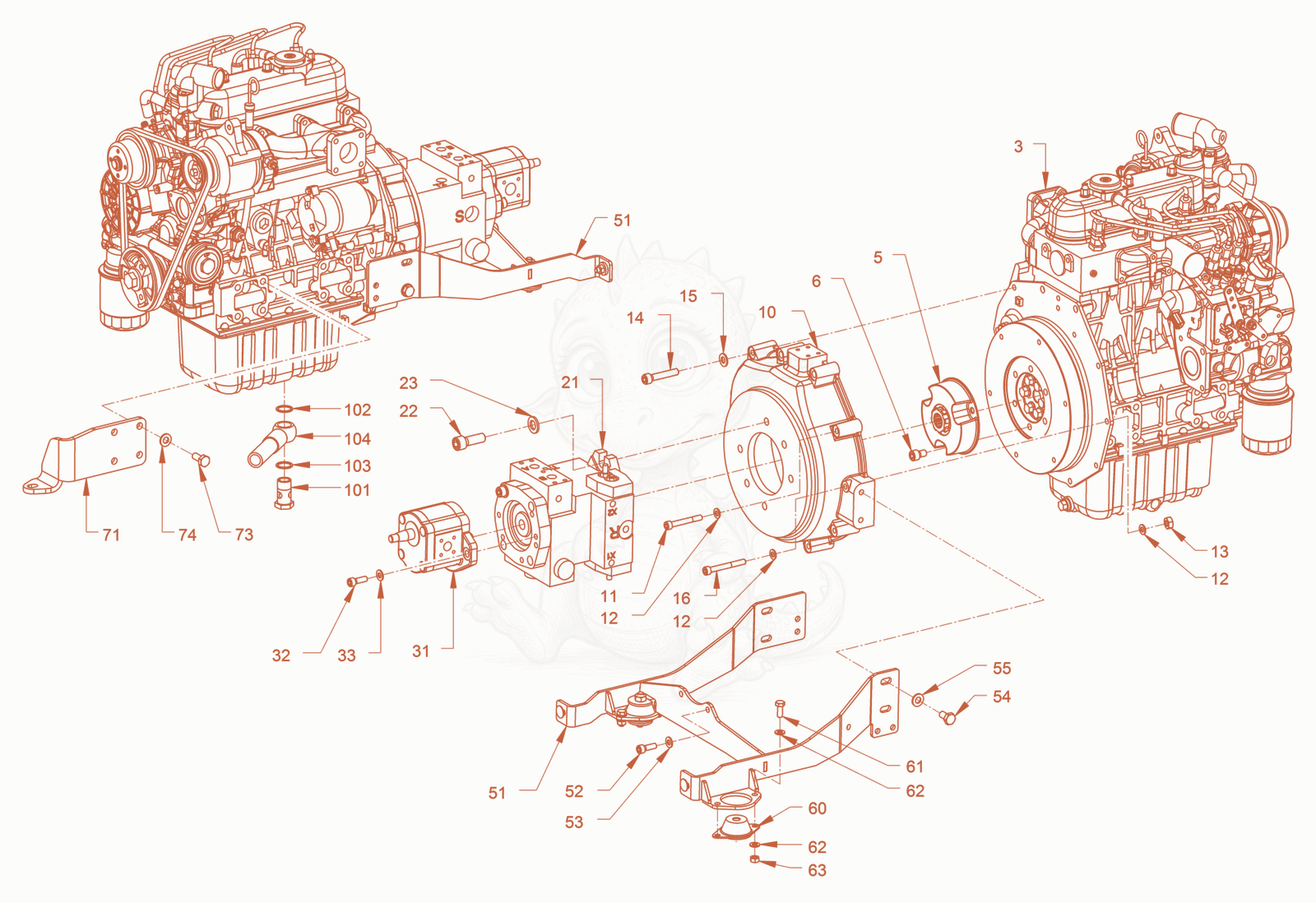

Exploded parts diagram of the pump drive and engine assembly of a Wacker Neuson RD18-100C, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

35100013231Not stocked
Diesel engine×1
55100012667
$363.72
Coupling - 5100012667Unknown×1
55100058747Not stocked
coupling×1
65100012551
$5.50
Hexagon screw - 5100012551Unknown×3
65100058748Not stocked
cheese-head screw×3
105100012668
$988.01
Flange - 5100012668×1
115100013512
$1.66
Cheese-head screw - 5100013512×7
125100012966
$1.57
Locking washer - 5100012966×10
135100012546
$1.57
Hexagon nut - 5100012546×2
145100012672
$3.71
Cheese-head screw - 5100012672×2
155100012967
$1.57
Locking washer - 5100012967×2
165100011480
$2.22
Cheese-head screw - 5100011480×1
215100011769
$12,737.46
Variable displac. pump (drive) - 5100011769×1
225100013425
$7.25
Cheese-head screw - 5100013425×2
235100012972
$2.09
Locking washer - 5100012972×2
315100011678
$920.56
Gear pump - 5100011678×1
325100013450
$1.57
Cheese-head screw - 5100013450×2
335100012967
$1.57
Locking washer - 5100012967×2
515100012313
$486.61
Engine suspension - 5100012313×1
525100013511
$1.57
Cheese-head screw - 5100013511×2
535100013441
$1.57
Locking washer - 5100013441×2
545100012520
$1.57
Hexagon screw - 5100012520×4
555100012967
$1.57
Locking washer - 5100012967×4
605100012181
$53.72
Rubber metal buffer - 5100012181×2
615100012517
$1.57
Hexagon screw - 5100012517×4
625100012966
$1.57
Locking washer - 5100012966×8
635100012546
$1.57
Hexagon nut - 5100012546×4
715100012338
$57.13
Bracket - 5100012338×1
735100012553
$4.93
Hexagon screw - 5100012553×4
745100012967
$1.57
Locking washer - 5100012967×4
1015100013210
$13.27
Hollow-core screw - 5100013210×1
1025100011468
$11.69
Sealing ring - 5100011468×1
1035100013004
$3.15
Sealing ring - 5100013004×1
1045100012816
$42.19
Flexible tubing - 5100012816×1
