RD18-100 C Tandem Roller

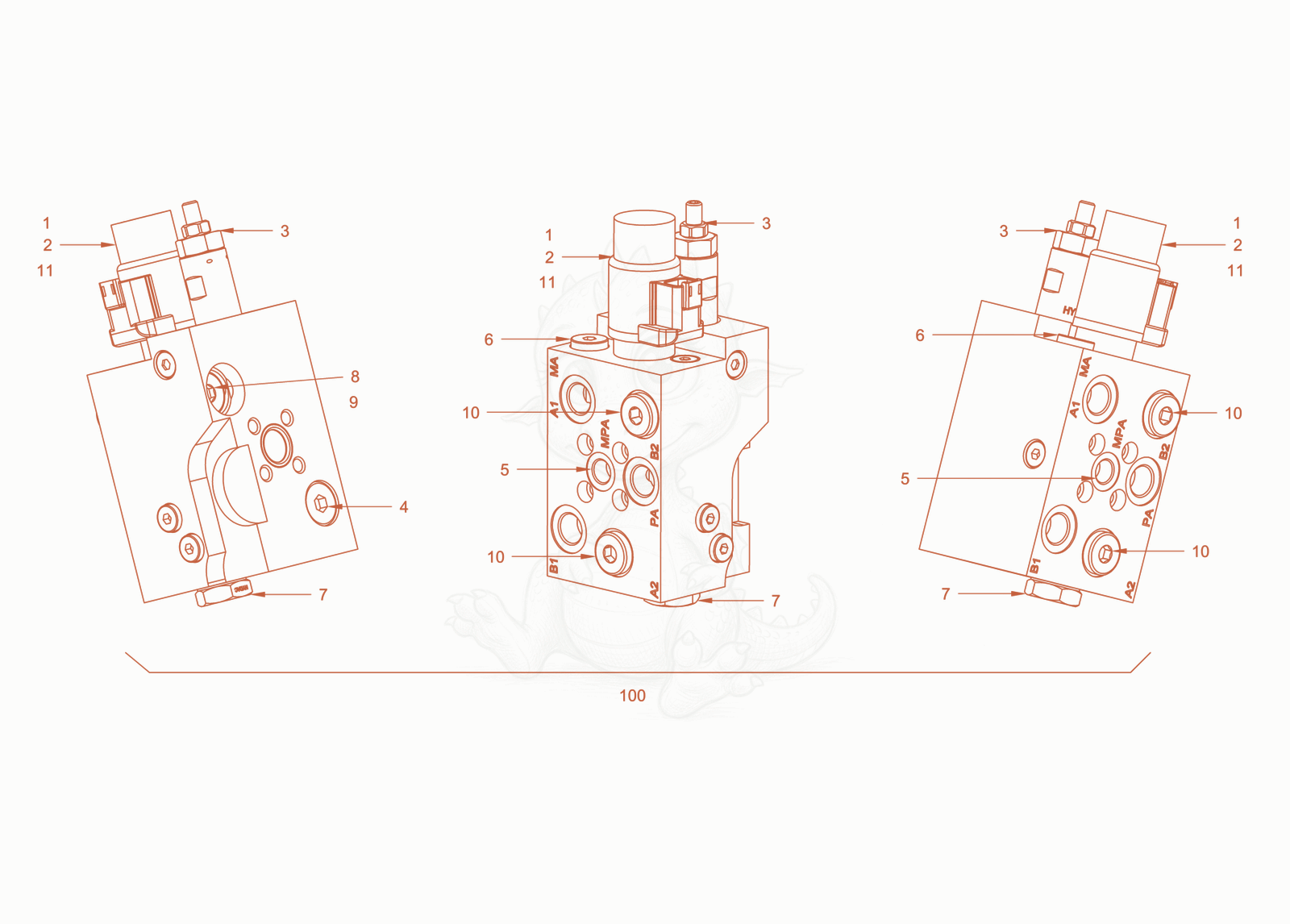

RD18-100C valve block Diagram

Exploded parts diagram of the valve block of a Wacker Neuson RD18-100C, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100050682Not stocked
    directional control valve×1
  • 25100052950Not stocked
    solenoid coil×1
  • 35100052951
    $807.62
    pressure-relief valve - 5100052951×1
  • 45100052952Not stocked
    pressure-relief valve×1
  • 55100052953Not stocked
    o-ring seal×1
  • 65100011608
    $6.37
    Screw plug - 5100011608×1
  • 75100050697Not stocked
    locking screw×1
  • 85100052955Not stocked
    locking screw×1
  • 95100023104
    $3.84
    o-ring seal - 5100023104×1
  • 105100011855
    $6.19
    Screw plug - 5100011855×2
  • 115100055984
    $144.27
    Set of Seals - 5100055984×1
  • 1005100052956Not stocked
    control block×1
