RD18-100 C Tandem Roller

RD18-100C advance drive Diagram

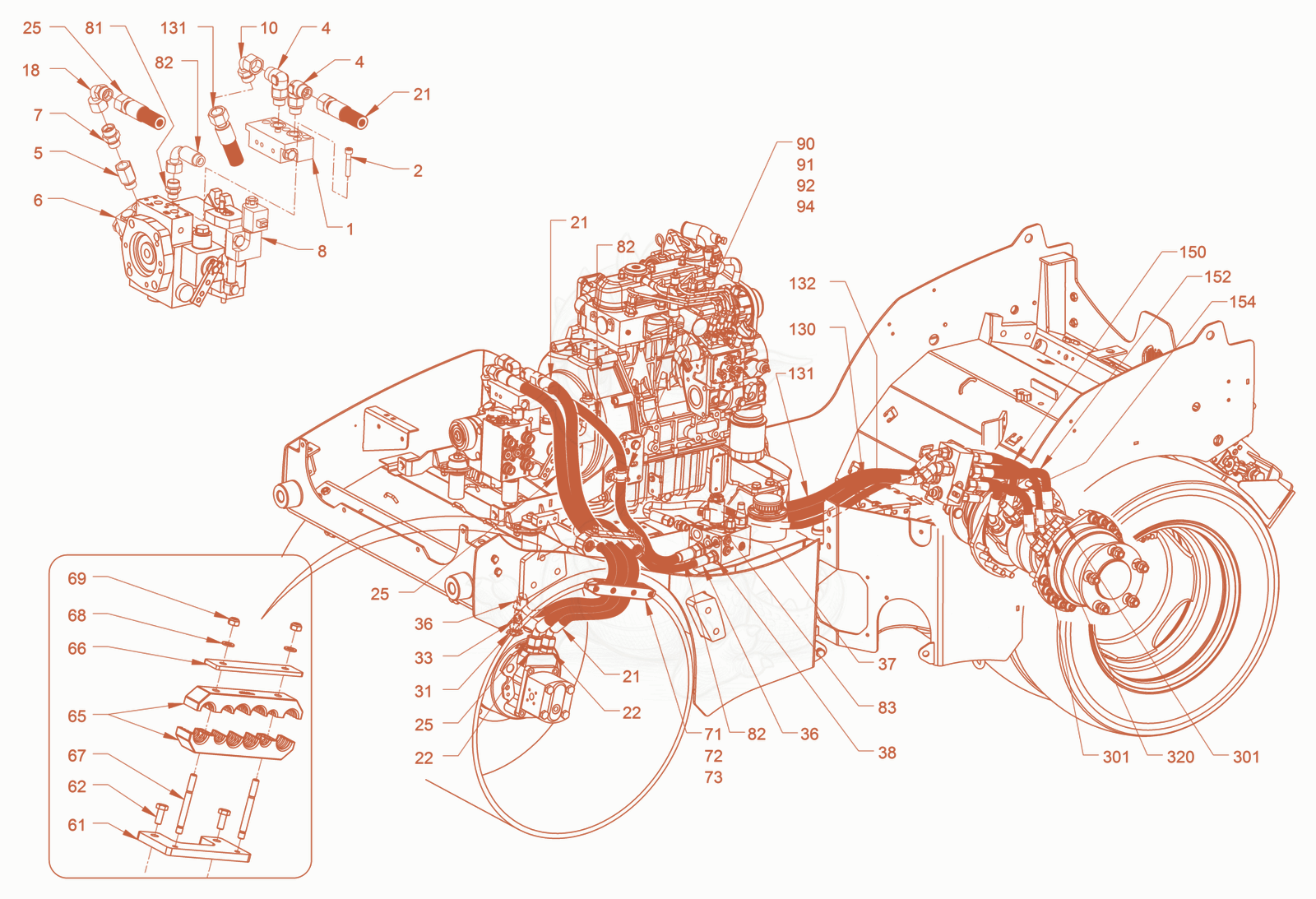

Exploded parts diagram of the advance drive of a Wacker Neuson RD18-100C, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100012426
    $874.57
    Valve block - 5100012426×1
  • 25100011659
    $1.60
    Cheese-head screw - 5100011659×5
  • 45100012721
    $96.80
    Elbow adjustable - 5100012721×2
  • 55100012720
    $18.87
    Reducing piece - 5100012720×1
  • 65100013194
    $689.80
    Valve block - 5100013194×1
  • 75100013539
    $14.36
    Straight screwed socket - 5100013539×2
  • 85100012429
    $1,078.35
    Valve block - 5100012429×1
  • 105100011416
    $91.01
    Intermediate piece - 5100011416×1
  • 185100011416
    $91.01
    Intermediate piece - 5100011416×1
  • 215100012742
    $239.55
    Flexible tubing - 5100012742×1
  • 225100013489
    $7.92
    Straight screwed socket - 5100013489×2
  • 255100012743
    $247.74
    Flexible tubing - 5100012743×1
  • 315100013472
    $9.52
    Straight screwed socket - 5100013472×1
  • 335100013613
    $36.61
    Elbow adjustable - 5100013613×1
  • 365100011588
    $180.42
    Flexible tubing - 5100011588×1
  • 375100013475
    $8.78
    Straight screwed socket - 5100013475×1
  • 385100013475
    $8.78
    Straight screwed socket - 5100013475×1
  • 615100011881
    $69.52
    Metal plate - 5100011881×1
  • 625100012517
    $1.57
    Hexagon screw - 5100012517×2
  • 655100011879
    $23.35
    Half-clip - 5100011879×2
  • 665100011880
    $19.56
    Metal plate - 5100011880×1
  • 675100012977
    $4.15
    Stud bolt - 5100012977×2
  • 685100012966
    $1.57
    Locking washer - 5100012966×2
  • 695100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 715100011887
    $7.88
    Hose clip - 5100011887×4
  • 725100013404
    $1.57
    Cheese-head screw - 5100013404×8
  • 735100012545
    $1.57
    Hexagon nut - 5100012545×8
  • 815100013473
    $11.22
    Straight screwed socket - 5100013473×1
  • 825100012741
    $97.28
    Flexible tubing - 5100012741×1
  • 835100013476
    $13.09
    Straight screwed socket - 5100013476×1
  • 905100011417
    $22.40
    Pipe clip - 5100011417×1
  • 915100012613
    $1.57
    Hexagon screw - 5100012613×1
  • 925100012966
    $1.57
    Locking washer - 5100012966×2
  • 945100012546
    $1.57
    Hexagon nut - 5100012546×1
  • 1305100012742
    $239.55
    Flexible tubing - 5100012742×1
  • 1315100013160Not stocked
    Flexible tubing×1
  • 1325100011560
    $101.31
    Flexible tubing - 5100011560×1
  • 1505100013162Not stocked
    Flexible tubing×2
  • 1525100013164Not stocked
    Flexible tubing×2
  • 1545100013165Not stocked
    Flexible tubing×2
  • 3015100011994
    $12.13
    Straight screwed socket - 5100011994×4
  • 3205100013475
    $8.78
    Straight screwed socket - 5100013475×2
