RD 18-100 C

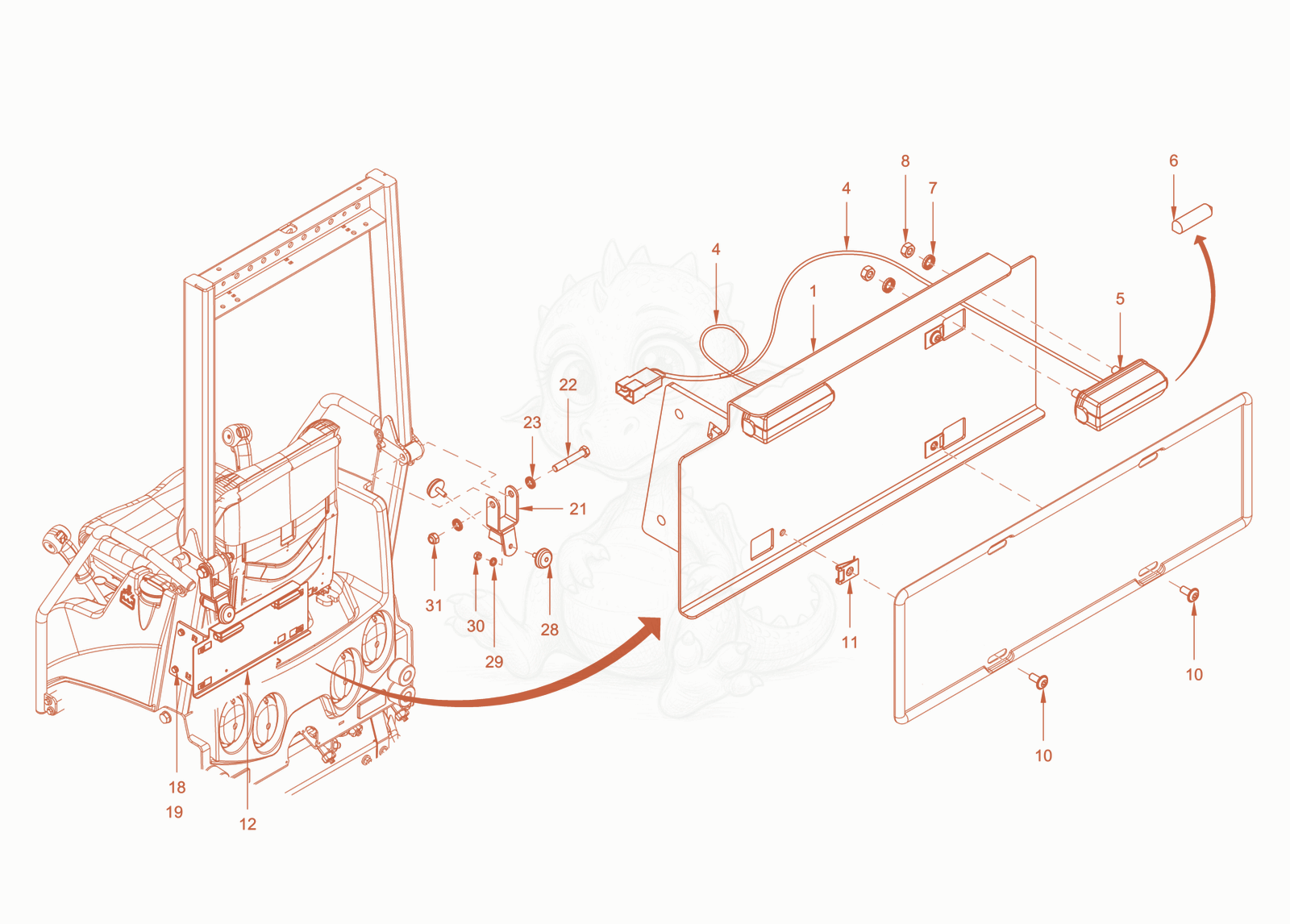

RD18-100C number plate holder Diagram

Exploded parts diagram of the number plate holder of a Wacker Neuson RD18-100C, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100068813Not stocked
    holder×1
  • 45100025910Not stocked
    cable harness×1
  • 55100011549
    $118.09
    License plate light - 5100011549×2
  • 65100012467
    $4.72
    Lamp - 5100012467×2
  • 75100012965
    $3.01
    Locking washer - 5100012965×4
  • 85100012545
    $1.57
    Hexagon nut - 5100012545×4
  • 105100025881
    $1.57
    fillister head screw - 5100025881×4
  • 115100013599
    $3.97
    Clip nut - 5100013599×4
  • 125100068725Not stocked
    number plate×1
  • 185100012515
    $1.49
    Hexagon screw - 5100012515×2
  • 195100012966
    $1.57
    Locking washer - 5100012966×2
  • 215100016849
    $129.27
    stop - 5100016849×2
  • 225100013379
    $11.22
    Hexagon screw - 5100013379×2
  • 235100012969
    $3.15
    Locking washer - 5100012969×4
  • 285100013377
    $45.91
    Rubber buffer - 5100013377×4
  • 295100012967
    $1.57
    Locking washer - 5100012967×4
  • 305100012547
    $1.49
    Hexagon nut - 5100012547×4
  • 315100012603
    $2.40
    Safety nut - 5100012603×2
