RD 18-100 C

RD18-100C electrical system Diagram

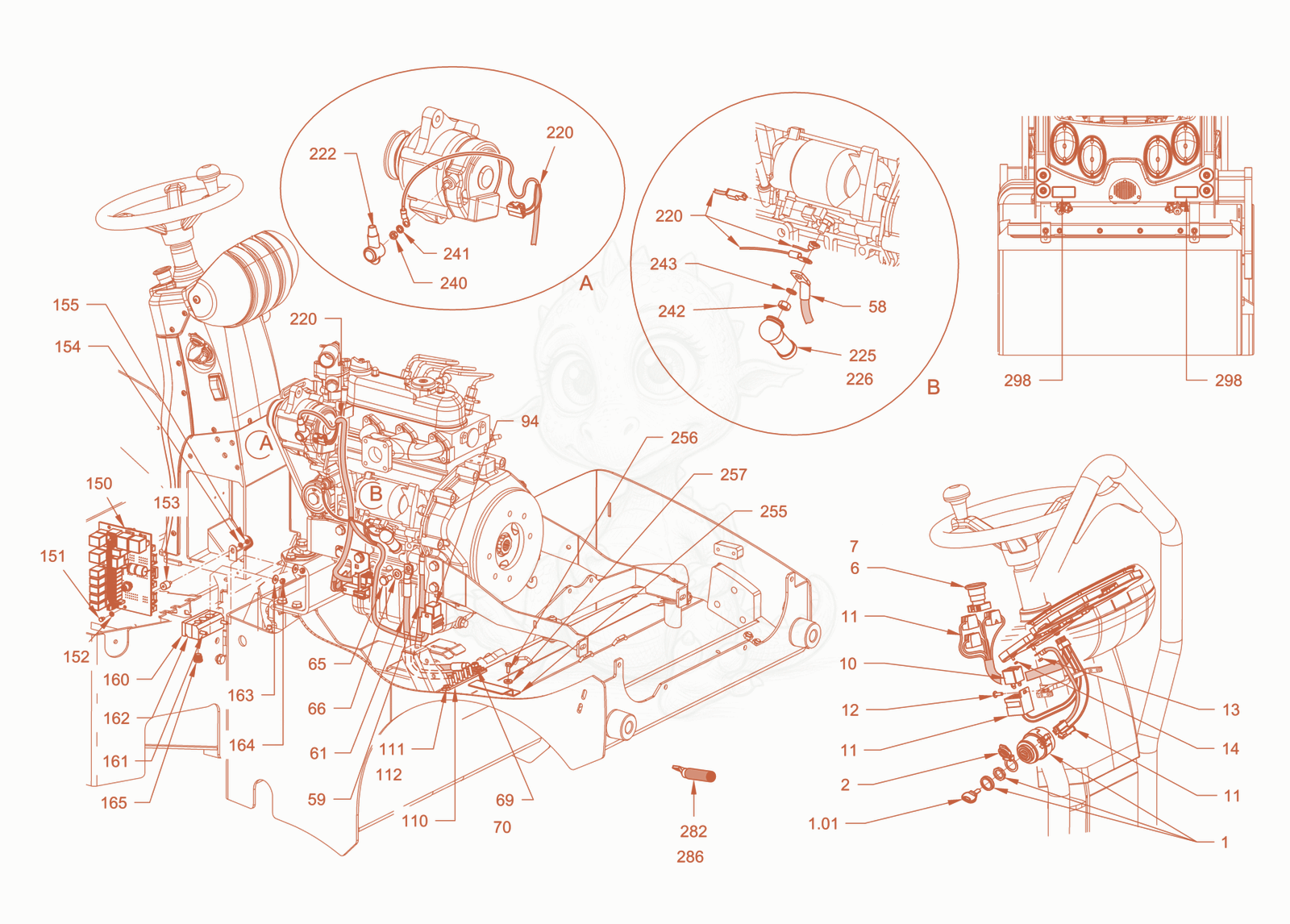

Exploded parts diagram of the electrical system of a Wacker Neuson RD18-100C, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100013570
    $463.22
    Ignition switch - 5100013570×1
  • 15100013557
    $20.31
    Key - 5100013557×1
  • 25100013506
    $48.82
    Lid - 5100013506×1
  • 65100012486
    $24.75
    Push button switch - 5100012486×1
  • 65100023241
    $109.99
    push button - 5100023241×1
  • 75100023242
    $47.22
    fixation - 5100023242×1
  • 105100011784
    $130.79
    Signal transmitter - 5100011784×1
  • 115100012576
    $349.97
    Wire harness - 5100012576Unknown×1
  • 115100039066Not stocked
    Cable Harness×1
  • 125100013594
    $3.88
    Safety screw - 5100013594×1
  • 135100011599
    $3.01
    Hexagon nut - 5100011599×1
  • 145100011586
    $1.57
    Hexagon nut - 5100011586×1
  • 585100012763
    $58.53
    Wire harness - 5100012763×1
  • 595100012761
    $49.20
    Wire harness - 5100012761×1
  • 615100012760
    $94.82
    Wire harness - 5100012760×1
  • 655100058636Not stocked
    hexagon screw×1
  • 665100011918
    $1.57
    Serrated lock washer - 5100011918×1
  • 695100011915
    $1.57
    Hexagon nut - 5100011915×1
  • 705100011917
    $1.57
    Serrated lock washer - 5100011917×1
  • 945100011859
    $96.83
    Relay - 5100011859×1
  • 1105100011974
    $56.01
    Ground terminal - 5100011974×2
  • 1115100012965
    $3.01
    Locking washer - 5100012965×4
  • 1125100012572
    $20.09
    Hexagon screw - 5100012572×4
  • 1505100012579
    $1,660.79
    Circuit board - 5100012579×1
  • 1515100013594
    $3.88
    Safety screw - 5100013594×3
  • 1525100013536
    $2.44
    Serrated lock washer - 5100013536×3
  • 1535100011669
    $12.09
    Rubber metal buffer - 5100011669×3
  • 1545100011753
    $1.57
    Washer - 5100011753×3
  • 1555100012898
    $3.15
    Hexagon nut - 5100012898×3
  • 1605100012326
    $36.12
    Cover plate - 5100012326×1
  • 1615100012586
    $2.62
    Stud bolt - 5100012586×2
  • 1625100013373
    $4.72
    Half-clip - 5100013373×2
  • 1635100012965
    $3.01
    Locking washer - 5100012965×2
  • 1645100012545
    $1.57
    Hexagon nut - 5100012545×2
  • 1655100011537
    $0.85
    Filler cap - 5100011537×1
  • 2205100012756
    $657.43
    Wire harness - 5100012756×1
  • 2225100012829
    $14.86
    Protecting cap - 5100012829×1
  • 2255100013184
    $14.62
    Protecting cap - 5100013184×1
  • 2265100013573
    $1.49
    Wire fastener - 5100013573×1
  • 2405100011914
    $1.57
    Hexagon nut - 5100011914×1
  • 2415100011916
    $1.57
    Serrated lock washer - 5100011916×1
  • 2425100011915
    $1.57
    Hexagon nut - 5100011915×1
  • 2435100013441
    $1.57
    Locking washer - 5100013441×1
  • 2555100012337
    $13.38
    Bracket - 5100012337×1
  • 2565100012965
    $3.01
    Locking washer - 5100012965×2
  • 2825100082461Not stocked
    ground cable operator's platform×1
  • 2865100052981Not stocked
    ground cable steering column×1
  • 2985100011748
    $17.63
    Rear reflector - 5100011748×2
