RD18-100c

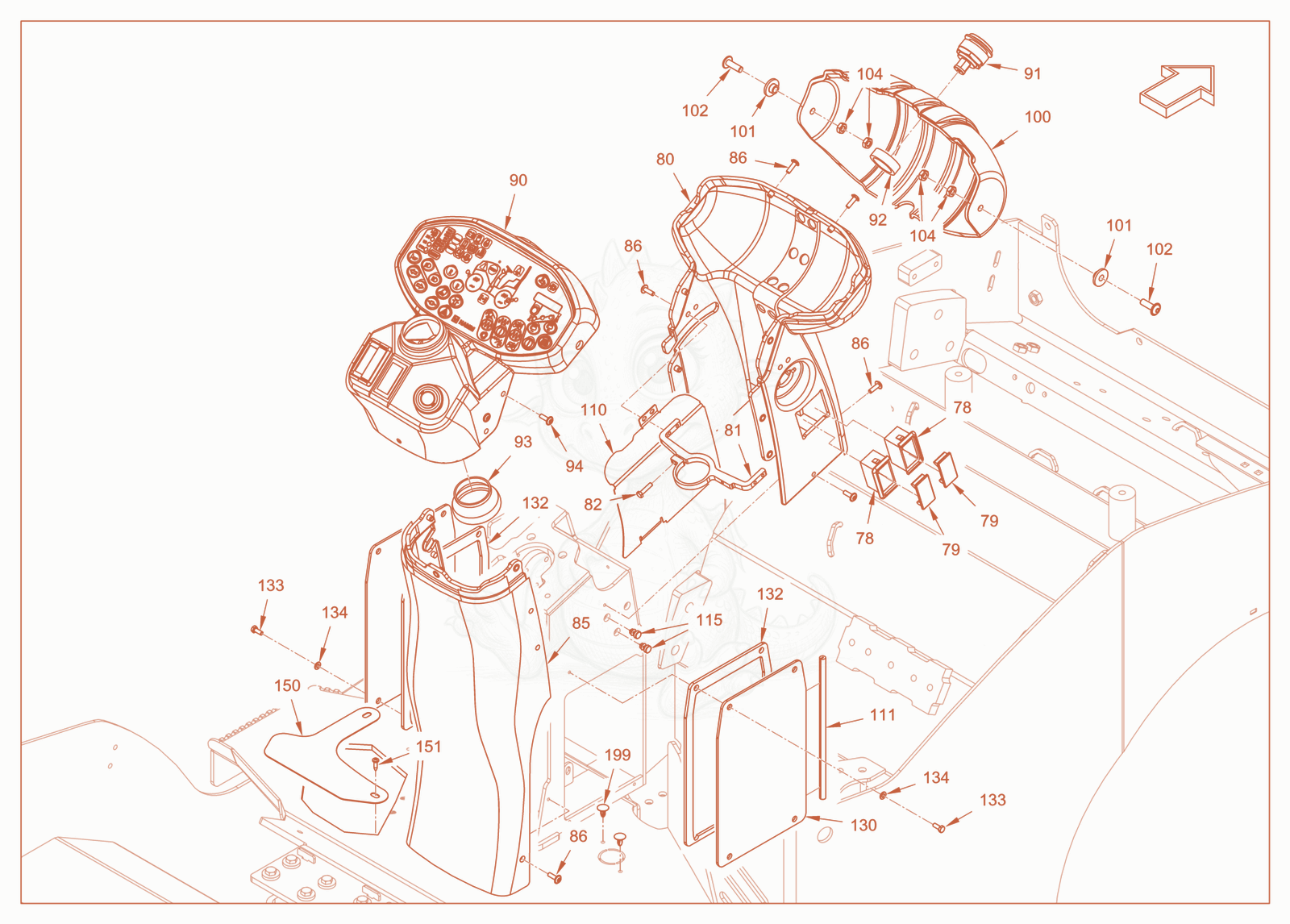

RD18-100C canopies and covers Diagram

Exploded parts diagram of the canopies and covers of a Wacker Neuson RD18-100C, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 785100011595
    $22.67
    Frame - 5100011595×2
  • 795100011580
    $11.69
    Blind cover - 5100011580×3
  • 805100012647
    $516.42
    Covering part - 5100012647×1
  • 815100011854
    $182.23
    Bracket - 5100011854×1
  • 825100012607
    $1.57
    Hexagon screw - 5100012607×1
  • 855100012648
    $196.97
    Covering part - 5100012648×1
  • 865100086721Not stocked
    fillister head screw×6
  • 865100086721Not stocked
    fillister head screw×8
  • 905100025103
    $5,335.29
    instrument panel - 5100025103×1
  • 915100013596
    $232.07
    Built-in lock - 5100013596×1
  • 925100011698
    $17.92
    Spacer block - 5100011698×1
  • 935100011860
    $23.13
    Rubber sleeve - 5100011860×1
  • 945100086721Not stocked
    fillister head screw×7
  • 1005100025100
    $406.42
    covering part - 5100025100×1
  • 1015100012456
    $2.71
    Bushing - 5100012456×2
  • 1025100086722Not stocked
    fillister head screw×2
  • 1045100013537
    $1.57
    Hexagon nut - 5100013537×4
  • 1105100012649
    $109.92
    Splash protection - 5100012649×1
  • 1115100012920
    $19.72
    Edge protection - 5100012920×0.6
  • 1155100011656
    $1.49
    Filler cap - 5100011656×6
  • 1305100012650
    $67.08
    Cover - 5100012650×2
  • 1325100012651
    $10.74
    Sealing profile - 5100012651×2
  • 1335100012592
    $11.56
    Hexagon screw - 5100012592×8
  • 1345100012936
    $2.27
    Washer - 5100012936×8
  • 1505100012881
    $37.61
    Cover plate - 5100012881×2
  • 1515100011634
    $1.57
    Sheet metal screw - 5100011634×2
  • 1995100011550
    $1.57
    Plug - 5100011550×2
