Vibration Roller RD18-100c 3

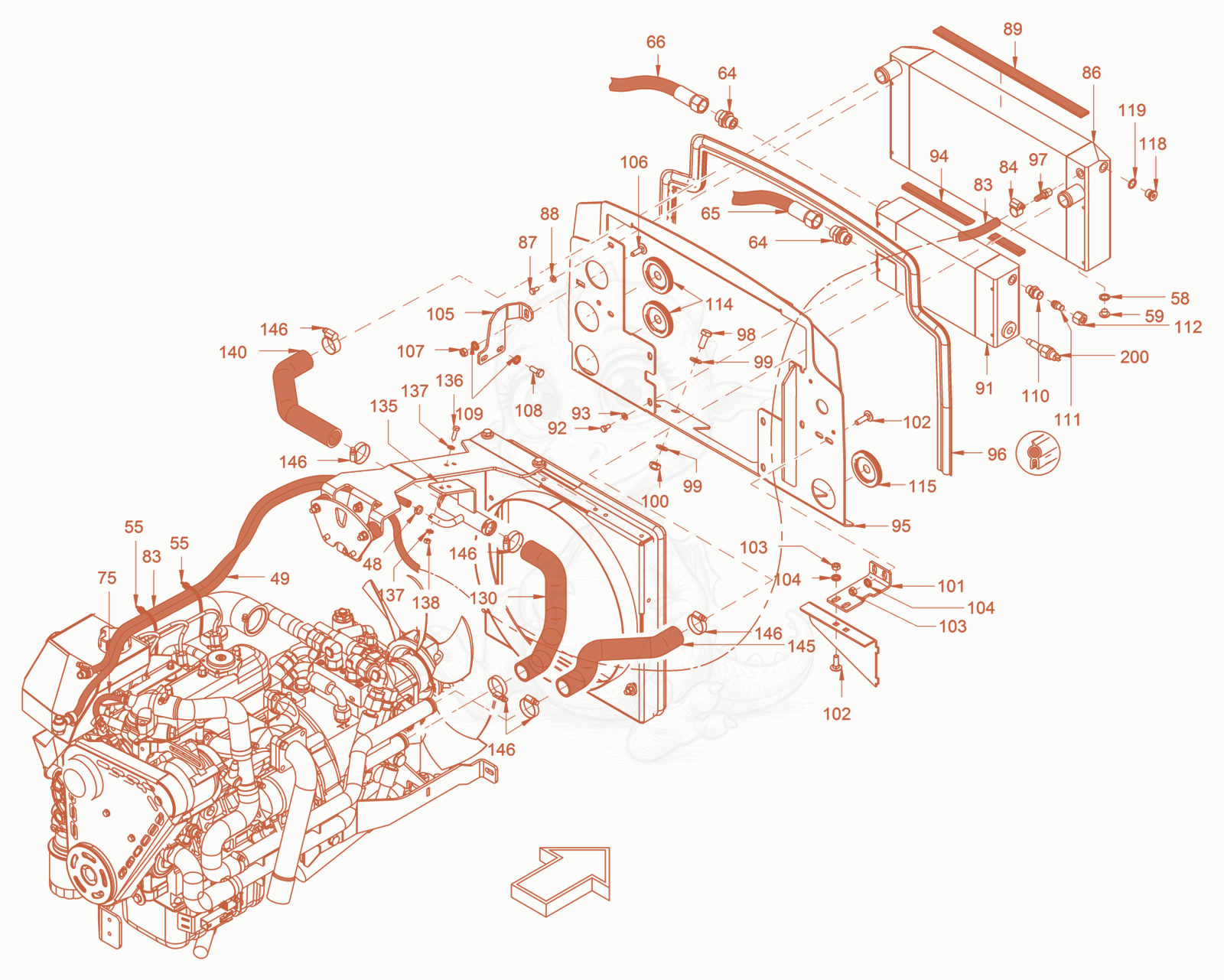

RD18-100C3 cooling Diagram
- Hose clip - 5100013367×2
- Cooling-water hose - 5100011673×0.75
- Wire fastener - 5100013573×4
- Sealing ring - 5100012492×1
- Screw plug - 5100013516×1
- Straight screwed socket - 5100013476×2
- 655100012751Not stockedFlexible tubing×1
- Flexible tubing - 5100011545×1
- Flexible tubing - 5100013640×0.13
- Cooling-water hose - 5100013217×1.1
- Hose clip - 5100013179×1
- Water cooler - 5100012311×1
- Hexagon screw - 5100012600×4
- Washer - 5100011636×4
- Sealing tape - 5100011866×0.4
- Oil cooler - 5100012310×1
- Hexagon screw - 5100012600×4
- Washer - 5100011636×4
- Sealing tape - 5100011866×0.3
- Console - 5100012248×1
- Sealing profile - 5100013642×1.4
- Hose nozzle - 5100012788×1
- Hexagon screw - 5100012517×4
- Locking washer - 5100012966×8
- Hexagon nut - 5100012546×4
- Metal plate - 5100012361×1
- Mushroom head screw - 5100012780×4
- Hexagon nut - 5100012546×4
- Locking washer - 5100012966×4
- Metal plate - 5100011944×1
- Mushroom head screw - 5100012780×1
- Hexagon nut - 5100012546×1
- Hexagon screw - 5100012517×2
- Locking washer - 5100012966×3
- Straight screwed socket - 5100013492×1
- Filler cap - 5100013556×1
- Cap nut - 5100012232×1
- Grommet - 5100011592×2
- Grommet - 5100011592×1
- Screw plug - 5100012444×2
- Sealing ring - 5100013000×2
- Cooling-water hose - 5100012352×1
- Cooling-water hose - 5100012349×1
- Hexagon screw - 5100012608×2
- Locking washer - 5100012965×4
- Hexagon nut - 5100012545×2
- Cooling-water hose - 5100012351×1
- Cooling-water hose - 5100012353×1
- Hose clip - 5100013452×6
- Thermosensor - 5100013385×1
