RD18-80

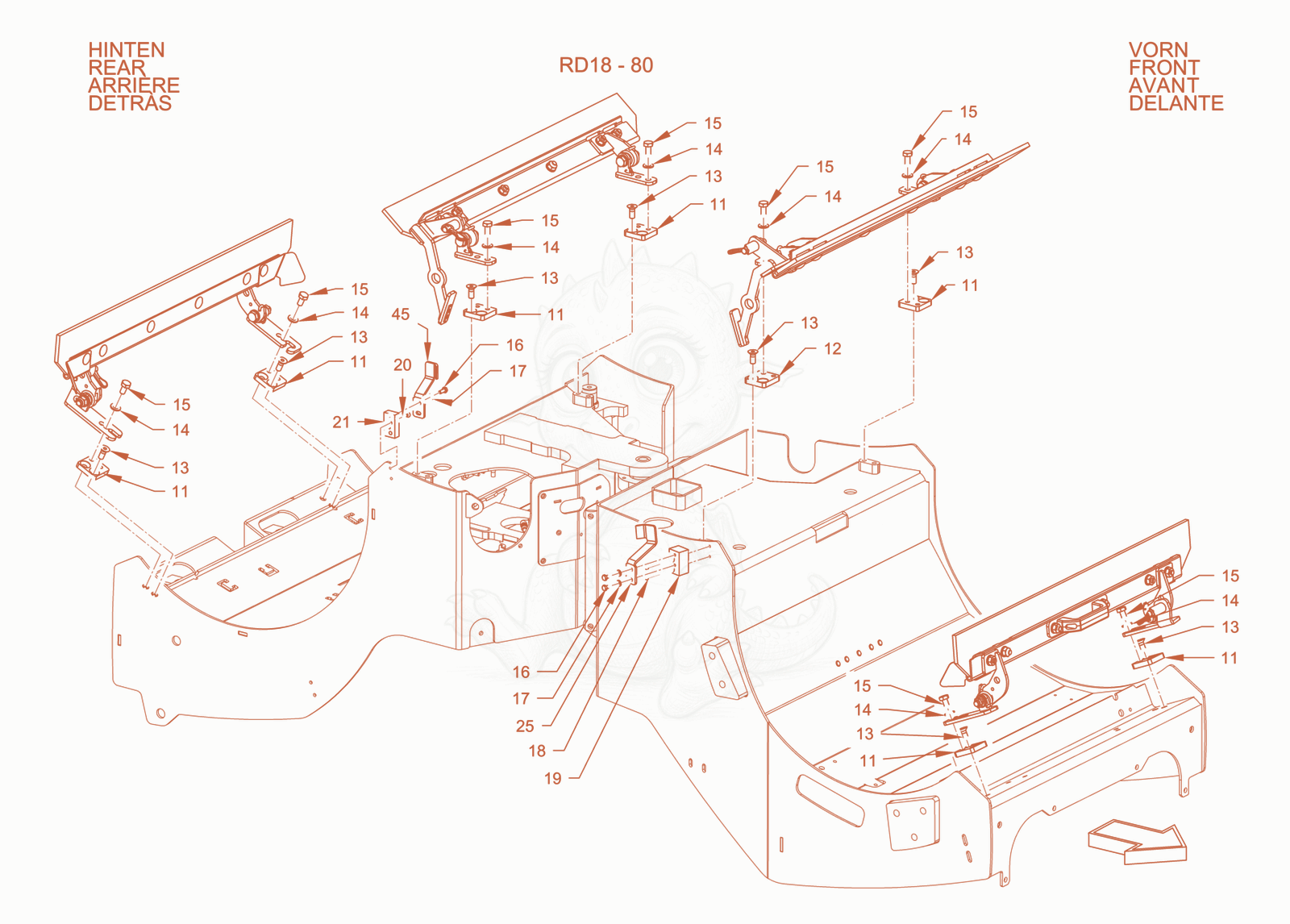

RD18-80 scraper (without track offset) Diagram

Exploded parts diagram of the scraper (without track offset) of a Wacker Neuson RD18-80, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 115100058623Not stocked
    metal plate×7
  • 125100058624Not stocked
    metal plate×1
  • 135100058625Not stocked
    countersunk screw×16
  • 145100012967
    $1.57
    Locking washer - 5100012967×16
  • 155100035014
    $1.57
    hexagon screw - 5100035014×16
  • 165100012572
    $20.09
    Hexagon screw - 5100012572×4
  • 175100012965
    $3.01
    Locking washer - 5100012965×4
  • 185100013561
    $1.57
    Countersunk screw - 5100013561×2
  • 195100013062
    $165.12
    Spacer block - 5100013062×1
  • 205100012665
    $1.49
    Countersunk screw - 5100012665×2
  • 215100013063
    $162.13
    Spacer block - 5100013063×1
  • 255100013058
    $70.18
    Holder-up - 5100013058×1
  • 455100013064
    $72.19
    Holder-up - 5100013064×1
