RD24-100c.3

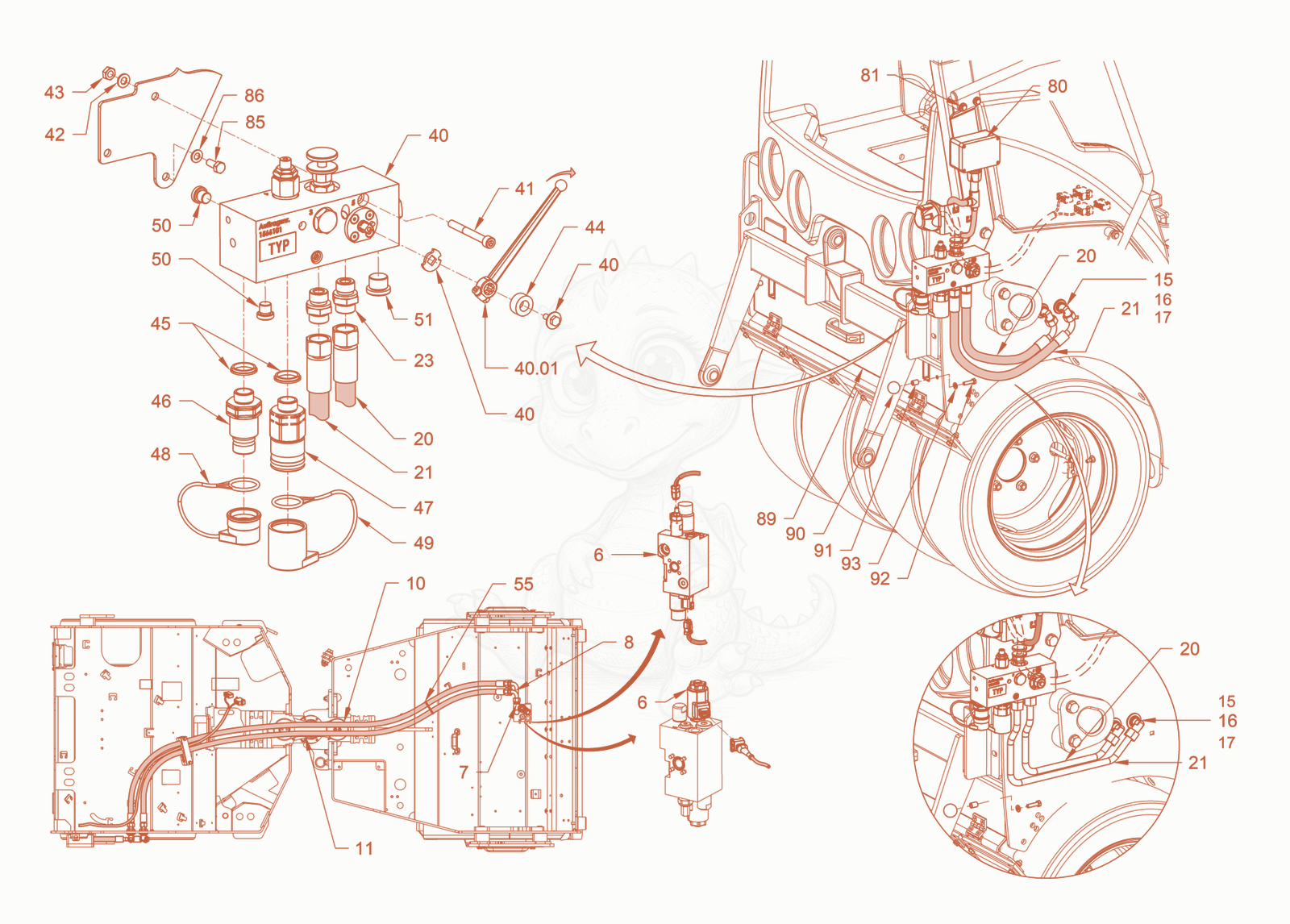

RD24-100C.3 hydraulic system (chip spreader) Diagram

Exploded parts diagram of the hydraulic system (chip spreader) of a Wacker Neuson RD24-100C.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 65100011987
    $865.82
    Directional valve - 5100011987Unknown×1
  • 65100052954
    $2,570.68
    control block - 5100052954Unknown×1
  • 65100063127Not stocked
    Valve block×1
  • 75100013603
    $11.44
    Straight screwed socket - 5100013603×2
  • 85100013329
    $59.53
    Intermediate piece - 5100013329×2
  • 105100011897Not stocked
    Flexible tubing×1
  • 115100013371Not stocked
    Flexible tubing×1
  • 155100013486
    $44.11
    Bulkhead elbow - 5100013486×2
  • 165100013488
    $4.76
    Hexagon nut - 5100013488×2
  • 175100013191
    $1.49
    Washer - 5100013191×4
  • 205100013097Not stocked
    Flexible tubing×1
  • 205100066885Not stocked
    pipe×1
  • 215100013096Not stocked
    Flexible tubing×1
  • 215100066886Not stocked
    pipe×1
  • 235100013476
    $13.09
    Straight screwed socket - 5100013476×2
  • 405100012993Not stocked
    Valve block×1
  • 405100011735Not stocked
    Hand lever×1
  • 415100013428Not stocked
    Cheese-head screw×2
  • 425100012966
    $1.57
    Locking washer - 5100012966×2
  • 435100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 445100013100Not stocked
    Bushing×1
  • 455100011468
    $11.69
    Sealing ring - 5100011468×2
  • 465100011771Not stocked
    Coupling plug×1
  • 475100011773Not stocked
    Coupling sleeve×1
  • 485100011774Not stocked
    Protecting cap×1
  • 495100011775Not stocked
    Protecting cap×1
  • 505100011608
    $6.37
    Screw plug - 5100011608×2
  • 515100011665
    $8.69
    Screw plug - 5100011665×1
  • 555100013429
    $1.18
    Wire fastener - 5100013429×30
  • 805100013074Not stocked
    Wire harness×1
  • 815100012977
    $4.15
    Stud bolt - 5100012977×2
  • 855100012517
    $1.57
    Hexagon screw - 5100012517×1
  • 865100012966
    $1.57
    Locking washer - 5100012966×1
  • 895100013196Not stocked
    Cover×1
  • 905100012527Not stocked
    Ball handle×2
  • 915100011508
    $69.75
    Bushing - 5100011508×2
  • 925100013510
    $1.57
    Hexagon screw - 5100013510×2
  • 935100012966
    $1.57
    Locking washer - 5100012966×2
