RD24-100c.3

RD24-100C.3 electrical system Diagram

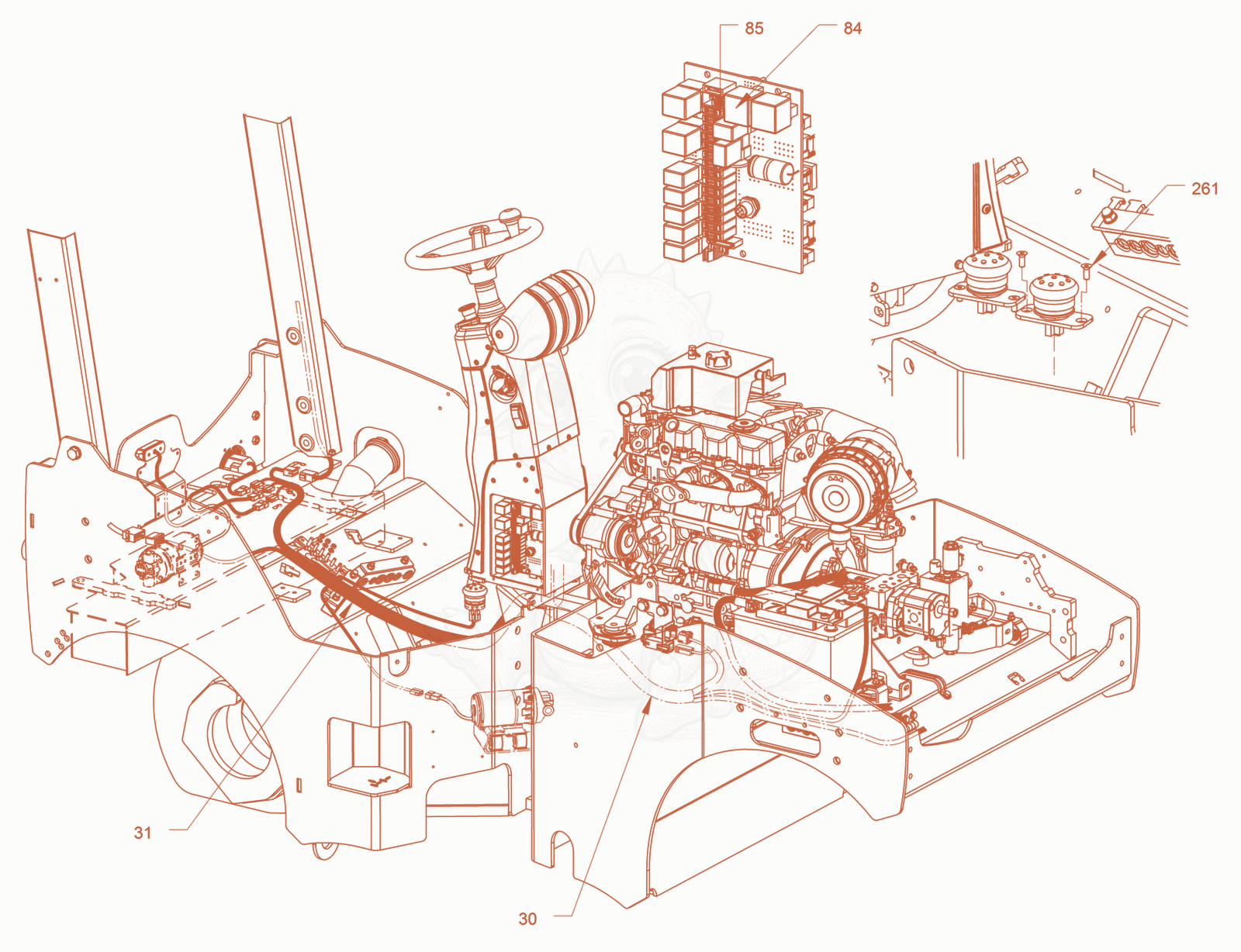

Exploded parts diagram of the electrical system of a Wacker Neuson RD24-100C.3, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 305100012766
    $1,772.47
    Wire harness (front frame) - 5100012766Unknown×1
  • 305100053420Not stocked
    wire harness front frame×1
  • 315100012767
    $1,023.94
    Wire harness (rear frame) - 5100012767×1
  • 845100011616
    $67.11
    Relay - 5100011616×1
  • 855100013580
    $1.83
    Blade fuse - 5100013580×1
  • 2615100012890
    $1.57
    Countersunk screw - 5100012890×2
