RD24-100 O Tandem Roller

RD24-100O operator's seat withseat heating Diagram

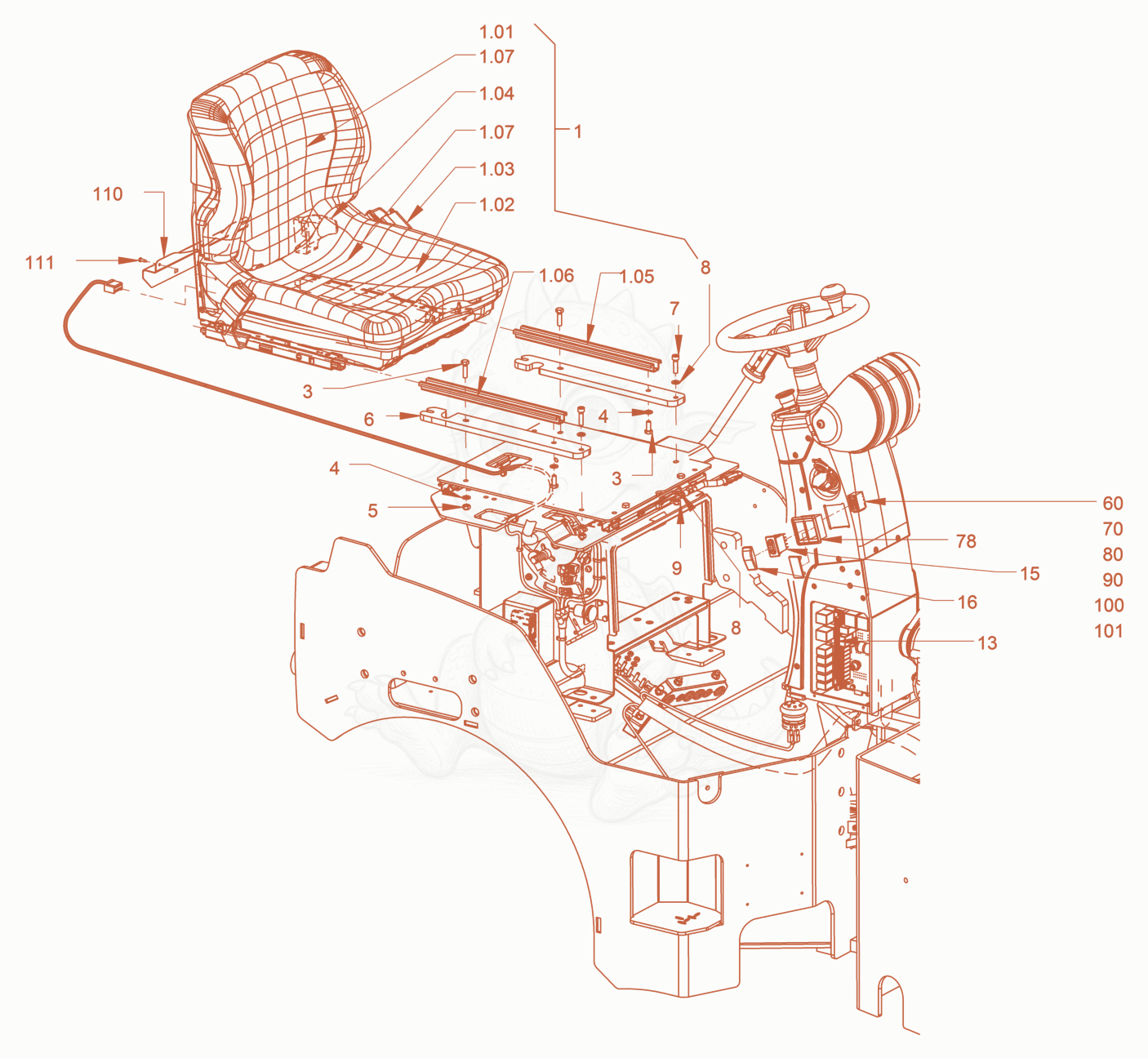

Exploded parts diagram of the operator's seat withseat heating of a Wacker Neuson RD24-100O, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100029596
    $4,885.58
    driver's seat - 5100029596×1
  • 15100011615
    $35.52
    Handle - 5100011615×1
  • 15100013067
    $757.58
    Adjustment bar - 5100013067×1
  • 15100013083
    $655.33
    Adjustment bar - 5100013083×1
  • 15100024343Not stocked
    cushion set×1
  • 15100024920
    $608.92
    Seat contact switch - 5100024920×1
  • 15100029585Not stocked
    backrest cushion, imi. leather×1
  • 15100033202
    $318.41
    lap belt - 5100033202×1
  • 35100012613
    $1.57
    Hexagon screw - 5100012613×4
  • 45100012966
    $1.57
    Locking washer - 5100012966×4
  • 55100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 65100012015
    $224.87
    Metal plate - 5100012015×2
  • 75100013510
    $1.57
    Hexagon screw - 5100013510×2
  • 85100012966
    $1.57
    Locking washer - 5100012966×4
  • 95100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 135100013580
    $1.83
    Blade fuse - 5100013580×1
  • 155100011947Not stocked
    Switch×1
  • 165100011947Not stocked
    Switch×1
  • 605100024344Not stocked
    central plug×1
  • 705100029597Not stocked
    flat plug sleeve×2
  • 785100011595
    $22.67
    Frame - 5100011595×2
  • 805100024345Not stocked
    connection plug, 1-pole×1
  • 905100029598Not stocked
    flat plug sleeve×1
  • 1005100033203Not stocked
    connector housing×1
  • 1015100025825
    $2.27
    flat-pin plug - 5100025825×1
  • 1115100011634
    $1.57
    Sheet metal screw - 5100011634×2
