RD24-100 O Tandem Roller

RD24-100OUS main frame and assemblies Diagram

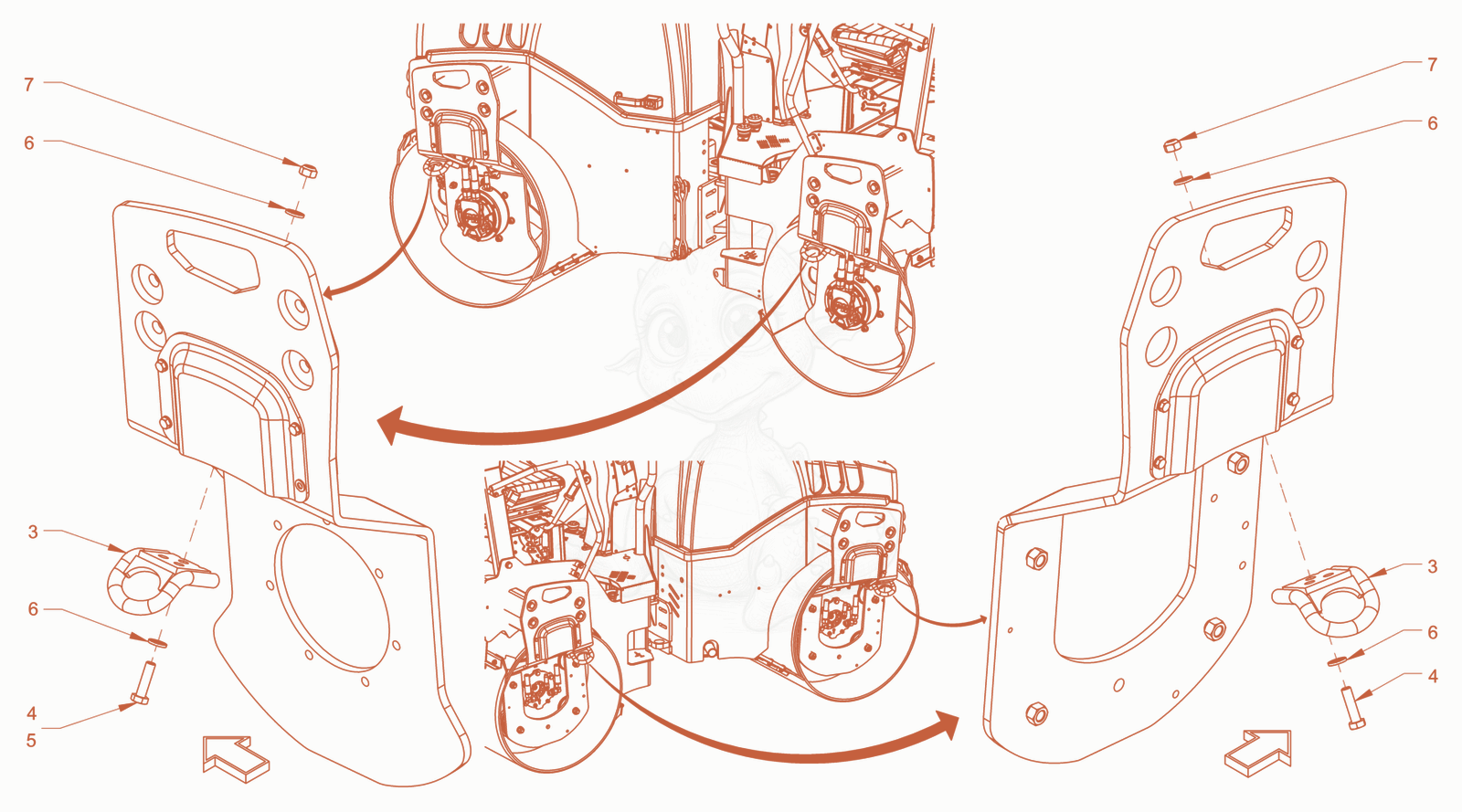

Exploded parts diagram of the main frame and assemblies of a Wacker Neuson RD24-100OUS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35100052880Not stocked
    loading loop×4
  • 45100011612
    $3.23
    Hexagon screw - 5100011612×12
  • 55100029558
    $4.15
    hexagon screw - 5100029558×3
  • 65100012968
    $1.57
    Locking washer - 5100012968×24
  • 75100035091
    $2.44
    safety nut - 5100035091×12
