RD27-100, ROLLER

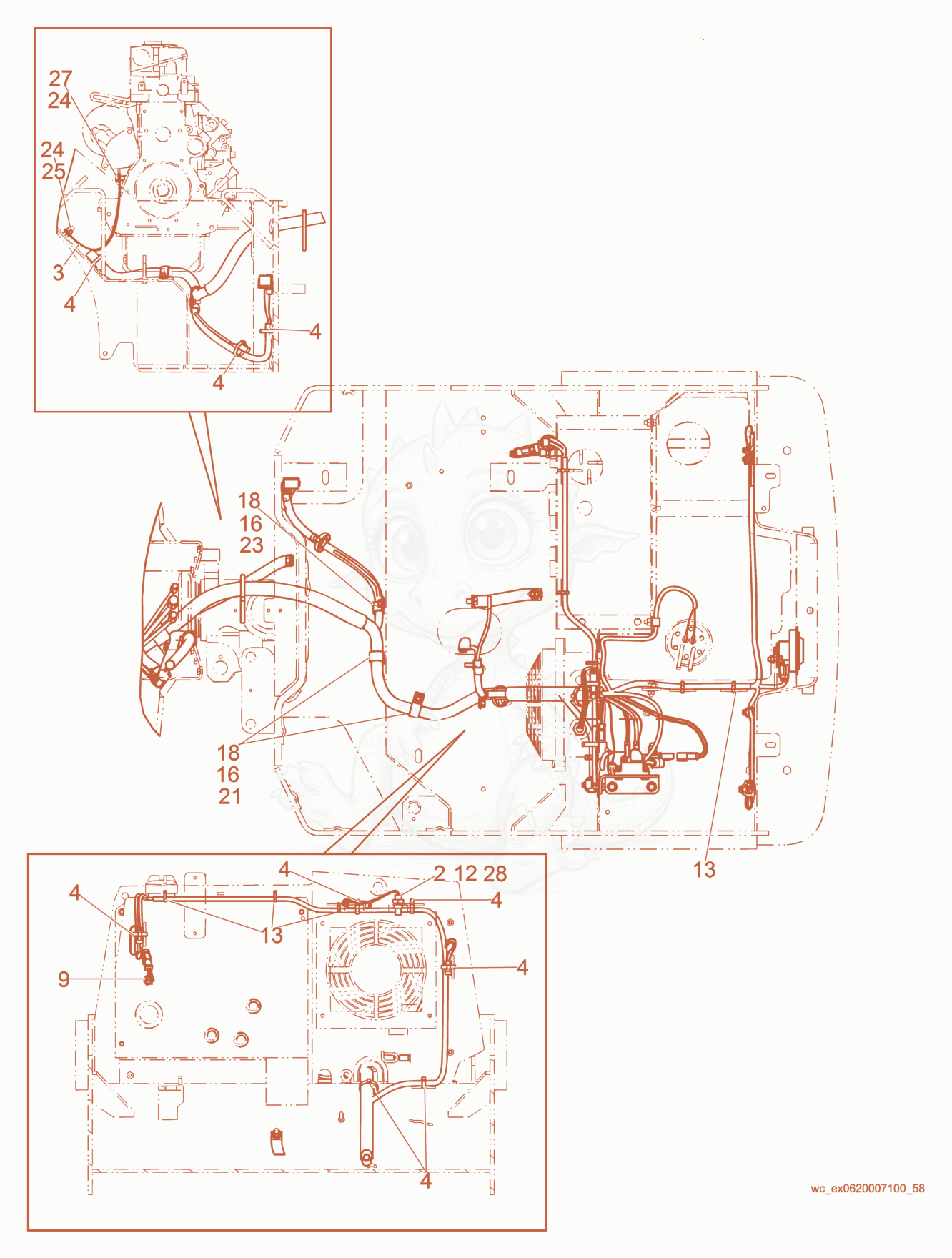

RD27-100 Wiring Diagram- Hydraulic Temp SensorEsquema de Distribución - Unid Diagram
- SWITCH-TEMPERATURE - 5000161873×1
- WIRE-GROUND - 5000161891×1
- STRAP-MOUNTING - 5000161969×9
- SWITCH-TEMPERATURE - 5000161749×1
- O-ring - 5000161877×1
- STRAP-MOUNTING - 5000161879×5
- NUT M8 X 1.25 - 5000161895×3
- washer - 5000161907×6
- CLIP-CABLE - 5000161965×2
- CLIP-CABLE - 5000161995×1
- washer - 5000162006×3
- NUT M10 X 1.5 - 5000162008×3
- BOLT M10 X 1.5 - 5000162016×1
- CONNECTOR-RECEPTACLE - 5000162312×1
