RD27-100 ROLLER,AU W/TRACT CTL

RD27-100 Oil Pan Diagram

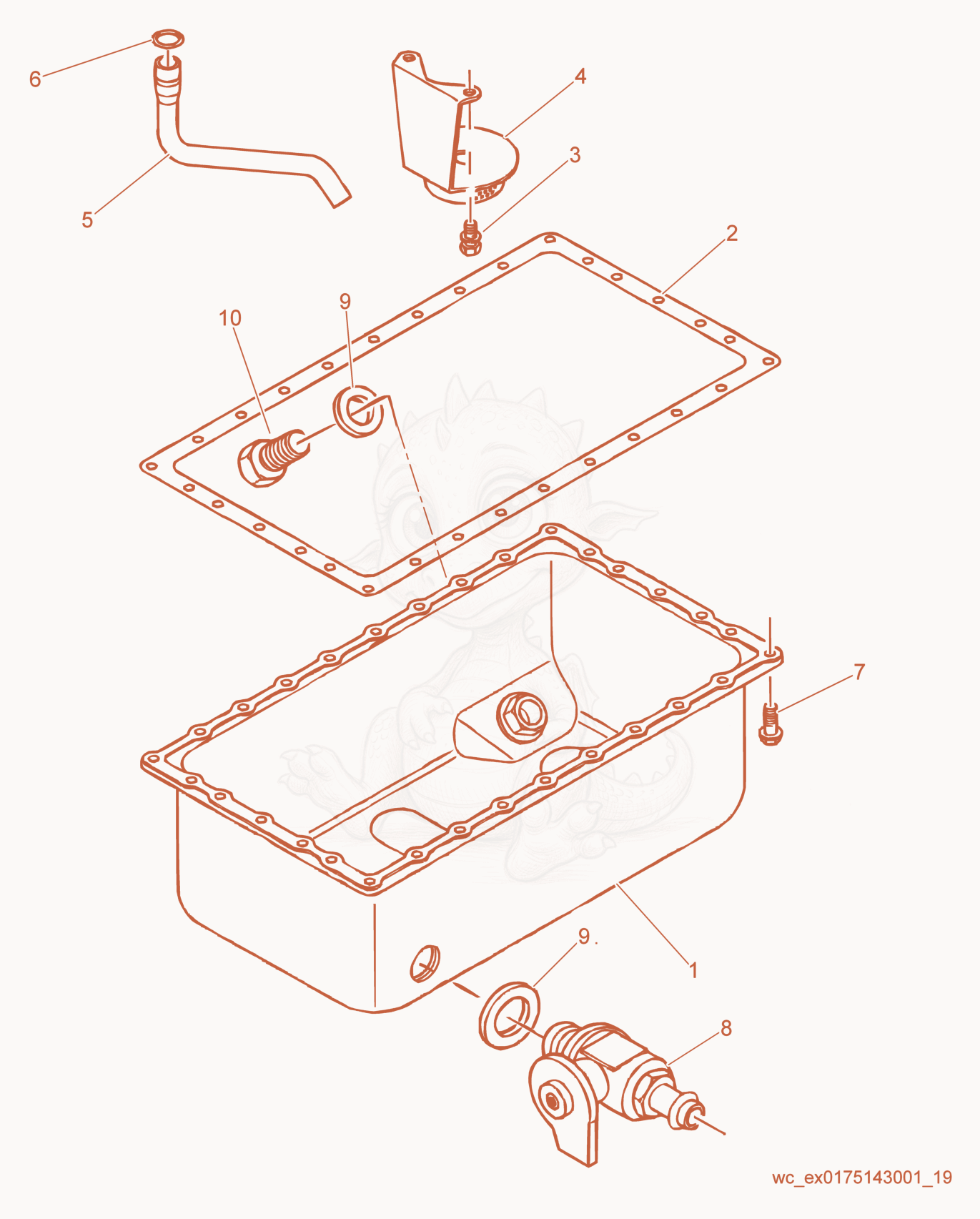

Exploded parts diagram of the Oil Pan of a Wacker Neuson RD27-100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000217328Not stocked
    Oil pan×1
  • 25000161175
    $76.53
    GASKET-OIL PAN - 5000161175×1
  • 35000160796
    $1.96
    Screw - 5000160796×2
  • 45000217358Not stocked
    Strainer×1
  • 55000217359Not stocked
    Oil pipe×1
  • 65000161146
    $6.67
    O-Ring - 5000161146×1
  • 75000160780
    $1.38
    Screw - 5000160780×26
  • 85000215956
    $146.55
    Valve - 5000215956×1
  • 95000161115
    $13.46
    washer - 5000161115×2
  • 105000160781
    $8.58
    Screw - 5000160781×1
