RD27-120

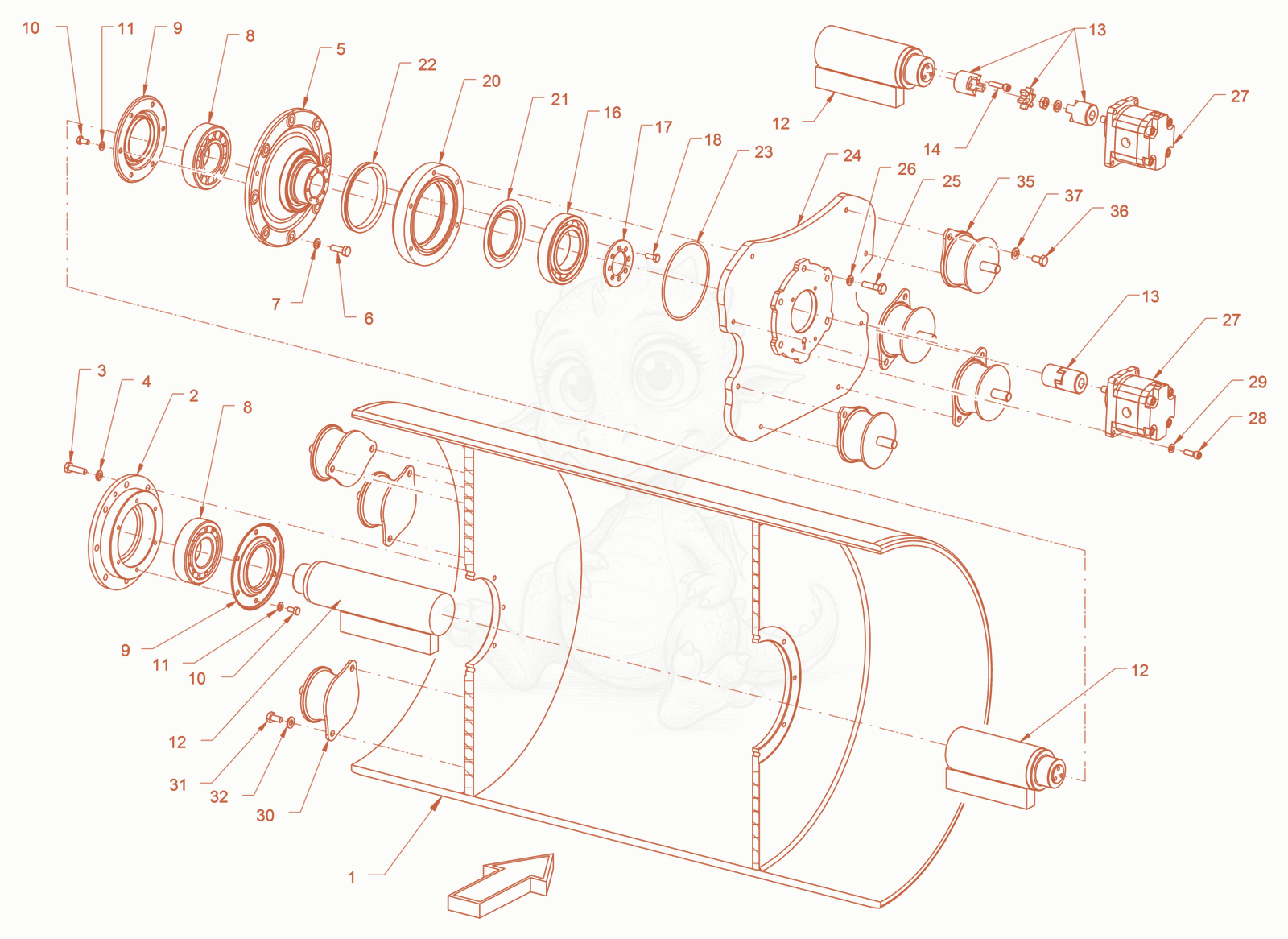

RD27-120.3 smooth roller drum with vibrator Diagram
- Roller drum - 5100011993×1
- Flange - 5100012002×1
- Hexagon screw - 5100012522×12
- Locking washer - 5100012967×12
- Flange - 5100012315×1
- Hexagon screw - 5100012522×12
- Locking washer - 5100012967×12
- Cylindrical roller bearing - 5100012226×2
- Cover - 5100012003×2
- Hexagon screw - 5100012516×12
- Locking washer - 5100012966×12
- Unbalance shaft - 5100012030×1
- Coupling - 5100012088×1
- Cheese-head screw - 5100013511×3
- Hexagon nut - 5100011646×1
- Grooved ball bearing - 5100012423×1
- Cover - 5100012318×1
- Hexagon screw - 5100012516×8
- Flange - 5100012004×1
- Nilos ring - 5100012246×1
- Sealing ring - 5100012247×1
- O-ring seal - 5100011675×1
- Driver - 5100012005×1
- Hexagon screw - 5100012524×5
- Locking washer - 5100012967×5
- Gear motor - 5100013043×1
- Cheese-head screw - 5100012508×4
- Locking washer - 5100012966×4
- Rubber metal buffer - 5100011787×6
- Hexagon screw - 5100012522×12
- Locking washer - 5100012967×12
- Rubber metal buffer - 5100011787×4
- Hexagon screw - 5100012521×8
- Locking washer - 5100012967×8
