RD27-120 ROLLER,EU

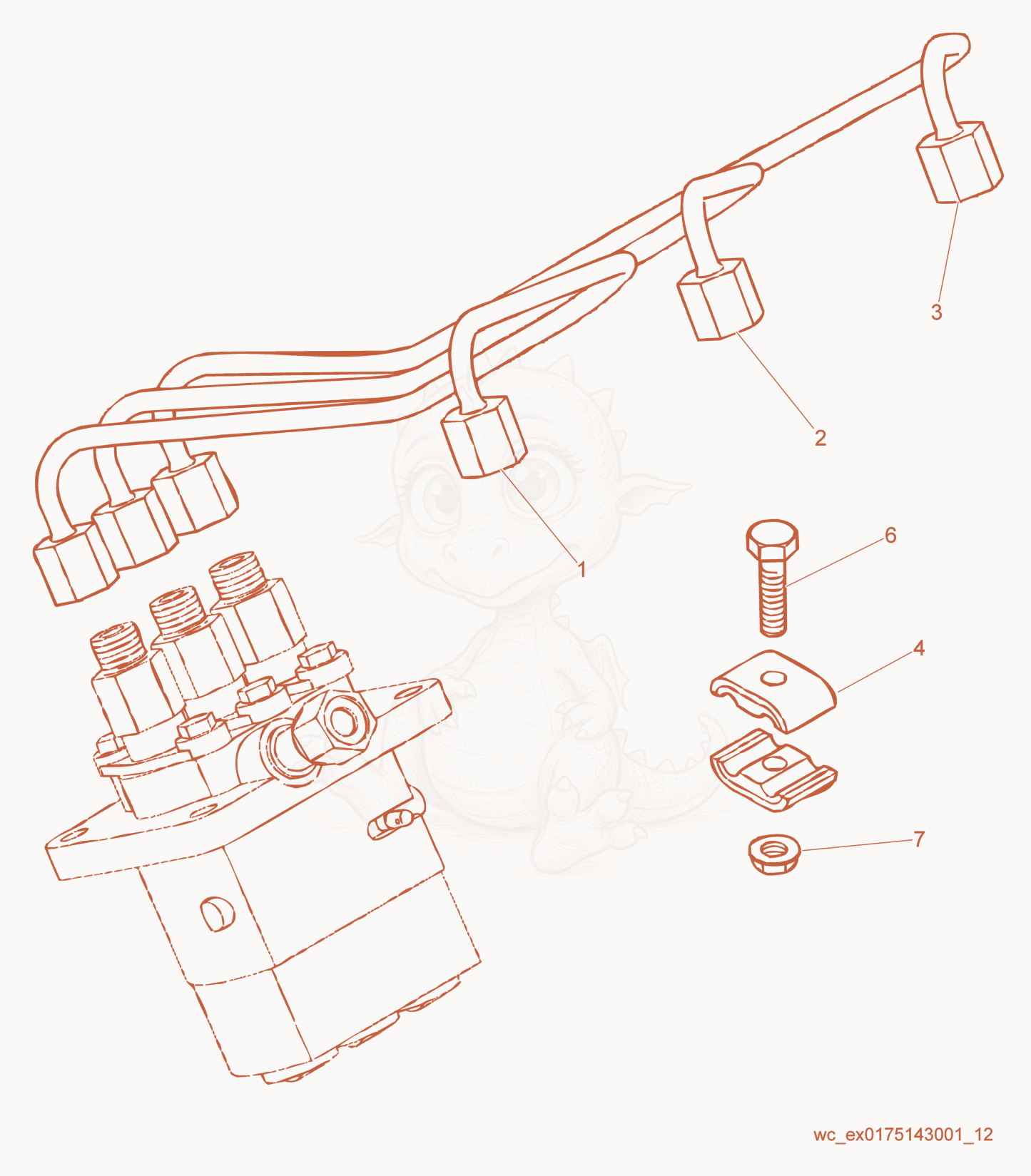

RD27-120 Fuel Pipes Diagram

Exploded parts diagram of the Fuel Pipes of a Wacker Neuson RD27-120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000161403
    $97.15
    PIPE-INJECTION,FUEL - 5000161403×1
  • 25000161404
    $86.80
    PIPE-INJECTION,FUEL - 5000161404×1
  • 35000161405
    $86.80
    PIPE-INJECTION,FUEL - 5000161405×1
  • 45000217392Not stocked
    Hose clamp×4
  • 65000160786
    $1.88
    Screw - 5000160786×2
  • 75000161109
    $0.87
    Nut - 5000161109×2
