RD27-120 ROLLER,EU

RD27-120 Alternator cpl. Diagram

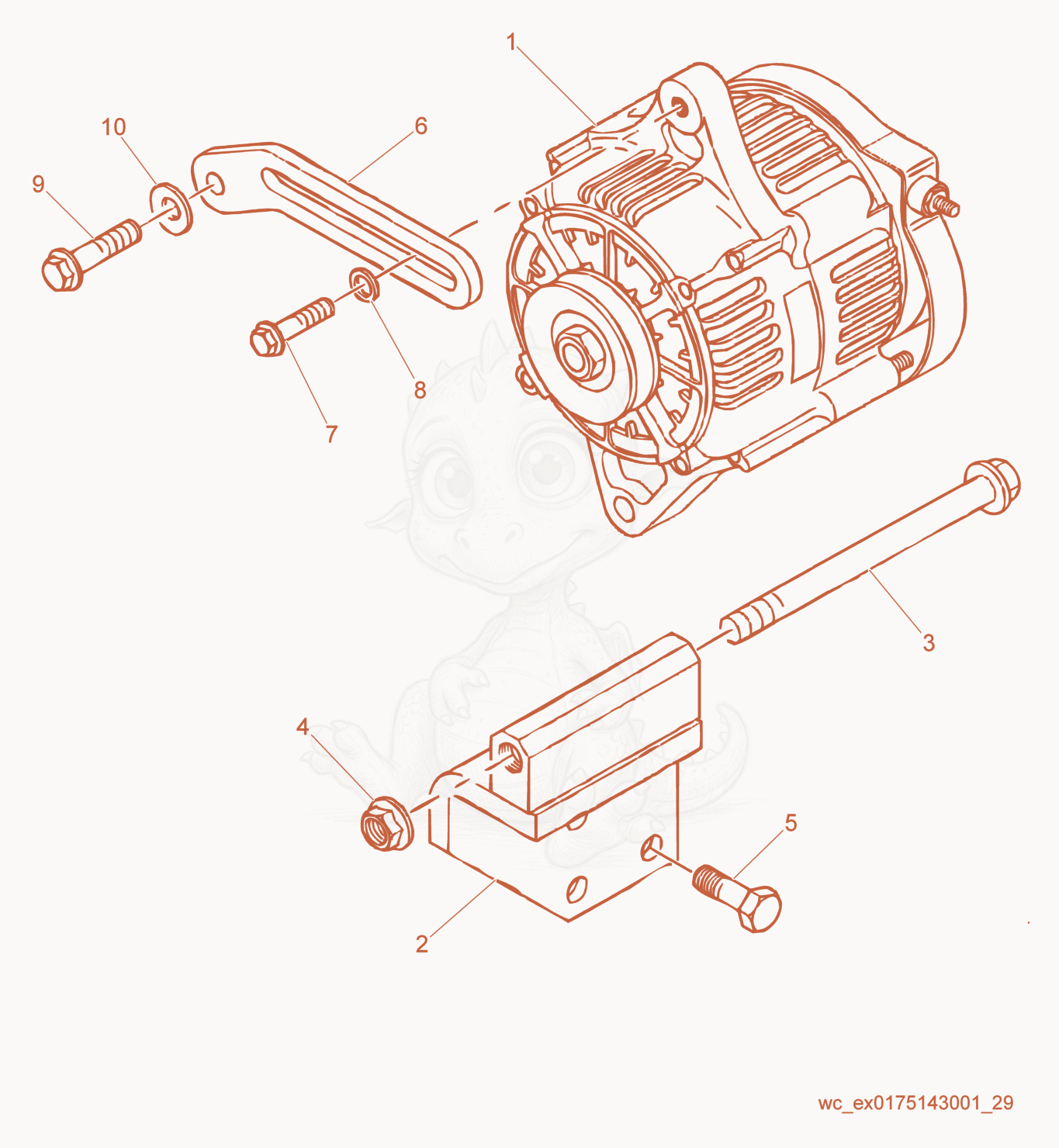

Exploded parts diagram of the Alternator cpl. of a Wacker Neuson RD27-120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000217375Not stocked
    Alternator cpl.×1
  • 25000217403Not stocked
    Alternator bracket×1
  • 35000217396Not stocked
    Screw×1
  • 45000161110
    $1.24
    Nut - 5000161110×1
  • 55000161091
    $4.58
    Screw - 5000161091×3
  • 65000161449
    $26.69
    Lever - 5000161449×1
  • 75000161092
    $1.88
    Screw - 5000161092×1
  • 85000217316Not stocked
    Washer×1
  • 95000161092
    $1.88
    Screw - 5000161092×1
  • 105000161116
    $2.01
    Washer - 5000161116×1
