RD27-120 ROLLER

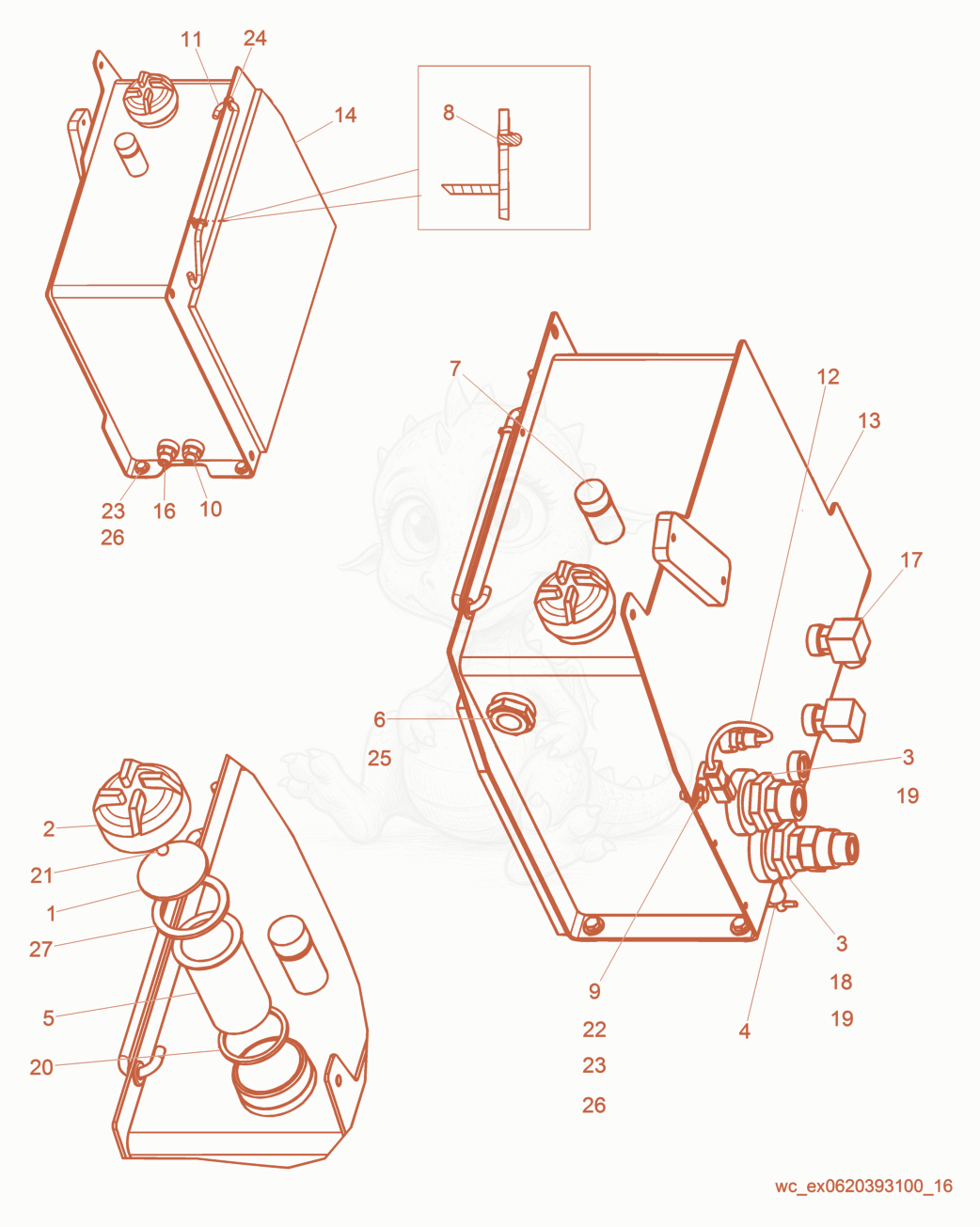

RD27-120 Hydraulic Tank Diagram
- PLATE-PRESSURE - 5000161920×1
- CAP-FILTER,HYDRAULIC - 5000161968×1
- STRAINER - 5000161987×2
- VALVE-SHUTOFF - 5000161991×1
- STRAINER - 5000162043×1
- GAUGE - 5000162061×1
- BREATHER-TANK,HYDRAULIC - 5000161545×1
- Rivet - 5000171964×1
- CLIP-WIRING HARNESS - 5000161584×1
- adapter - 5000174157×1
- ROD-DOOR PROP - 5000161725×1
- SWITCH-TEMPERATURE - 5000161749×1
- TANK-HYDRAULIC,COMPLETE - 5000174273×1
- Insulation - 5000174302×1
- connector cpl. - 5000172002×1
- FITTING-SEAL 3/4-16 - 5000161938×1
- O-ring - 5000161934×1
- O-ring - 5000161877×1
- FITTING-ELBOW,90 DEG - 5000161606×2
- FITTING-REDUCER - 5000174152×1
- connector cpl. - 5000174155×2
- HOSE M14 - 5000174357×1
- connector cpl. - 5000174401×1
- GASKET - 5000161874×1
- ball - 5000161884×1
- NUT M8 X 1.25 - 5000161895×1
- washer - 5000161907×6
- grommet - 5000161927×1
- O-ring - 5000161971×1
- BOLT M8 X 1.25 - 5000162015×5
- GASKET - 5000162042×1
