RD27-120 ROLLER,EU W/TRACT CTL

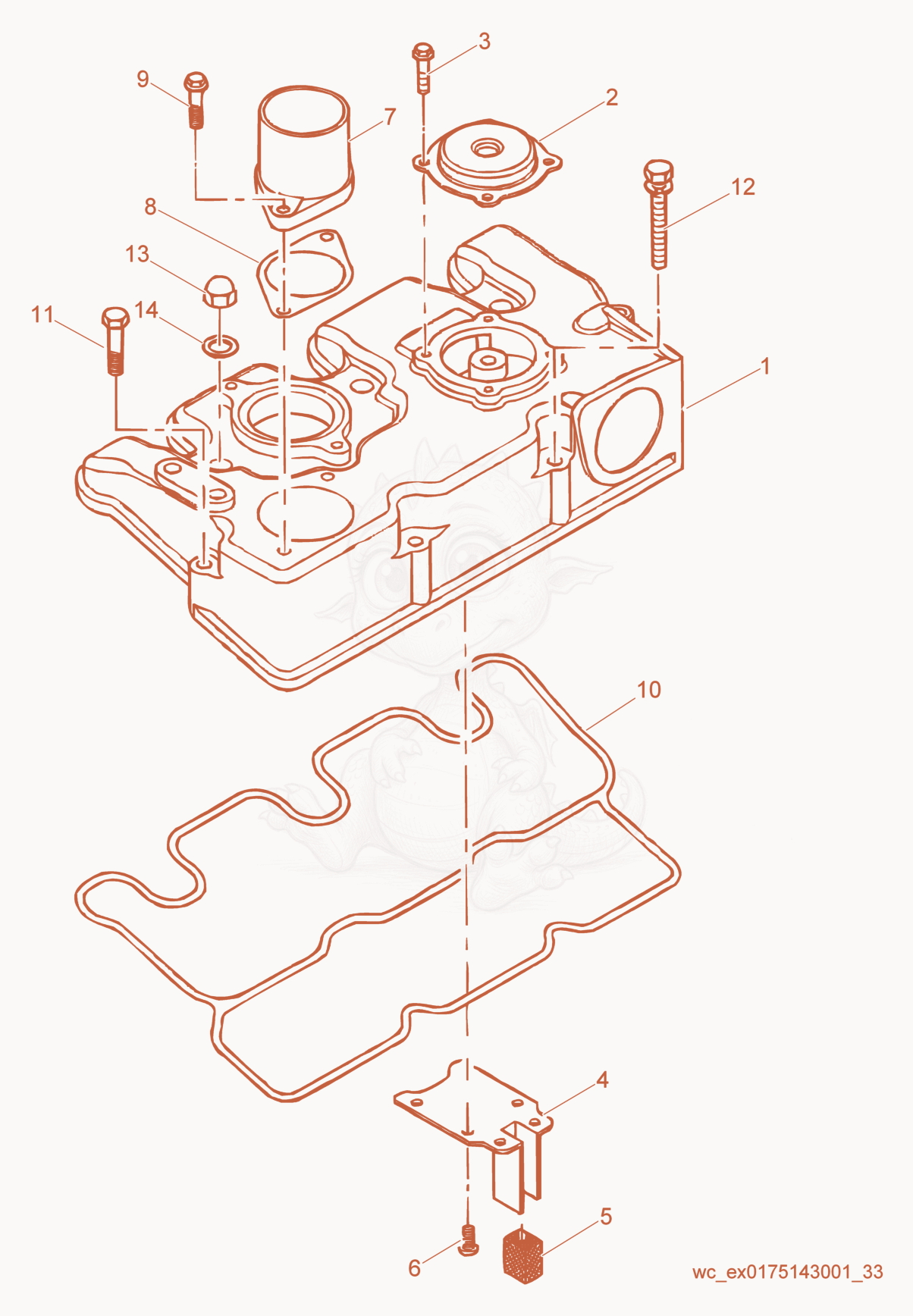

RD27-120 Cylinder Head Cover Diagram

Exploded parts diagram of the Cylinder Head Cover of a Wacker Neuson RD27-120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000217331
    $693.02
    Cylinder head cover cpl. - 5000217331×1
  • 25000161170
    $46.28
    VALVE-BREATHER - 5000161170×1
  • 35000160794
    $3.50
    BOLT-METRIC - 5000160794×4
  • 45000161172
    $209.21
    PLATE-RETAINING - 5000161172×1
  • 55000161171
    $7.69
    FILTER-ELEMENT - 5000161171×1
  • 65000161100
    $3.12
    Screw - 5000161100×6
  • 75000217353Not stocked
    Air intake tube×1
  • 85000217355Not stocked
    Exhaust manifold gasket×1
  • 95000160797
    $1.88
    Screw - 5000160797×2
  • 105000161182
    $86.78
    GASKET-VALVE COVER - 5000161182×1
  • 115000161086
    $2.56
    Screw - 5000161086×2
  • 125000217303Not stocked
    Screw×2
  • 135000161112
    $2.52
    Nut - 5000161112×3
  • 145000161420
    $10.27
    Washer - 5000161420×4
