RD27-120 ROLLER,AU W/TRACT CTL

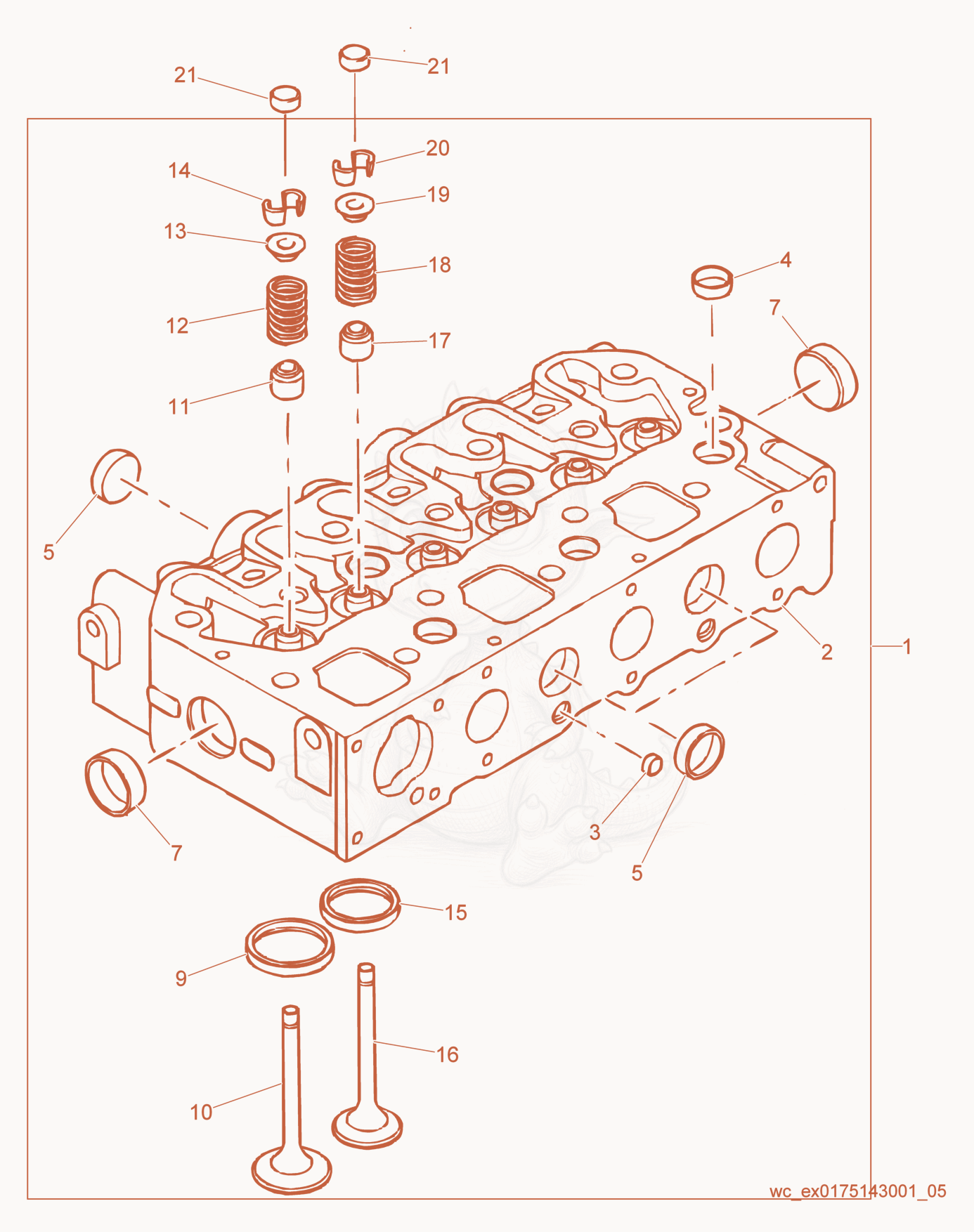

RD27-120 Cylinder Head Diagram

Exploded parts diagram of the Cylinder Head of a Wacker Neuson RD27-120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000217330Not stocked
    Cylinder head cpl.×1
  • 35000217319Not stocked
    Plug×2
  • 45000217321Not stocked
    Cap×5
  • 55000161155
    $8.71
    Plug - 5000161155×3
  • 65000161365
    $36.59
    VALVE-INLET - 5000161365×3
  • 75000217323Not stocked
    Cap×2
  • 95000217402Not stocked
    Valve seat gasket×3
  • 105000217337Not stocked
    Intake valve×3
  • 115000161374
    $13.40
    SEAL-VALVE STEM,INLET - 5000161374×3
  • 125000161477
    $21.88
    SPRING-VALVE - 5000161477×3
  • 135000161367
    $20.59
    CAP-VALVE - 5000161367×3
  • 145000161369
    $1.77
    RETAINER-VALVE - 5000161369×6
  • 155000217401Not stocked
    Valve seat gasket×3
  • 165000217338Not stocked
    Exhaust valve×3
  • 175000161373
    $13.40
    SEAL-VALVE STEM,EXHAUST - 5000161373×3
  • 185000161477
    $21.88
    SPRING-VALVE - 5000161477×3
  • 195000161367
    $20.59
    CAP-VALVE - 5000161367×3
  • 205000161369
    $1.77
    RETAINER-VALVE - 5000161369×6
  • 215000161368
    $5.46
    Cap - 5000161368×6
