RD27-120 ROLLER BASIC T4F

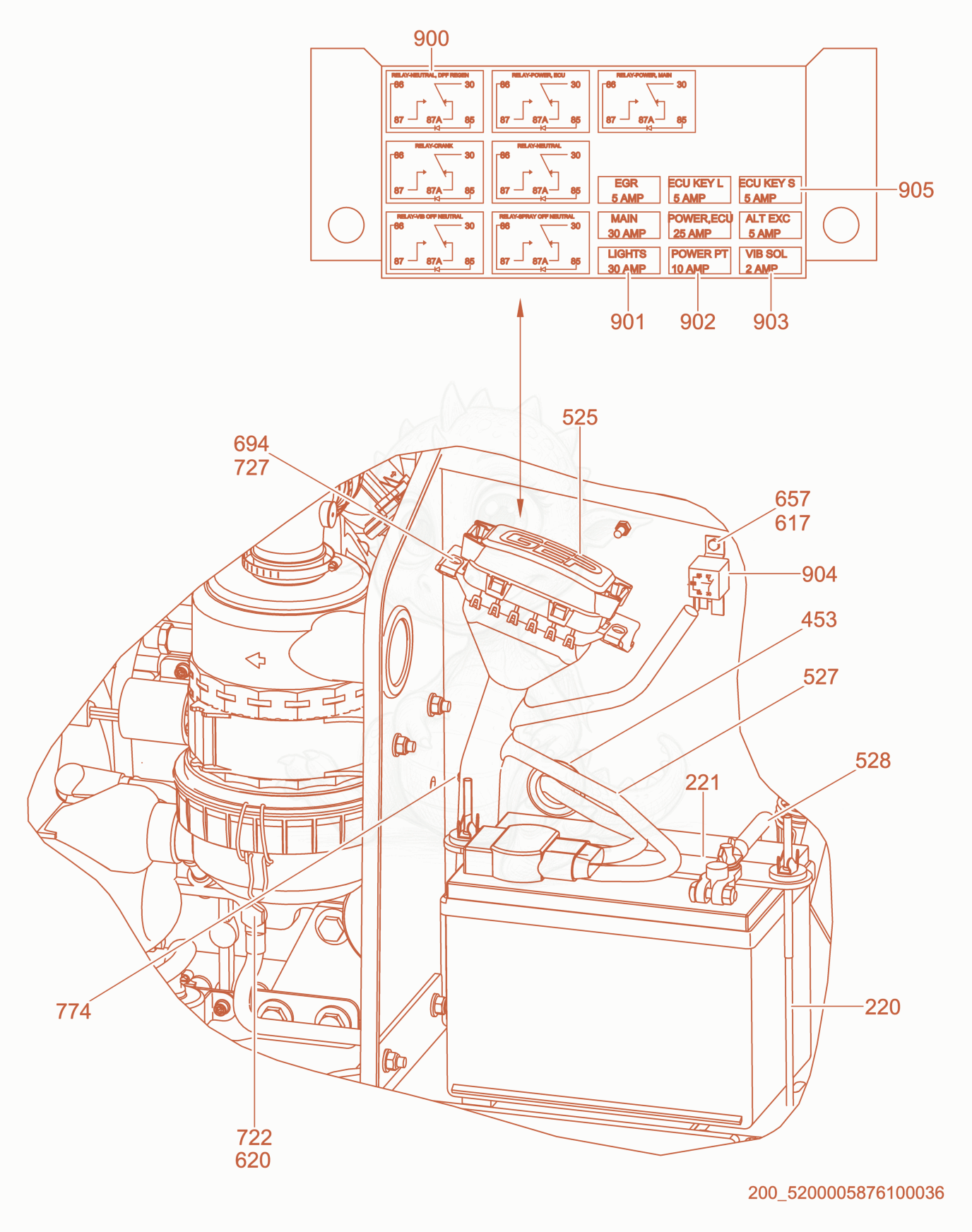

RD27-120 Wiring Harness/Battery T4F Diagram

Exploded parts diagram of the Wiring Harness/Battery T4F of a Wacker Neuson RD27-120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2205200002491
    $3.10
    Bolt-J .25-10,Battery - 5200002491×2
  • 2215000163633
    $57.66
    PLATE-BATTERY P-5000112007 - 5000163633×1
  • 4535200002733
    $1.42
    GROMMET-1.25IDX1.875ODX.125GW - 5200002733×1
  • 5255200013166Not stocked
    Wiring harness×1
  • 5275200003557
    $48.76
    Cable-Battery,Positive - 5200003557×1
  • 5285200003558
    $42.26
    Cable-Battery,Negative - 5200003558×1
  • 6175000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×1
  • 6205000174706
    $0.51
    SCREW M10 X 1.25 X 20 HX.HD - 5000174706×1
  • 6575000011476
    $0.09
    SCREW M5 X 16 HX.HD. - 5000011476×2
  • 6945000014663
    $0.06
    SCREW M6 X 16 HX.HD. - 5000014663×3
  • 7225000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×1
  • 7275000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×2
  • 7745000047388
    $0.18
    CABLE-TIE 7.6X356MM,NO MNT,BLK - 5000047388×1
  • 9005200023751Not stocked
    Relay×7
  • 9015000119069
    $0.75
    FUSE 30A MINI BLADE TYPE - 5000119069×2
  • 9025000161917
    $0.61
    FUSE-10 AMP - 5000161917×1
  • 9035200023356Not stocked
    Fuse×1
  • 9045000154386
    $16.23
    RELAY W/DIODE - 5000154386×1
  • 9055200025183Not stocked
    Fuse×5
