RD27-120 ROLLER BASIC T4F

RD27-120 Drum cpl. Diagram

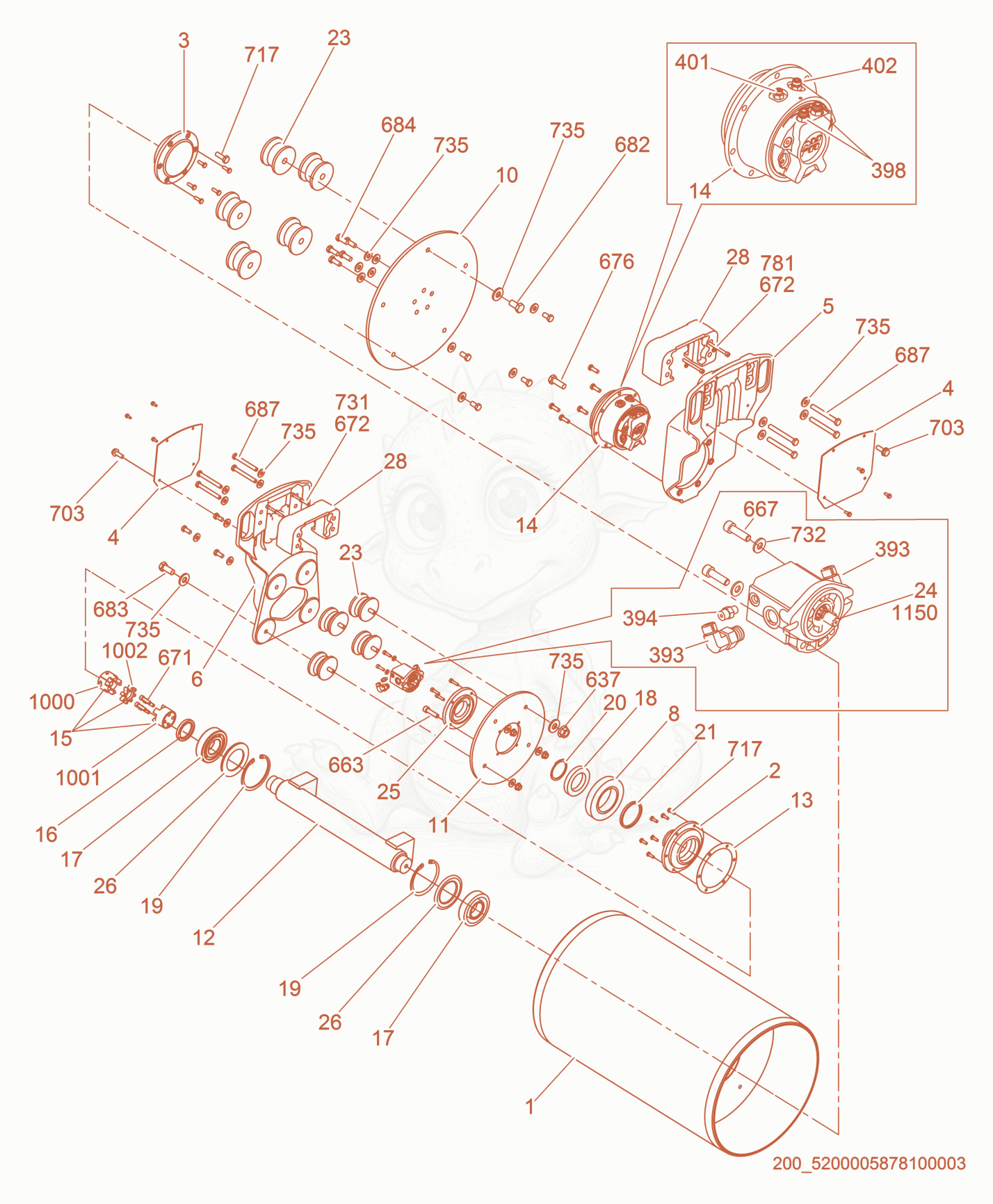

Exploded parts diagram of the Drum cpl. of a Wacker Neuson RD27-120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000189408
    $6,982.75
    Drum-1200MM - 5000189408×2
  • 25000189429
    $1,366.60
    Cover-Drum P-5000176420 - 5000189429×2
  • 35000189430
    $121.05
    Cover-Drum Drive P-5000176420 - 5000189430×2
  • 45200002061
    $1,128.85
    COVER-DRUM SUPPORT P-5000176420 - 5200002061×4
  • 55200005365
    $667.58
    Bracket-Drum Support,1000 P-5000176420 - 5200005365×2
  • 65200005363
    $678.62
    Bracket-Drum Support,1000 P-5000176420 - 5200005363×2
  • 85000189416
    $179.78
    Housing-Bearing P-5000176420 - 5000189416×2
  • 105200010296Not stocked
    Drive plate×2
  • 115200002060
    $414.47
    PLATE-EXCITER SHOCKMOUNT P-5000176420 - 5200002060×2
  • 125000189406
    $2,225.23
    ECCENTRIC-EXCITER ASSY,1200MM - 5000189406×2
  • 135200002062
    $52.17
    SHIM-DRUM - 5200002062×2
  • 145000163364
    $5,482.00
    MOTOR-DRIVE,RD16, BLACK - 5000163364×2
  • 155000189414
    $387.24
    Coupler Assy-Rotex - 5000189414×2
  • 165000189413
    $10.64
    Seal-Shaft 50 x 68 x 8 - 5000189413×2
  • 175000189412
    $161.08
    Bearing-Cyl. Roller,C4 - 5000189412×4
  • 185000189418
    $188.63
    Bearing-Radial Ball,6019-2RS1/C4 - 5000189418×2
  • 195000067063
    $5.86
    RET.RING-INT 125MMX4MM, - 5000067063×4
  • 205200002063
    $5.16
    Ret.Ring-Ext, 95MMx3.15MM - 5200002063×2
  • 215200001999
    $33.21
    SEAL-V RING 120 X 10, VR1 - 5200001999×2
  • 235000189420
    $146.14
    Shockmount-Drum M16 - 5000189420×18
  • 245000182917
    $657.92
    MOTOR-EXCITER - 5000182917×2
  • 255000189421
    $1,042.20
    Mount-Exciter Motor P-5000176420 - 5000189421×2
  • 265200007318
    $122.87
    SEAL-RING - 5200007318×4
  • 285200009395
    $204.28
    Spacer-Drum,Machining P-5000176420 - 5200009395×4
  • 3935000081340
    $24.83
    FITTING-HYDRAULIC,ELBOW,90 - 5000081340×4
  • 3945000111282
    $3.22
    FITTING-HYD,SAE #4 - 5000111282×2
  • 3985000081583
    $4.00
    FITTING #8 - 5000081583×2
  • 4015000112405
    $5.40
    FITTING-HYD. 4-6 ST. - 5000112405×1
  • 4025000164189
    $13.68
    FITTING-ST-#6 ORFS-#5 ORB - 5000164189×1
  • 6375000164046
    $0.86
    NUT-M16,HX.HD,FLG ZN 8.8 w/Precote 80 - 5000164046×8
  • 6635200017532Not stocked
    Screw×4
  • 6715000011541
    $1.06
    SCREW M8 X 30 SOC.HD. - 5000011541×8
  • 6725000037090
    $2.00
    SCREW M10 X 100 SOC.HD,8.8 ZINC - 5000037090×8
  • 6765000029036
    $11.36
    SCREW M16 X 140 HX HD - 5000029036×8
  • 6825000011523
    $1.08
    SCREW M16 X 30 HX.HD. - 5000011523×10
  • 6835000011522
    $0.62
    SCREW M16 X 35 HX.HD. - 5000011522×8
  • 6845000011521
    $0.86
    SCREW M16 X 40 HX.HD. - 5000011521×10
  • 6875000029036
    $11.36
    SCREW M16 X 140 HX HD - 5000029036×8
  • 7035000087023
    $0.35
    SCREW M8 X 22,HX.HD,SER.FLG - 5000087023×8
  • 7175000011439
    $0.23
    SCREW M10 X 30 HX.HD - 5000011439×24
  • 7315000010644
    $0.04
    WASHER-LOCK B10 - 5000010644×8
  • 7325000033988
    $0.41
    WASHER-LOCK 10 - 5000033988×4
  • 7355000153532
    $3.16
    WASHER-LOCK M16 CON SPR,MZP - 5000153532×32
  • 7815000010644
    $0.04
    WASHER-LOCK B10 - 5000010644×8
  • 10005200010248Not stocked
    Spline coupling×1
  • 10015200010249Not stocked
    Coupler×1
  • 10025200010250Not stocked
    Coupler×1
  • 11505200024514Not stocked
    Seal Kit×1
