RD27-120 ROLLER PRO W/TRACT CTL

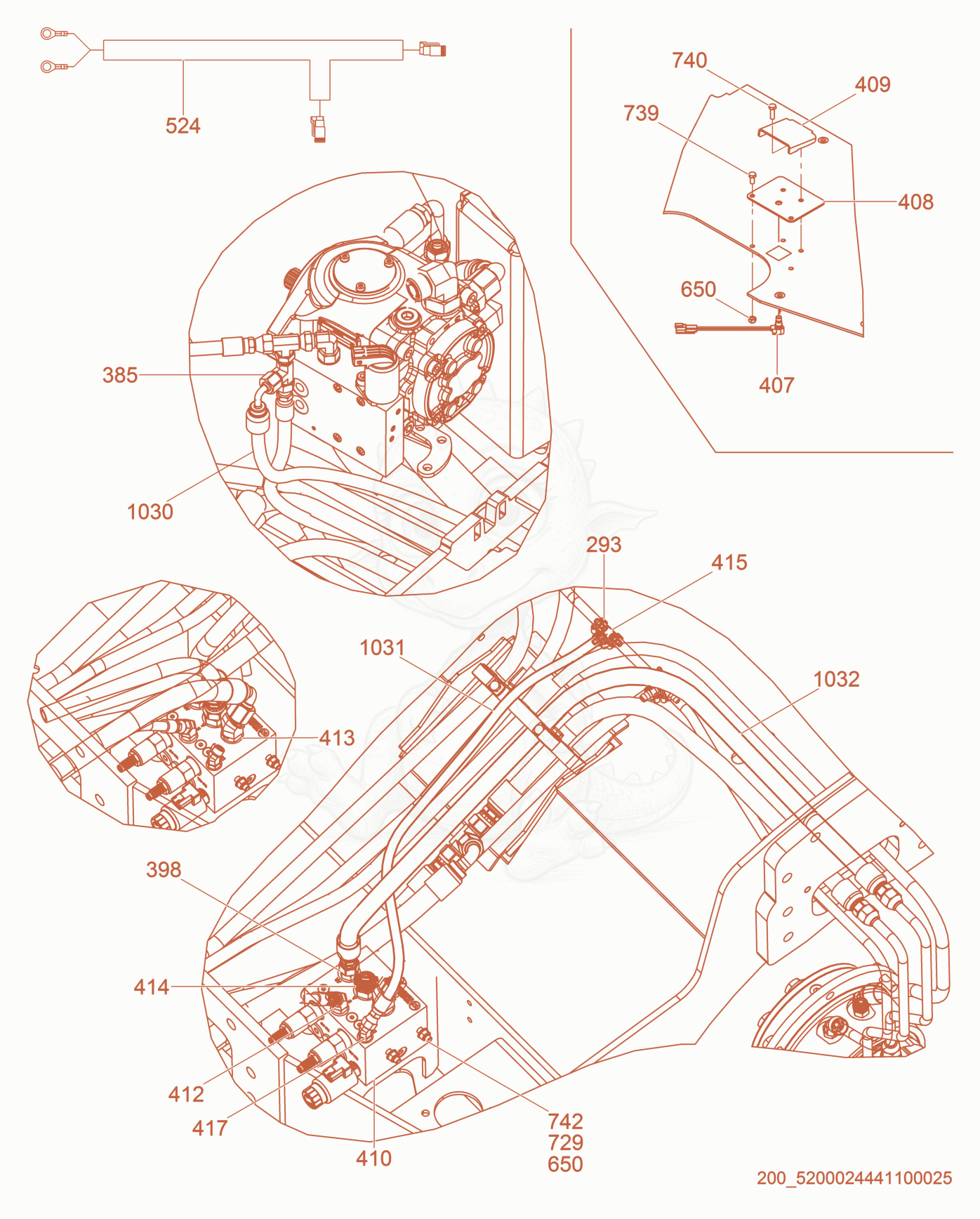

RD27-120 Traction Control cpl. Diagram

Exploded parts diagram of the Traction Control cpl. of a Wacker Neuson RD27-120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2935000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×3
  • 3855000111280
    $19.56
    FITTING-HYD,SAE#4 SWVL RUN TEE - 5000111280×1
  • 3985000081583
    $4.00
    FITTING #8 - 5000081583×1
  • 4075200012521Not stocked
    Foot switch×1
  • 4085200012422Not stocked
    Plate×1
  • 4095200012425Not stocked
    Foot pedal plate×1
  • 4105200012520Not stocked
    Manifold×1
  • 4125200016425Not stocked
    Fitting×1
  • 4135200024512Not stocked
    Straight fitting×1
  • 4145200016427Not stocked
    Fitting×1
  • 4155200015204Not stocked
    Tee fitting×1
  • 4175200016426Not stocked
    Fitting×1
  • 5245200014745Not stocked
    Wiring harness×1
  • 6505000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 6505000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×2
  • 7295000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×2
  • 7395000012361
    $0.23
    SCREW M8 X 16 HX.HD. - 5000012361×2
  • 7405000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×2
  • 7425000151371
    $4.21
    SCREW-ALLEN M8X130 8.8 - 5000151371×2
  • 10305200012178Not stocked
    Hydraulic hose×1
  • 10315200012177Not stocked
    Hydraulic hose×1
  • 10325200012179Not stocked
    Hydraulic hose×1
