RD28-120 DPF

RD28-120DPF mounting Diagram

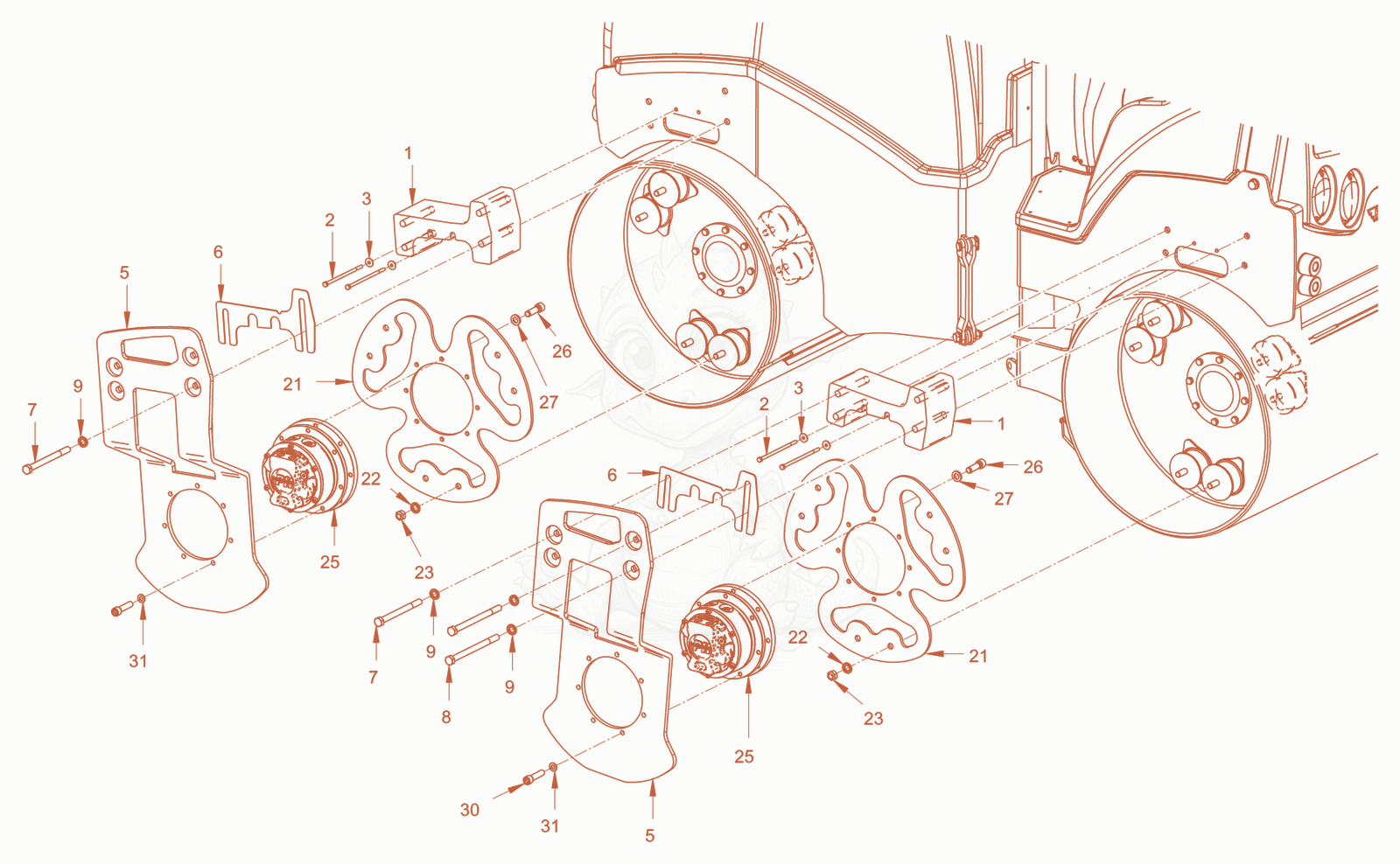

Exploded parts diagram of the mounting of a Wacker Neuson RD28-120DPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100012342
    $964.08
    Spacer block - 5100012342×4
  • 25100053012
    $10.25
    hexagon screw - 5100053012×8
  • 35100011933
    $2.40
    Cup spring - 5100011933×16
  • 55100012026
    $2,259.84
    Bow plate - 5100012026×2
  • 65100012027
    $47.26
    Metal plate - 5100012027×8
  • 75100012958
    $15.59
    Hexagon screw - 5100012958×12
  • 85100013235
    $18.12
    Hexagon screw - 5100013235×4
  • 95100012969
    $3.15
    Locking washer - 5100012969×16
  • 215100053011
    $736.98
    driver - 5100053011×2
  • 225100012969
    $3.15
    Locking washer - 5100012969×12
  • 235100012405
    $3.37
    Hexagon nut - 5100012405×12
  • 255100052949Not stocked
    gear hub motor×2
  • 265100048107Not stocked
    cheese-head screw×16
  • 275100012968
    $1.57
    Locking washer - 5100012968×16
  • 305100048107Not stocked
    cheese-head screw×14
  • 315100012968
    $1.57
    Locking washer - 5100012968×14
