RD28-120 DPF

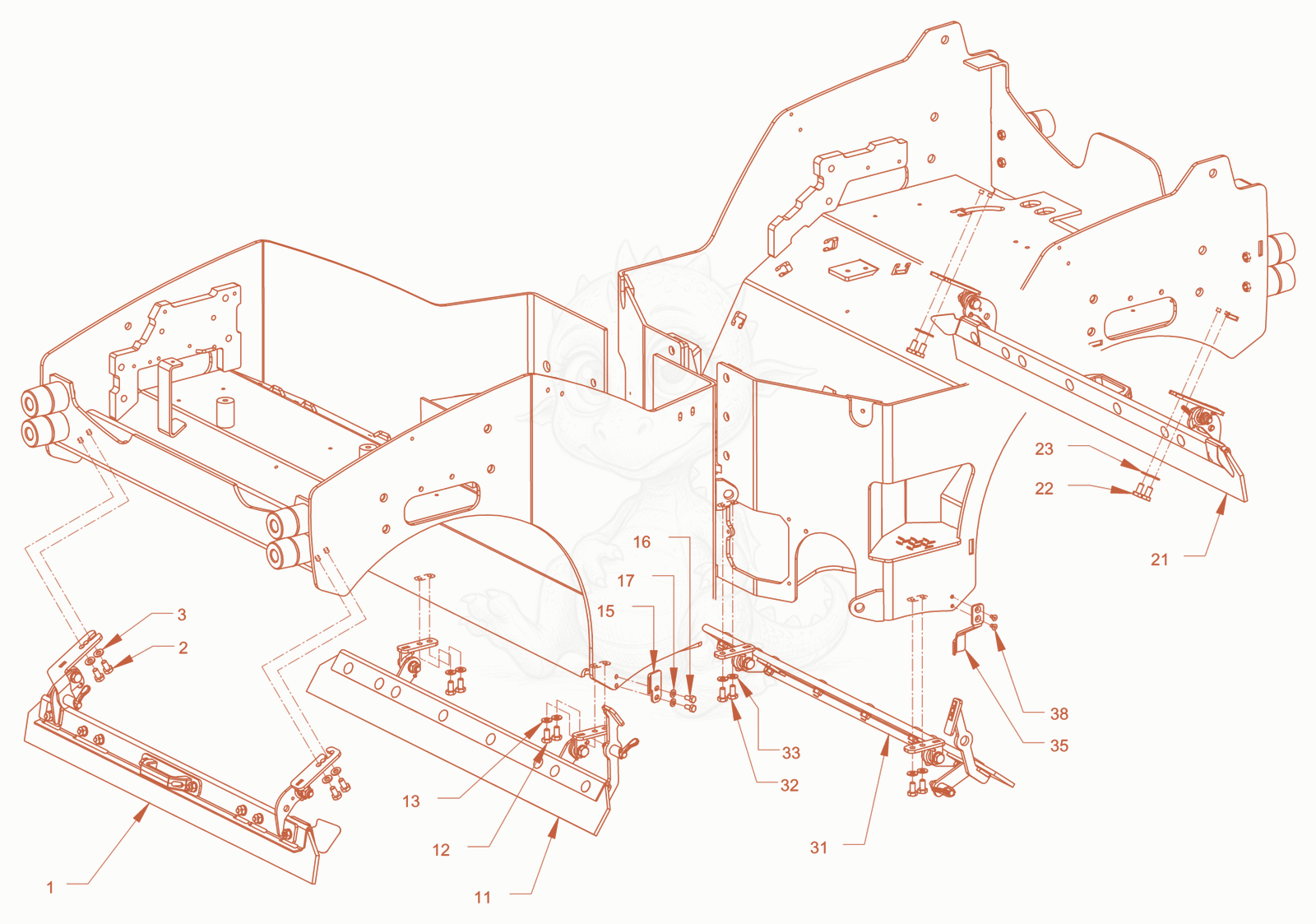

RD28-120DPF foldable scraper Diagram

Exploded parts diagram of the foldable scraper of a Wacker Neuson RD28-120DPF, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15100013080
$1,041.93
Scraper - 5100013080×1
25100012520
$1.57
Hexagon screw - 5100012520×4
35100012967
$1.57
Locking washer - 5100012967×4
115100013081
$889.13
Scraper - 5100013081×1
125100011479
$1.57
Hexagon screw - 5100011479×4
135100012967
$1.57
Locking washer - 5100012967×4
155100013047
$6.82
Holder-up - 5100013047×1
165100012515
$1.49
Hexagon screw - 5100012515×2
175100012966
$1.57
Locking washer - 5100012966×2
215100013080
$1,041.93
Scraper - 5100013080×1
225100012520
$1.57
Hexagon screw - 5100012520×4
235100012967
$1.57
Locking washer - 5100012967×4
315100013082
$837.41
Scraper - 5100013082×1
325100011479
$1.57
Hexagon screw - 5100011479×4
335100012967
$1.57
Locking washer - 5100012967×4
355100013065
$77.12
Holder-up - 5100013065×1
385100034697
$1.57
countersunk screw - 5100034697×2
