RD28-120 DPF

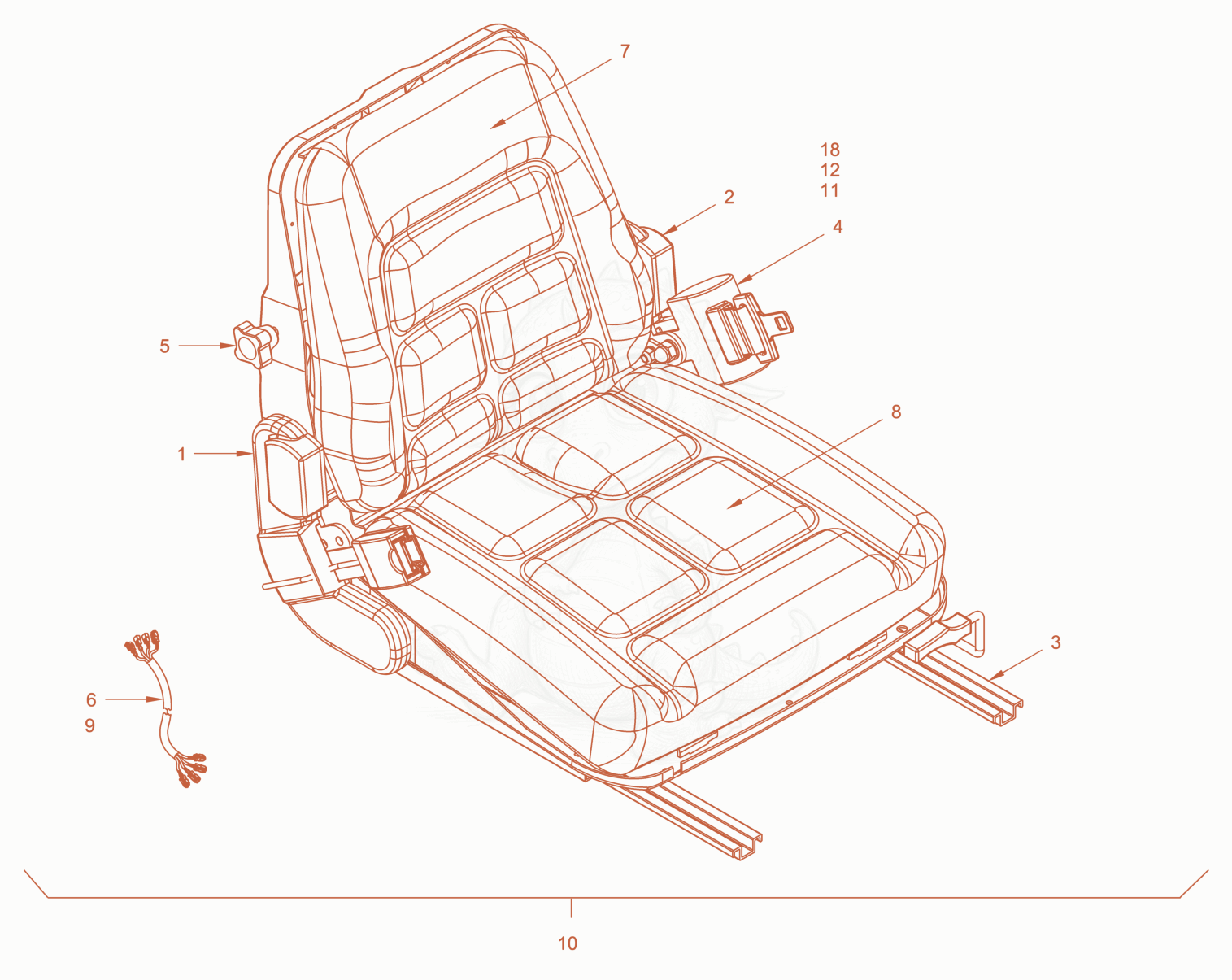

RD28-120DPF operator's seat with adjustmen Diagram

Exploded parts diagram of the operator's seat with adjustmen of a Wacker Neuson RD28-120DPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100083260Not stocked
    cover×1
  • 25100083261Not stocked
    cover×1
  • 35100013084Not stocked
    Set of adjustment bars×1
  • 45100083262Not stocked
    lap belt×1
  • 55100083263Not stocked
    adjustment×1
  • 65100083264Not stocked
    cable harness×1
  • 75100083265Not stocked
    backrest cushion, imi. leather×1
  • 85100083266Not stocked
    seat cushion×1
  • 95100012691Not stocked
    Seat contact switch×1
  • 105100082818Not stocked
    operator's seat×1
  • 115100083271Not stocked
    cable harness×1
  • 125100083270Not stocked
    lap belt×1
  • 185100052890Not stocked
    cable harness×1
