RD28-120 DPF

RD28-120DPF pump drive and engine assembly Diagram

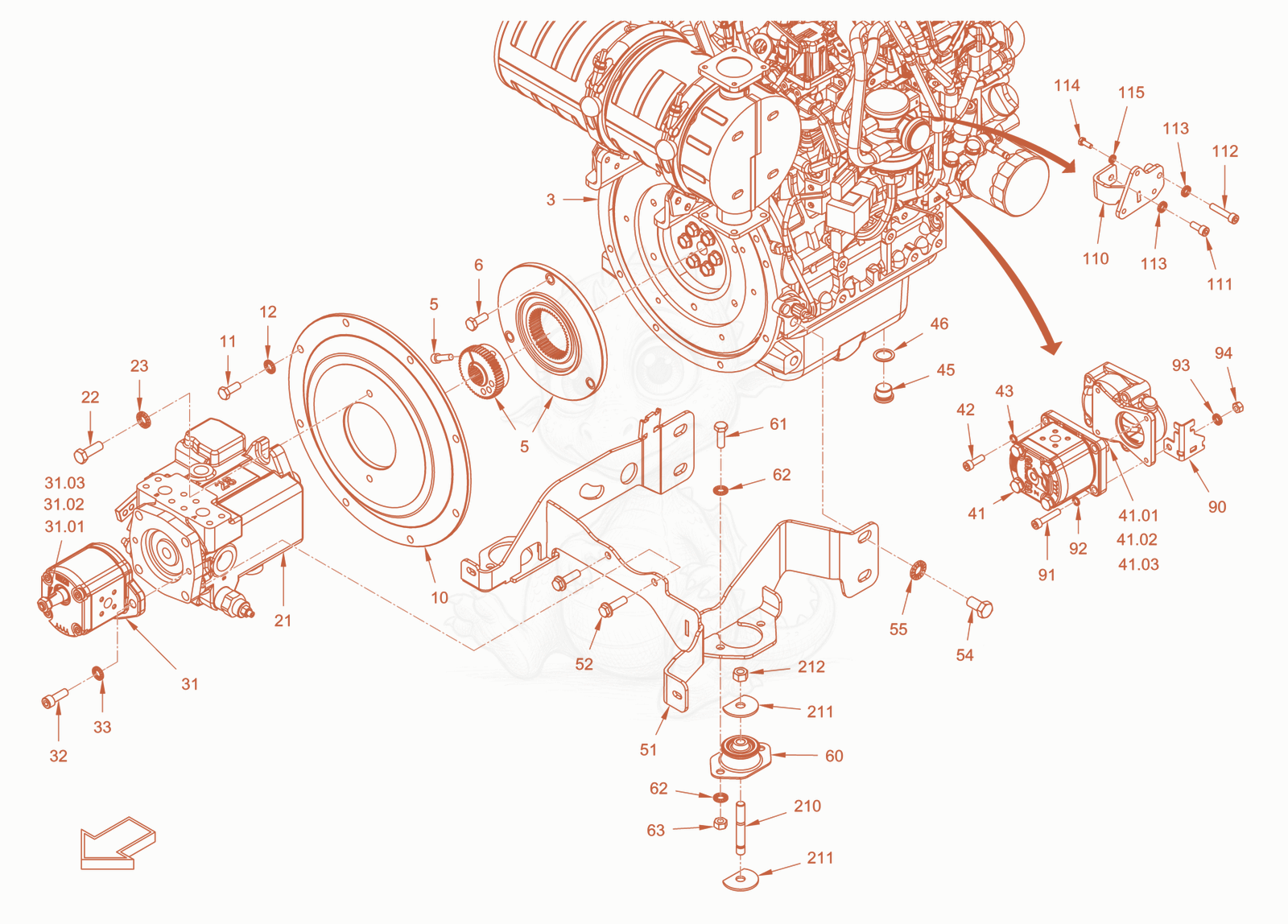

Exploded parts diagram of the pump drive and engine assembly of a Wacker Neuson RD28-120DPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35100052896Not stocked
    diesel engine×1
  • 55100024936
    $2,467.80
    coupling - 5100024936×1
  • 65100012553
    $4.93
    Hexagon screw - 5100012553×3
  • 105100024935Not stocked
    flange×1
  • 115100011479
    $1.57
    Hexagon screw - 5100011479×8
  • 125100012967
    $1.57
    Locking washer - 5100012967×8
  • 215100011841
    $10,511.51
    Variable displac. pump (drive) - 5100011841×1
  • 225100012621
    $2.62
    Hexagon screw - 5100012621×2
  • 235100012968
    $1.57
    Locking washer - 5100012968×2
  • 315100052897Not stocked
    gear pump×1
  • 315100013446
    $22.11
    Disk spring - 5100013446×1
  • 315100013446
    $22.11
    Disk spring - 5100013446×1
  • 315100012944
    $2.23
    Spring ring - 5100012944×1
  • 325100013450
    $1.57
    Cheese-head screw - 5100013450×2
  • 335100012967
    $1.57
    Locking washer - 5100012967×2
  • 415100012944
    $2.23
    Spring ring - 5100012944×1
  • 415100016271Not stocked
    disk spring×1
  • 415100016272Not stocked
    hexagon nut×1
  • 415100052898
    $968.79
    gear pump - 5100052898×1
  • 425100012727
    $1.57
    Cheese-head screw - 5100012727×3
  • 435100013441
    $1.57
    Locking washer - 5100013441×3
  • 455100013418
    $6.59
    Screw plug - 5100013418×1
  • 465100013005
    $1.57
    Sealing ring - 5100013005×1
  • 515100052899Not stocked
    mounting×1
  • 525100011587
    $4.15
    Safety screw - 5100011587×2
  • 545100012555
    $3.28
    Hexagon screw - 5100012555×4
  • 555100012972
    $2.09
    Locking washer - 5100012972×4
  • 605100024303
    $125.31
    rubber buffer - 5100024303×2
  • 615100012617
    $2.84
    Hexagon screw - 5100012617×4
  • 625100012967
    $1.57
    Locking washer - 5100012967×8
  • 635100012547
    $1.49
    Hexagon nut - 5100012547×4
  • 905100052900Not stocked
    holder×1
  • 915100013563
    $2.31
    Cheese-head screw - 5100013563×1
  • 925100013441
    $1.57
    Locking washer - 5100013441×1
  • 935100012966
    $1.57
    Locking washer - 5100012966×1
  • 945100012546
    $1.57
    Hexagon nut - 5100012546×1
  • 1105100052901Not stocked
    holder×1
  • 1115100012724
    $1.57
    Cheese-head screw - 5100012724×1
  • 1125100013563
    $2.31
    Cheese-head screw - 5100013563×1
  • 1135100012966
    $1.57
    Locking washer - 5100012966×2
  • 1145100012600
    $1.57
    Hexagon screw - 5100012600×3
  • 1155100012965
    $3.01
    Locking washer - 5100012965×3
  • 2105100012912
    $4.72
    STUD BOLT - 5100012912×2
  • 2115100012212
    $3.97
    Washer - 5100012212×4
  • 2125100012548
    $5.41
    Hexagon nut - 5100012548×2
