RD28-120 DPF

RD28-120DPF pump drive and engine assembly Diagram

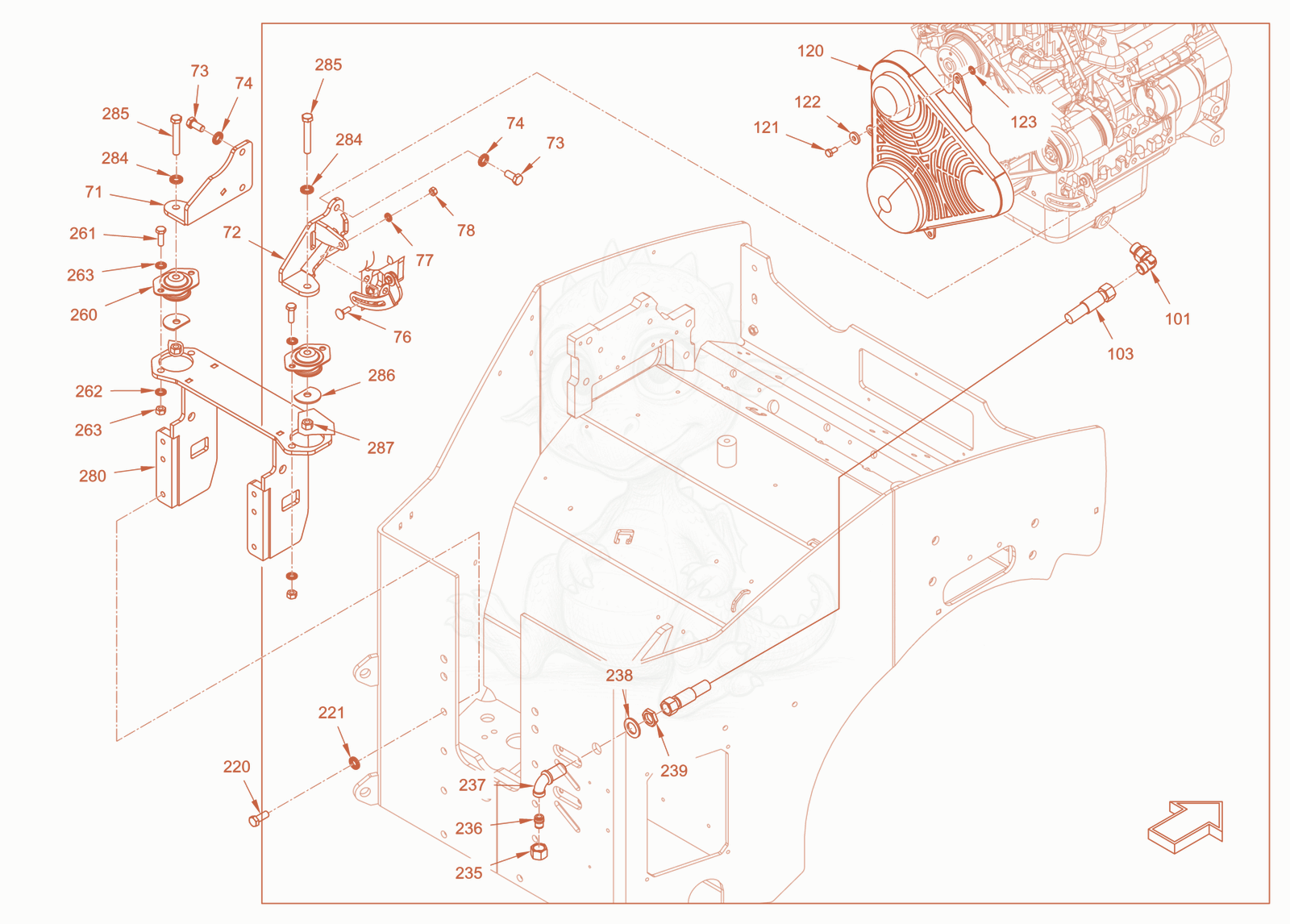

Exploded parts diagram of the pump drive and engine assembly of a Wacker Neuson RD28-120DPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 715100052902Not stocked
    holder system×1
  • 725100052903Not stocked
    holder system×1
  • 735100012554
    $3.97
    Hexagon screw - 5100012554×4
  • 745100012968
    $1.57
    Locking washer - 5100012968×4
  • 765100012780
    $1.57
    Mushroom head screw - 5100012780×1
  • 775100012966
    $1.57
    Locking washer - 5100012966×1
  • 785100012546
    $1.57
    Hexagon nut - 5100012546×1
  • 1015100012539
    $44.22
    Elbow adjustable - 5100012539×1
  • 1035100052904Not stocked
    hose×1
  • 1205100052905Not stocked
    v-belt protection×1
  • 1215100012515
    $1.49
    Hexagon screw - 5100012515×2
  • 1225100013094
    $1.57
    Washer - 5100013094×3
  • 1235100013230
    $1.57
    Locking washer - 5100013230×3
  • 2205100012626
    $1.57
    Hexagon screw - 5100012626×2
  • 2215100012968
    $1.57
    Locking washer - 5100012968×2
  • 2355100012235
    $2.71
    Cap nut - 5100012235×1
  • 2365100013555
    $4.28
    Filler cap - 5100013555×1
  • 2375100013486
    $44.11
    Bulkhead elbow - 5100013486×1
  • 2385100013191
    $1.49
    Washer - 5100013191×1
  • 2395100013488
    $4.76
    Hexagon nut - 5100013488×1
  • 2605100024303
    $125.31
    rubber buffer - 5100024303×2
  • 2615100012617
    $2.84
    Hexagon screw - 5100012617×4
  • 2625100012967
    $1.57
    Locking washer - 5100012967×8
  • 2635100012547
    $1.49
    Hexagon nut - 5100012547×4
  • 2805100052906Not stocked
    engine suspension×1
  • 2845100012968
    $1.57
    Locking washer - 5100012968×2
  • 2855100012513
    $3.84
    Hexagon screw - 5100012513×2
  • 2865100012212
    $3.97
    Washer - 5100012212×2
  • 2875100012548
    $5.41
    Hexagon nut - 5100012548×2
