RD28-120 DPF

RD28-120DPF fuel system Diagram

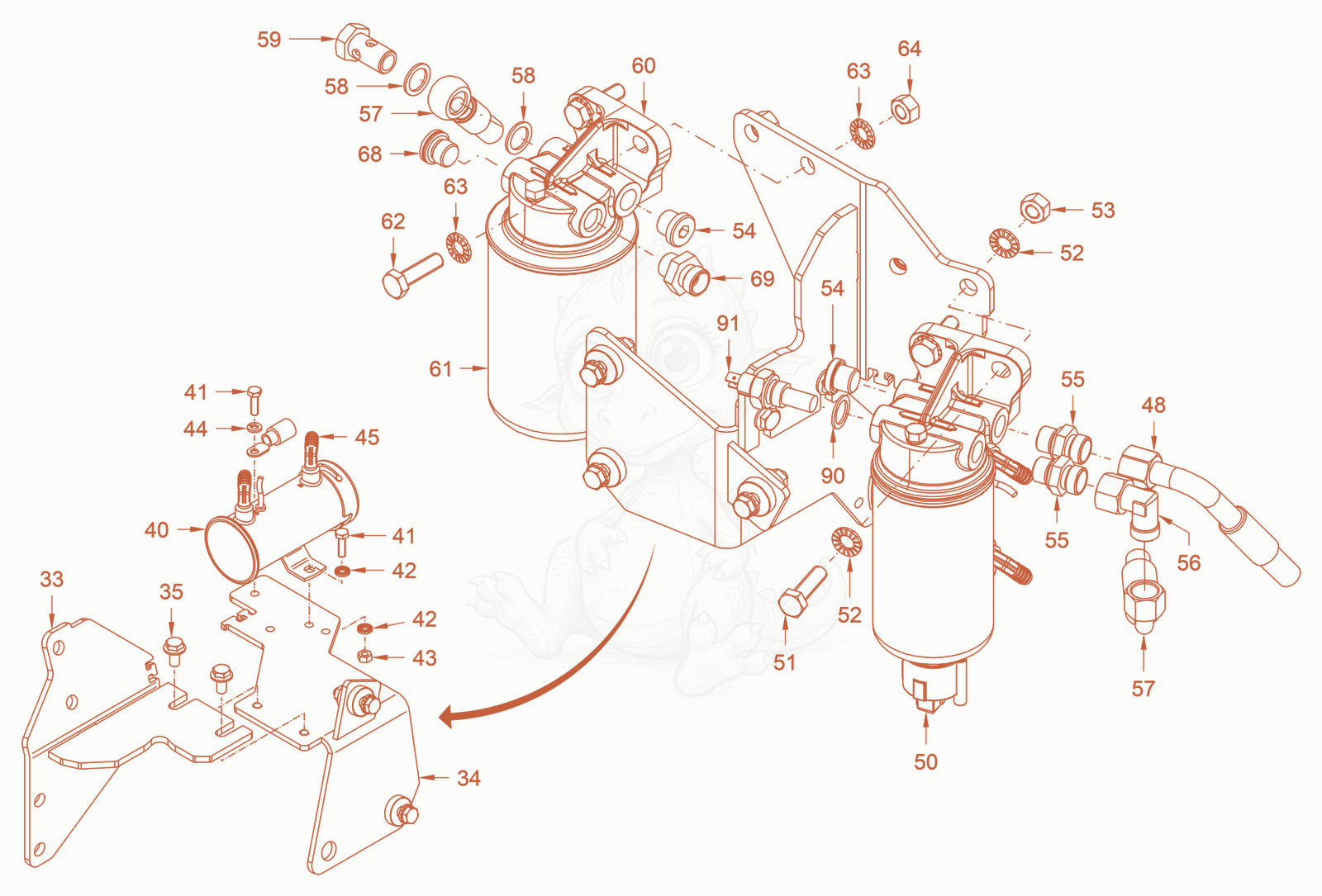

Exploded parts diagram of the fuel system of a Wacker Neuson RD28-120DPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 335100052910Not stocked
    holder×1
  • 345100052911Not stocked
    holder×1
  • 355100012498
    $2.62
    Safety screw - 5100012498×2
  • 405100025030
    $1,105.40
    fuel pump - 5100025030×1
  • 415100012608
    $1.57
    Hexagon screw - 5100012608×2
  • 425100012965
    $3.01
    Locking washer - 5100012965×3
  • 435100012545
    $1.57
    Hexagon nut - 5100012545×2
  • 445100023629
    $1.34
    spring ring - 5100023629×1
  • 455100025029Not stocked
    angle screwed socket×2
  • 485100052912Not stocked
    hose×1
  • 505100023444
    $252.71
    fuel filter cartridge - 5100023444×1
  • 515100013416
    $1.49
    Hexagon screw - 5100013416×2
  • 525100012967
    $1.57
    Locking washer - 5100012967×4
  • 535100012547
    $1.49
    Hexagon nut - 5100012547×2
  • 545100052913Not stocked
    locking screw×2
  • 555100013472
    $9.52
    Straight screwed socket - 5100013472×2
  • 565100013619
    $34.09
    Elbow adjustable - 5100013619×1
  • 575100052914Not stocked
    hose×1
  • 575100083272Not stocked
    hose×1
  • 585100024335
    $1.49
    sealing ring - 5100024335×2
  • 595100052915Not stocked
    hollow-core screw×1
  • 605100023253Not stocked
    Filter cover×1
  • 615100052415Not stocked
    filter cartridge, fuel×1
  • 625100013416
    $1.49
    Hexagon screw - 5100013416×2
  • 635100012967
    $1.57
    Locking washer - 5100012967×4
  • 645100012547
    $1.49
    Hexagon nut - 5100012547×2
  • 685100024988Not stocked
    Locking screw×1
  • 695100025887Not stocked
    Straight screwed socket×1
  • 905100024335
    $1.49
    sealing ring - 5100024335×1
  • 915100024946
    $187.12
    temperature switch - 5100024946×1
