RD28-120 DPF

RD28-120DPF air filter system Diagram

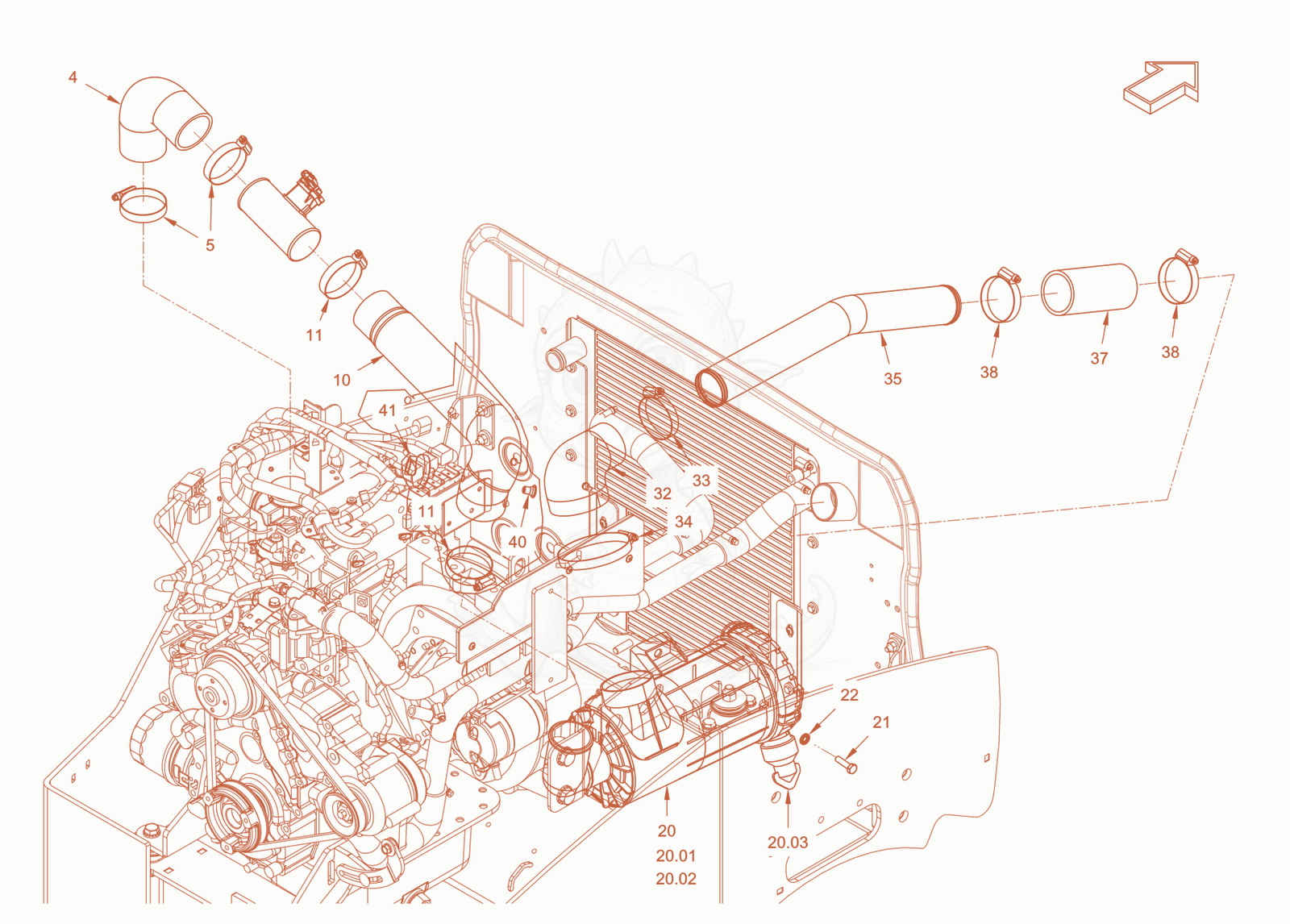

Exploded parts diagram of the air filter system of a Wacker Neuson RD28-120DPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45100052917Not stocked
    air hose×1
  • 55100013403
    $8.82
    Hose clip - 5100013403×2
  • 105100052918Not stocked
    air hose×1
  • 115100013403
    $8.82
    Hose clip - 5100013403×2
  • 205100011561
    $37.71
    Dust discharge valve - 5100011561Unknown×1
  • 205100052416Not stocked
    filter insert×1
  • 205100052417Not stocked
    safety filter cartridge×1
  • 205100052580Not stocked
    air filter×1
  • 215100013510
    $1.57
    Hexagon screw - 5100013510×2
  • 225100012966
    $1.57
    Locking washer - 5100012966×2
  • 325100052919Not stocked
    air hose×1
  • 335100013403
    $8.82
    Hose clip - 5100013403×1
  • 345100022865
    $10.25
    hose clamp - 5100022865×1
  • 355100052920Not stocked
    intake pipe×1
  • 375100052921Not stocked
    air hose×1
  • 385100013403
    $8.82
    Hose clip - 5100013403×2
  • 405100011464
    $17.85
    Threaded bolt - 5100011464×1
  • 415100013370
    $40.74
    Pressure switch, air filter - 5100013370×1
