RD28-120 DPF

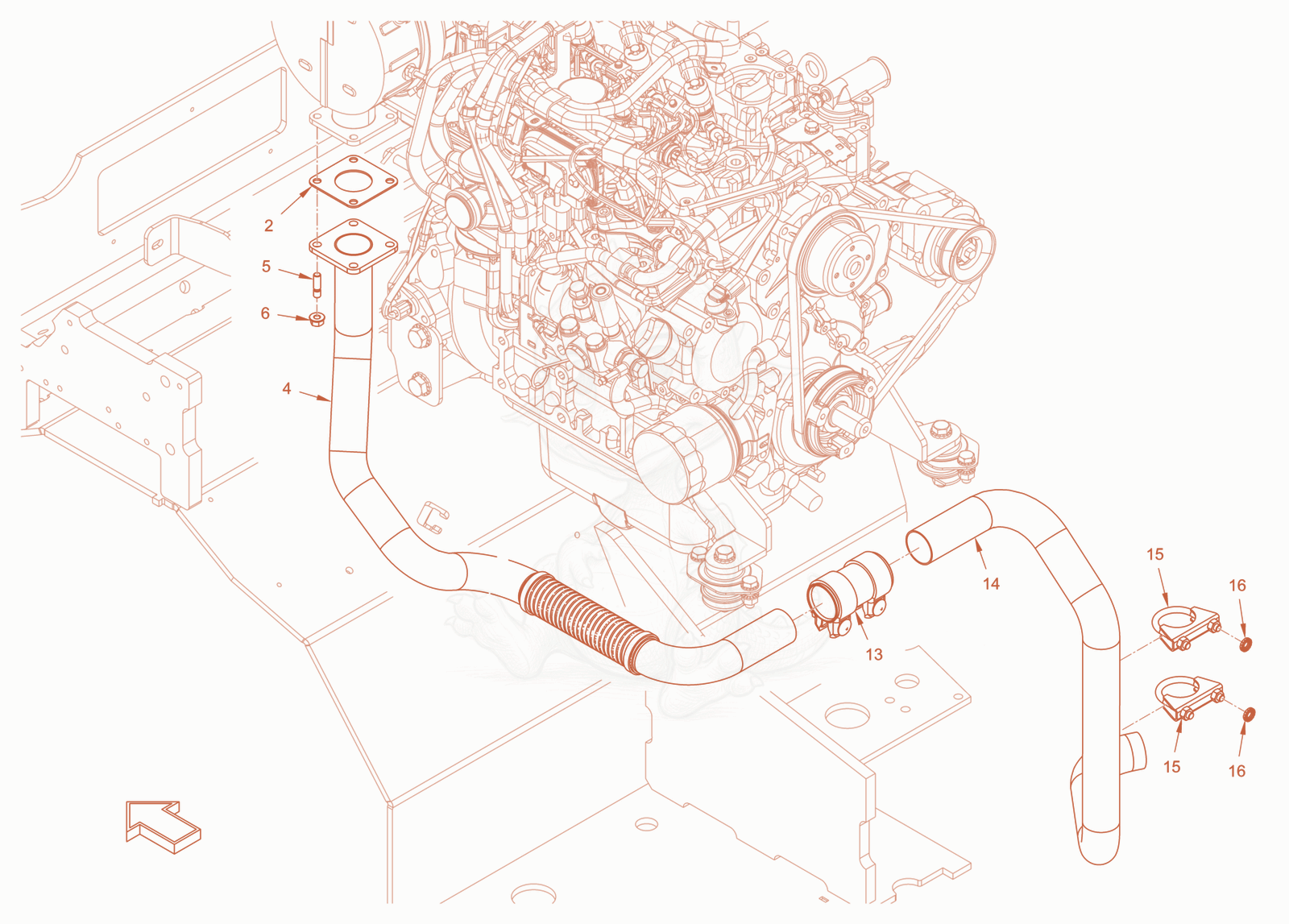

RD28-120DPF exhaust system Diagram

Exploded parts diagram of the exhaust system of a Wacker Neuson RD28-120DPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100025015
    $21.91
    sealing - 5100025015×1
  • 45100052922Not stocked
    flue gas pipe×1
  • 55100011471
    $4.72
    Stud bolt - 5100011471×4
  • 65100024980Not stocked
    hexagonal nut×4
  • 135100024979Not stocked
    connection pipe×1
  • 145100052923Not stocked
    flue gas pipe×1
  • 155100024978Not stocked
    strap clip×2
  • 165100012966
    $1.57
    Locking washer - 5100012966×4
