RD28-120 DPF

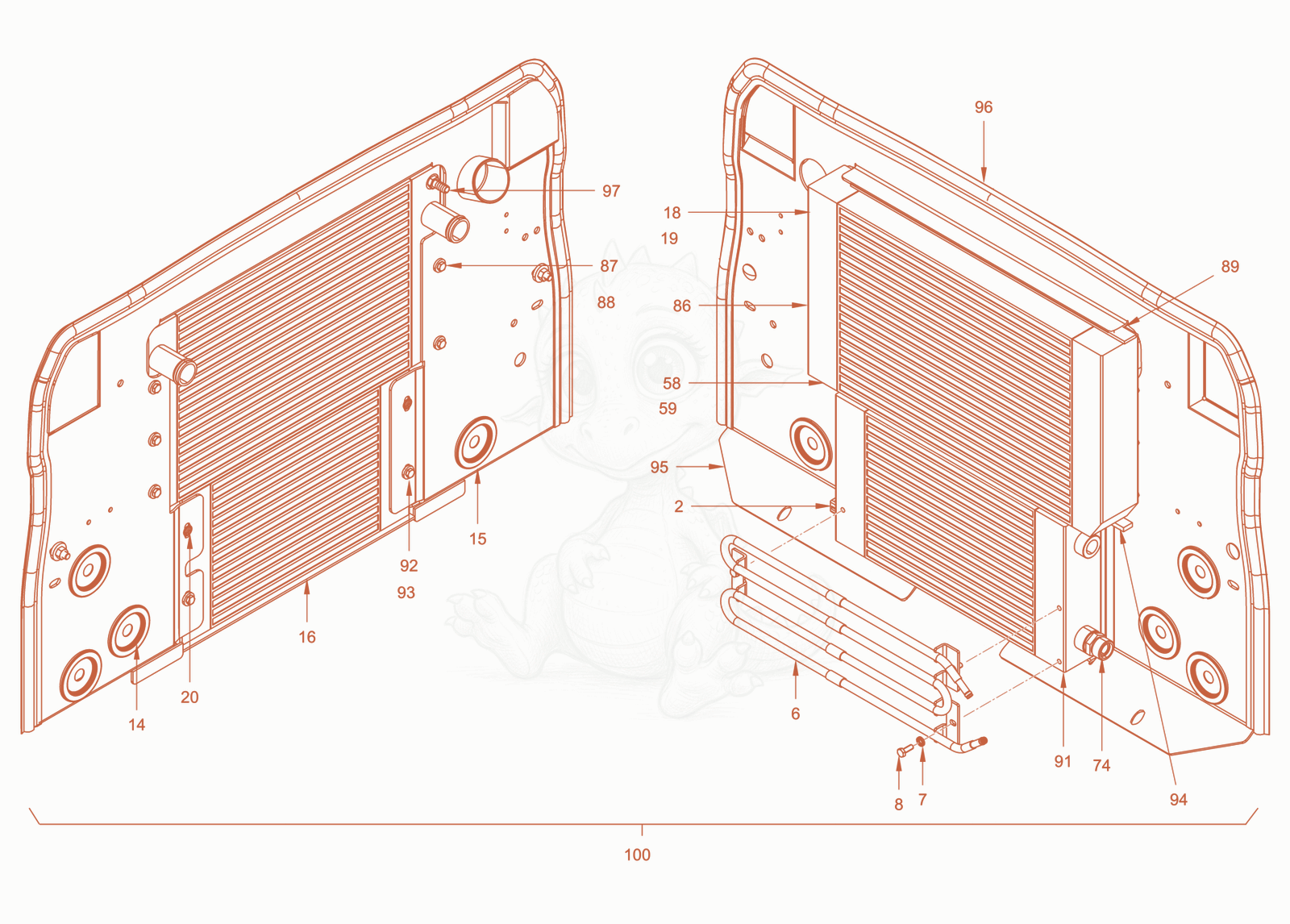

RD28-120DPF cooling (engine/hydraulic oil) Diagram

Exploded parts diagram of the cooling (engine/hydraulic oil) of a Wacker Neuson RD28-120DPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100023402
    $95.57
    temperature switch - 5100023402×1
  • 65100052909Not stocked
    pipe×1
  • 75100012965
    $3.01
    Locking washer - 5100012965×3
  • 85100012600
    $1.57
    Hexagon screw - 5100012600×3
  • 145100011592
    $23.87
    Grommet - 5100011592×3
  • 155100011592
    $23.87
    Grommet - 5100011592×1
  • 165100011866
    $14.81
    Sealing tape - 5100011866×0.4
  • 185100012444
    $21.78
    Screw plug - 5100012444×2
  • 195100013000
    $1.57
    Sealing ring - 5100013000×2
  • 205100024317
    $2.66
    fillister head screw - 5100024317×2
  • 585100012492
    $8.60
    Sealing ring - 5100012492×1
  • 595100013516
    $3.53
    Screw plug - 5100013516×1
  • 745100013477
    $14.10
    Straight screwed socket - 5100013477×1
  • 865100052383Not stocked
    radiator, engine cooling×1
  • 875100011636
    $1.57
    Washer - 5100011636×5
  • 885100012600
    $1.57
    Hexagon screw - 5100012600×5
  • 895100011866
    $14.81
    Sealing tape - 5100011866×0.5
  • 915100024315
    $1,220.22
    oil cooler - 5100024315×1
  • 925100011636
    $1.57
    Washer - 5100011636×2
  • 935100012600
    $1.57
    Hexagon screw - 5100012600×2
  • 945100011866
    $14.81
    Sealing tape - 5100011866×0.4
  • 955100052948Not stocked
    metal plate×1
  • 965100013642
    $33.65
    Sealing profile - 5100013642×1.8
  • 975100065338Not stocked
    hose nozzle×1
  • 1005100052935Not stocked
    radiator compl.×1
