RD28-120 DPF

RD28-120DPF constant motor (vibration drive) Diagram

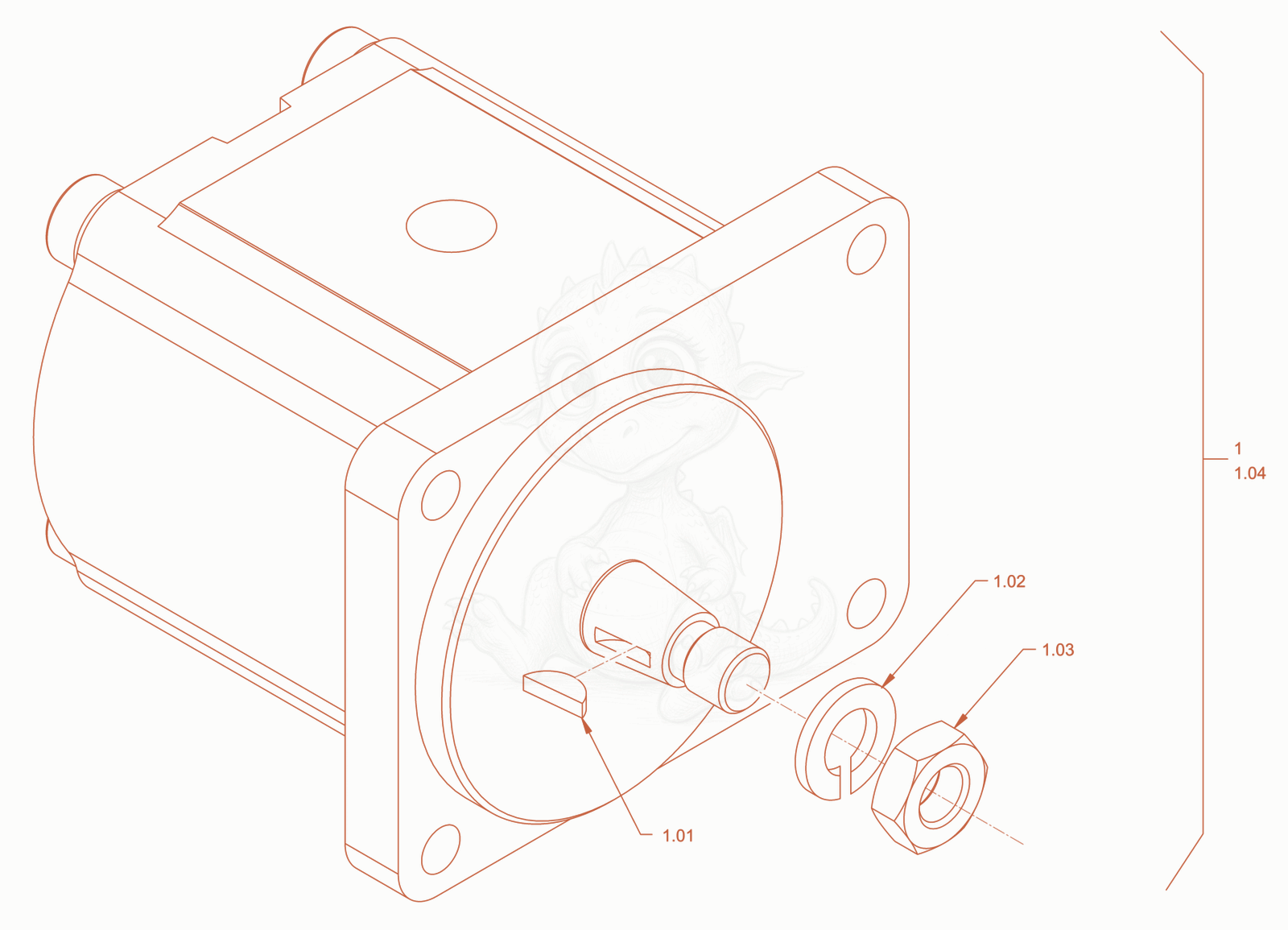

Exploded parts diagram of the constant motor (vibration drive) of a Wacker Neuson RD28-120DPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100011795
    $1,223.08
    Gear Motor - 5100011795Unknown×1
  • 15100012549
    $1.57
    Hexagon nut - 5100012549Unknown×1
  • 15100012944
    $2.23
    Spring ring - 5100012944Unknown×1
  • 15100013446
    $22.11
    Disk spring - 5100013446Unknown×1
  • 15100065348Not stocked
    set of seals×1
