RD28-120 DPF

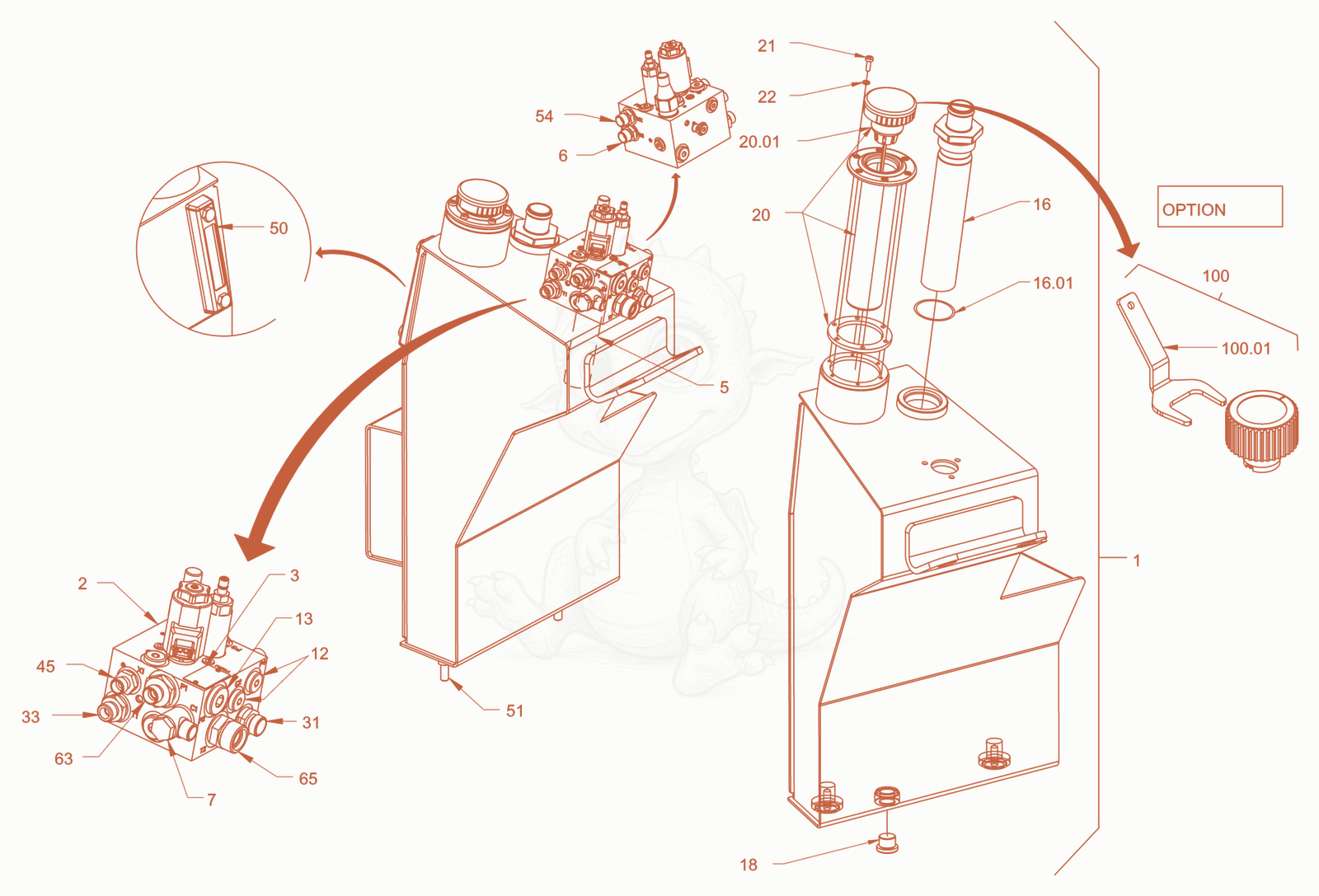

RD28-120DPF hydraulic oil tank Diagram

Exploded parts diagram of the hydraulic oil tank of a Wacker Neuson RD28-120DPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100046360
    $2,720.23
    Hydraulic oil tank - 5100046360×1
  • 25100012963
    $2,303.96
    Valve block - 5100012963×1
  • 35100013527
    $1.66
    Cheese-head screw - 5100013527×3
  • 55100011874
    $56.18
    Pipe - 5100011874×1
  • 65100013474
    $7.34
    Straight screwed socket - 5100013474×1
  • 75100013505
    $51.15
    Banjo - 5100013505×1
  • 125100011608
    $6.37
    Screw plug - 5100011608×2
  • 135100011665
    $8.69
    Screw plug - 5100011665×1
  • 165100011857
    $68.74
    Suction filter - 5100011857×1
  • 165100013415
    $7.63
    O-ring seal - 5100013415×1
  • 185100011665
    $8.69
    Screw plug - 5100011665×1
  • 205100039052
    $48.58
    Vent Filter - 5100039052×1
  • 205100012419
    $59.36
    Filter - 5100012419×1
  • 225100013558
    $1.57
    Sealing ring - 5100013558×6
  • 315100013475
    $8.78
    Straight screwed socket - 5100013475×1
  • 335100013553
    $9.08
    Straight screwed socket - 5100013553×1
  • 455100013474
    $7.34
    Straight screwed socket - 5100013474×1
  • 505100013435
    $114.84
    Oil level indicator - 5100013435×1
  • 515100011730
    $40.68
    Spacer pin - 5100011730×2
  • 545100013474
    $7.34
    Straight screwed socket - 5100013474×1
  • 635100013499
    $15.46
    Straight screwed socket - 5100013499×1
  • 655100013477
    $14.10
    Straight screwed socket - 5100013477×1
  • 1005100016828
    $155.77
    vent filter - 5100016828Unknown×1
  • 1005100024927Not stocked
    special wrench×1
