RD28-120 DPF

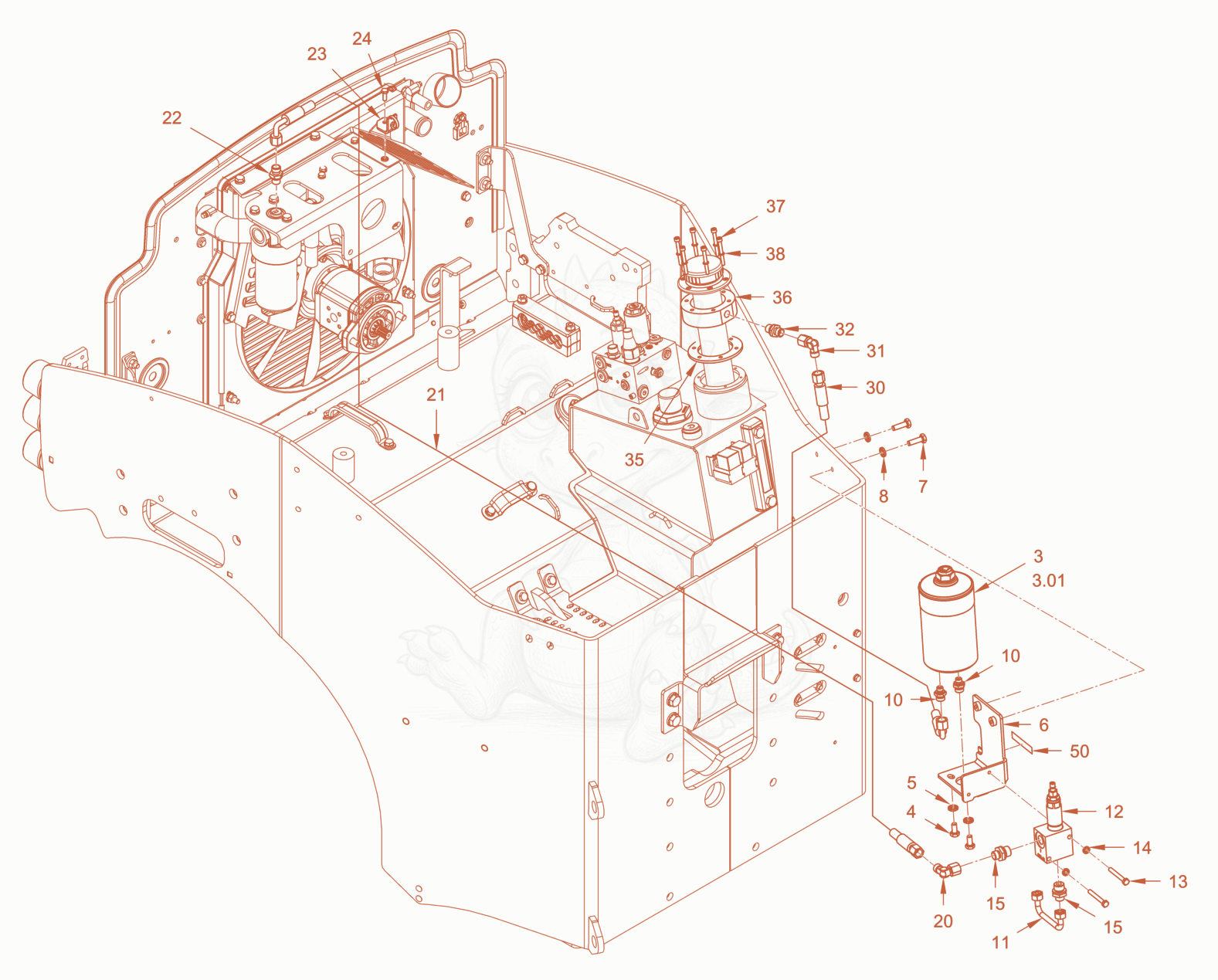

RD28-120DPF bypass oil filter Diagram

Exploded parts diagram of the bypass oil filter of a Wacker Neuson RD28-120DPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35100065307Not stocked
    filter×1
  • 35100066879Not stocked
    filter insert×1
  • 45100012515Not stocked
    Hexagon screw×2
  • 55100012966Not stocked
    Locking washer×2
  • 65100065316Not stocked
    holder×1
  • 75100012613Not stocked
    Hexagon screw×2
  • 85100012966Not stocked
    Locking washer×2
  • 105100029551Not stocked
    straight screwed socket×2
  • 115100065322Not stocked
    pipe bend×1
  • 125100065308Not stocked
    pressure reducing valve×1
  • 135100034772Not stocked
    hexagon screw×2
  • 145100012965Not stocked
    Locking washer×2
  • 155100048634Not stocked
    straight screwed socket×2
  • 205100029538Not stocked
    elbow adjustable×1
  • 215100077705Not stocked
    hose×1
  • 225100013454Not stocked
    Straight screwed socket×1
  • 235100066905Not stocked
    holder×1
  • 245100012600Not stocked
    Hexagon screw×1
  • 305100077708Not stocked
    hose×1
  • 315100029538Not stocked
    elbow adjustable×1
  • 325100013454Not stocked
    Straight screwed socket×1
  • 355100065310Not stocked
    sealing×1
  • 365100065311Not stocked
    distance ring×1
  • 375100012090Not stocked
    Cheese-head screw×6
  • 385100013558Not stocked
    Sealing ring×6
  • 505100046875Not stocked
    sealing tape×0.09
