RD28-120 DPF

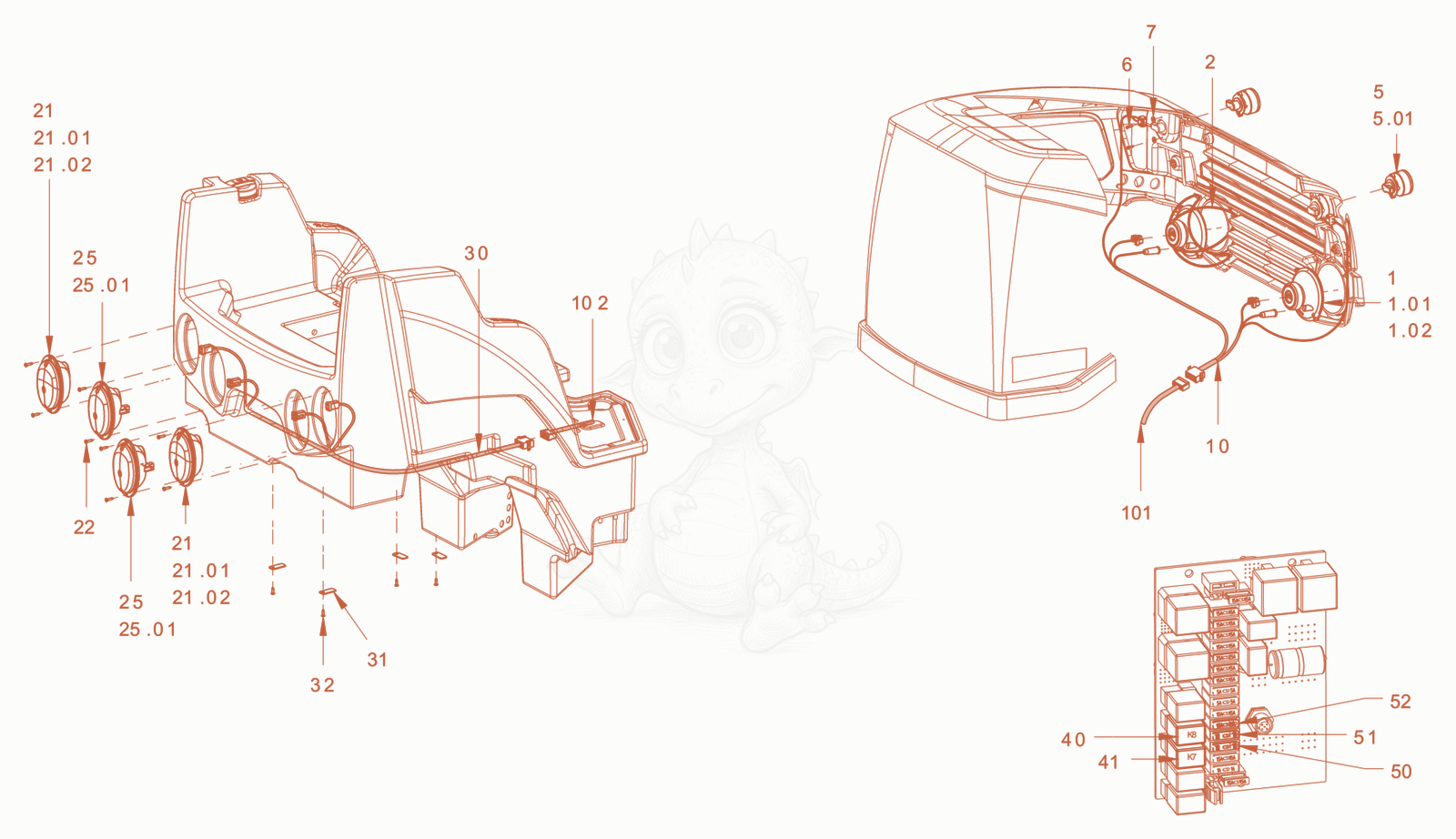

RD28-120DPF lighting Diagram
- Working light - 5100011799Unknown×2
- Lamp - 5100012468Unknown×2
- Lamp - 5100013522Unknown×2
- headlight - 5100065328Unknown×2
- 15100065330Not stockedlamp×2
- O-ring seal - 5100011991×4
- Direction indicator - 5100011800×2
- Straight screwed socket - 5100012071×2
- Fillister head screw - 5100011739×4
- Washer - 5100013453×4
- wire harness (lighting) - 5100017997×1
- Lamp - 5100013448×2
- Lamp - 5100012213×2
- Tail light - 5100011802×2
- Sheet metal screw - 5100011607×8
- Reversing light - 5100011801×2
- Lamp - 5100013448×2
- Wire harness (lighting) - 5100012032×1
- Metal plate - 5100011728×4
- Sheet metal screw - 5100011902×4
- Relay - 5100011583×1
- Relay - 5100011583×1
- Blade fuse - 5100013579×1
- Blade fuse - 5100013579×1
- Blade fuse - 5100013580×1
- 1015100052972Not stockedwire harness front frame×1
- Wire harness (rear frame) - 5100012767×1
