RD28-120 DPF

RD28-120DPF drive hydraulics Diagram

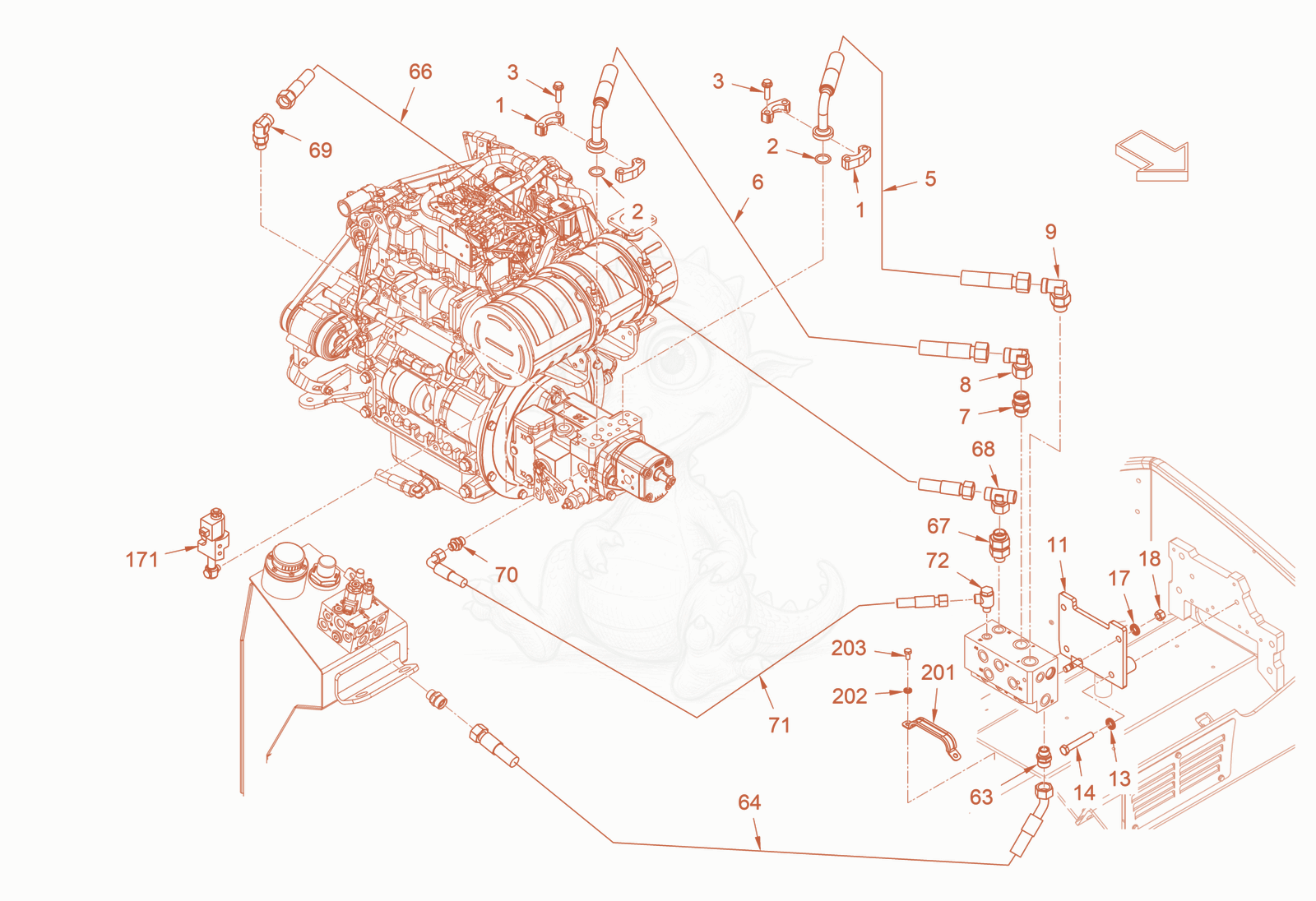

Exploded parts diagram of the drive hydraulics of a Wacker Neuson RD28-120DPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100013430
    $23.53
    Sae-flange half - 5100013430×4
  • 25100013431
    $1.57
    O-ring seal - 5100013431×2
  • 35100011587
    $4.15
    Safety screw - 5100011587×8
  • 55100052998Not stocked
    hose×1
  • 65100052999Not stocked
    hose×1
  • 75100013212
    $22.22
    Straight screwed socket - 5100013212×1
  • 85100013484
    $84.74
    Elbow adjustable - 5100013484×1
  • 95100053000Not stocked
    elbow adjustable×1
  • 115100012284
    $241.23
    Plate - 5100012284×1
  • 135100012968
    $1.57
    Locking washer - 5100012968×2
  • 145100012513
    $3.84
    Hexagon screw - 5100012513×2
  • 175100012968
    $1.57
    Locking washer - 5100012968×2
  • 185100012548
    $5.41
    Hexagon nut - 5100012548×2
  • 635100013477
    $14.10
    Straight screwed socket - 5100013477×1
  • 645100011662
    $193.93
    Flexible tubing - 5100011662×1
  • 665100077723Not stocked
    hose×1
  • 675100012418
    $224.61
    Nonreturn valve - 5100012418×1
  • 685100013481
    $88.72
    T-piece adjustable - 5100013481×1
  • 695100053002Not stocked
    elbow adjustable×1
  • 705100013578
    $29.99
    Straight screwed socket - 5100013578×1
  • 715100011456
    $73.59
    Flexible tubing - 5100011456×1
  • 725100013505
    $51.15
    Banjo - 5100013505×1
  • 1715100012429
    $1,078.35
    Valve block - 5100012429×1
  • 2015100011532
    $3.53
    Pipe clip - 5100011532×1
  • 2025100012966
    $1.57
    Locking washer - 5100012966×2
  • 2035100012515
    $1.49
    Hexagon screw - 5100012515×2
