RD28-120 DPF

RD28-120DPF drive shifting Diagram

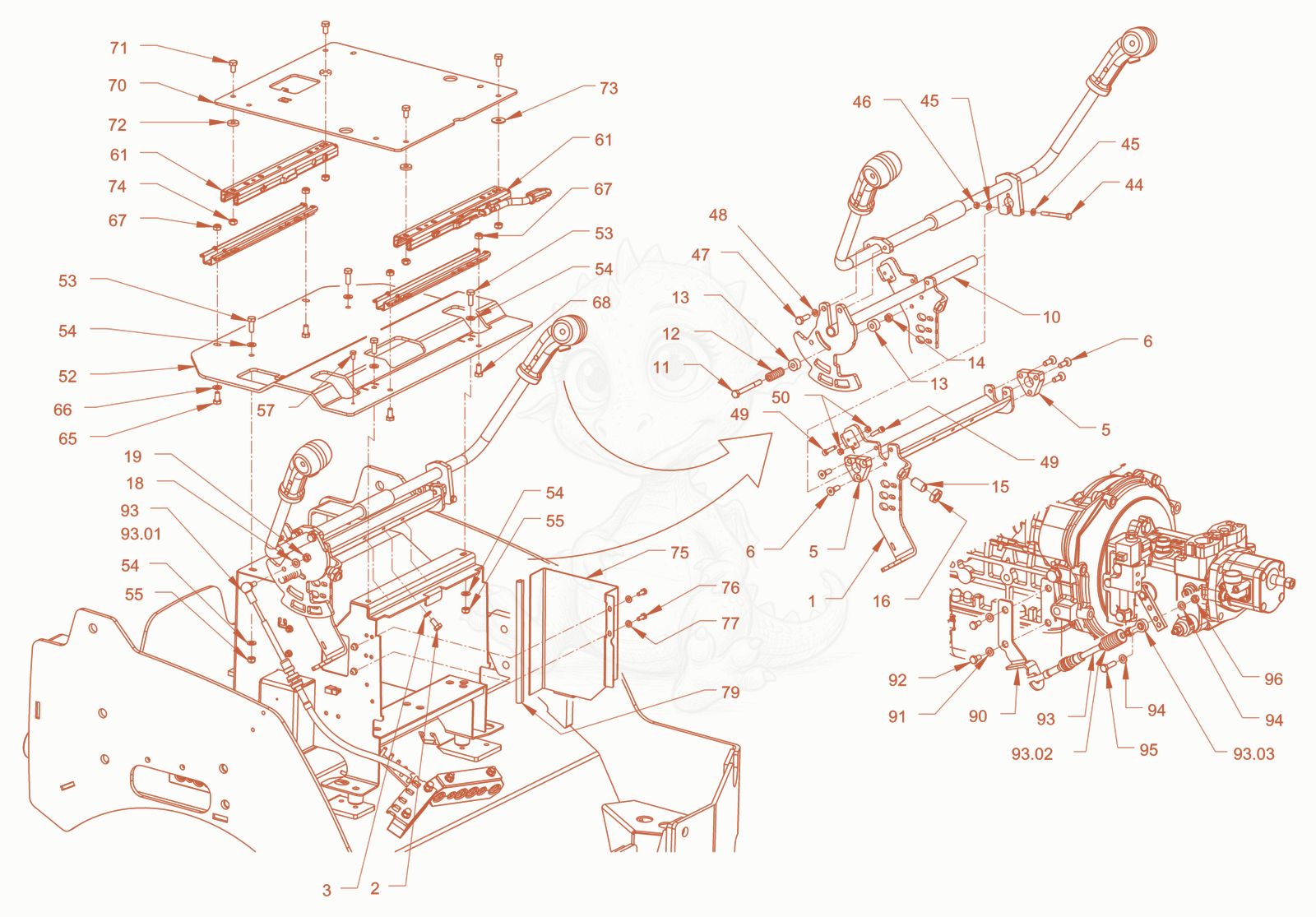

Exploded parts diagram of the drive shifting of a Wacker Neuson RD28-120DPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100012035Not stocked
    Mounting device×1
  • 25100012515Not stocked
    Hexagon screw×3
  • 35100012966Not stocked
    Locking washer×3
  • 55100011792Not stocked
    Slide block×2
  • 65100048707Not stocked
    countersunk screw×6
  • 105100012037Not stocked
    Drive lever×1
  • 115100023200Not stocked
    Hexagon screw×1
  • 125100011819Not stocked
    Compression spring×1
  • 135100011791Not stocked
    Distance bush×2
  • 145100012546Not stocked
    Hexagon nut×1
  • 155100013166Not stocked
    Spring-thrust piece×1
  • 165100013400Not stocked
    Hexagon nut×1
  • 185100012966Not stocked
    Locking washer×1
  • 195100012546Not stocked
    Hexagon nut×1
  • 445100013468Not stocked
    Hexagon screw×1
  • 455100012965Not stocked
    Locking washer×2
  • 465100012545Not stocked
    Hexagon nut×1
  • 475100012517Not stocked
    Hexagon screw×2
  • 485100012966Not stocked
    Locking washer×2
  • 495100013404Not stocked
    Cheese-head screw×2
  • 505100012545Not stocked
    Hexagon nut×2
  • 525100012191Not stocked
    Metal plate×1
  • 535100012517Not stocked
    Hexagon screw×4
  • 545100012966Not stocked
    Locking washer×8
  • 555100012546Not stocked
    Hexagon nut×4
  • 575100011443Not stocked
    Cheese-head screw×2
  • 615100012195Not stocked
    Set of adjustment bars×1
  • 655100012515Not stocked
    Hexagon screw×2
  • 665100012966Not stocked
    Locking washer×2
  • 675100012546Not stocked
    Hexagon nut×4
  • 685100011869Not stocked
    Fillister head screw×2
  • 705100012192Not stocked
    Metal plate×1
  • 715100012517Not stocked
    Hexagon screw×4
  • 725100013094Not stocked
    Washer×3
  • 735100013421Not stocked
    Washer×1
  • 745100012546Not stocked
    Hexagon nut×4
  • 755100012717Not stocked
    Metal plate×1
  • 765100012600Not stocked
    Hexagon screw×3
  • 775100012965Not stocked
    Locking washer×3
  • 795100013412Not stocked
    Edge protection×0.2
  • 905100012154Not stocked
    Bracket×1
  • 915100012968Not stocked
    Locking washer×2
  • 925100012554Not stocked
    Hexagon screw×2
  • 935100011949Not stocked
    Bellows×1
  • 935100011951Not stocked
    Joint-head×1
  • 935100012241Not stocked
    Actuating cable×1
  • 935100012333Not stocked
    Angle joint×1
  • 945100012966Not stocked
    Locking washer×2
  • 955100035308Not stocked
    hexagon screw×1
  • 965100053004Not stocked
    safety nut×1
