RD28-120 DPF

RD28-120DPF steering Diagram

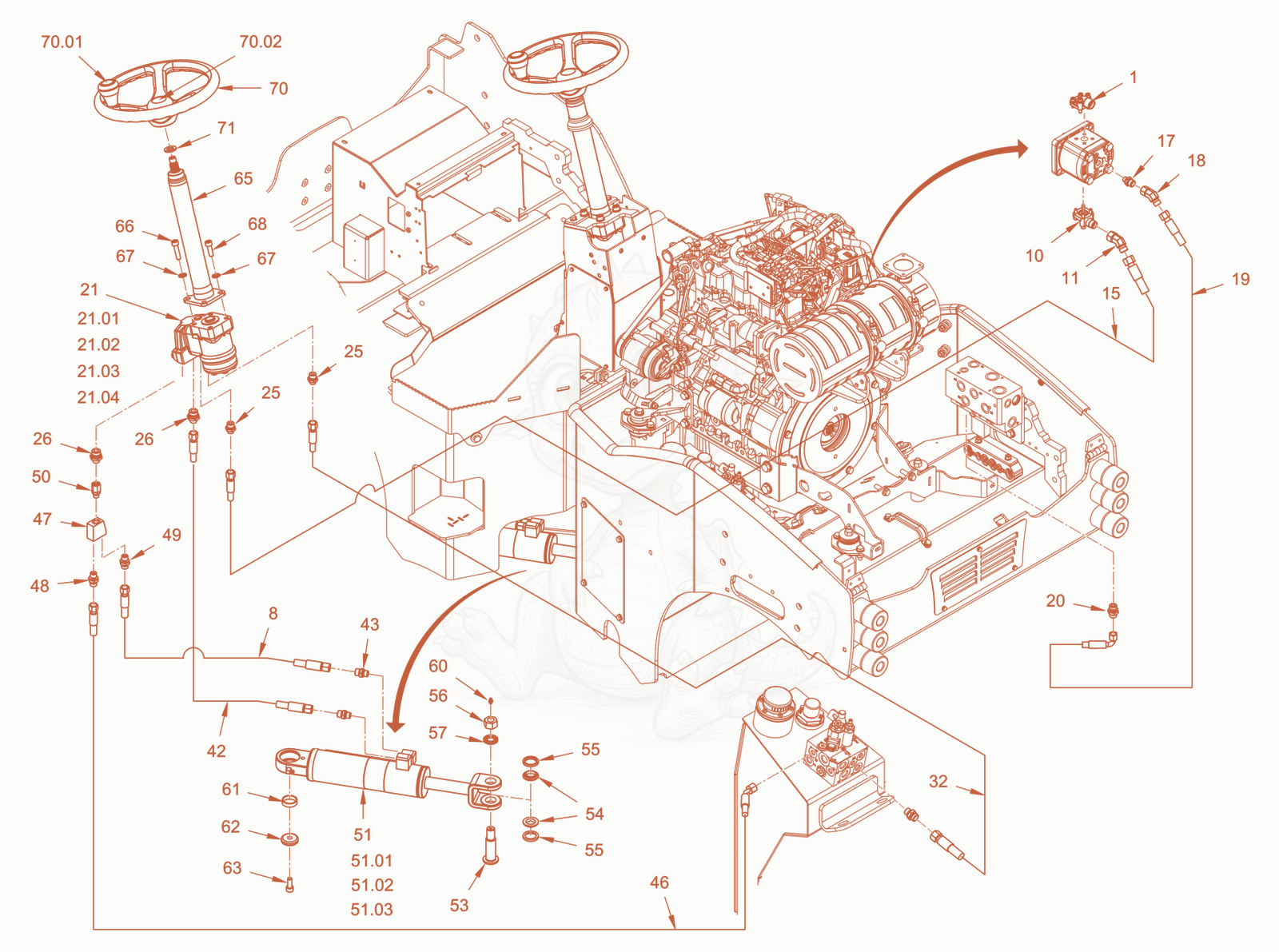

Exploded parts diagram of the steering of a Wacker Neuson RD28-120DPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100012216Not stocked
    Angle flange screwing×1
  • 85100053005Not stocked
    hose×1
  • 105100012215Not stocked
    Angle flange screwing×1
  • 115100012543Not stocked
    Elbow adjustable×1
  • 155100012842Not stocked
    Flexible tubing×1
  • 175100013447Not stocked
    Straight screwed socket×1
  • 185100012072Not stocked
    Elbow adjustable×1
  • 195100012278Not stocked
    Flexible tubing×1
  • 205100013553Not stocked
    Straight screwed socket×6
  • 215100013528Not stocked
    Cheese-head screw×2
  • 215100012657Not stocked
    Steering unit + connect. plate×1
  • 215100012655Not stocked
    Connection plate×1
  • 215100011736Not stocked
    O-ring seal×4
  • 215100011593Not stocked
    Steering unit×1
  • 255100013433Not stocked
    Straight screwed socket×2
  • 265100013499Not stocked
    Straight screwed socket×2
  • 325100012800Not stocked
    Flexible tubing×1
  • 425100012989Not stocked
    Flexible tubing×1
  • 435100013492Not stocked
    Straight screwed socket×2
  • 465100053006Not stocked
    hose×1
  • 475100053007Not stocked
    connecting block×1
  • 485100013454Not stocked
    Straight screwed socket×1
  • 495100013474Not stocked
    Straight screwed socket×1
  • 505100053008Not stocked
    straight screwed socket×1
  • 515100011563Not stocked
    Radial rod end bearing×1
  • 515100011685Not stocked
    Set of seals×1
  • 515100012028Not stocked
    Hydraulic cylinder×1
  • 515100012481Not stocked
    Greasing nipple×1
  • 535100011776Not stocked
    Bolt×1
  • 545100011680Not stocked
    Spacer ring×2
  • 555100013560Not stocked
    Seal×2
  • 565100012550Not stocked
    Hexagon nut×1
  • 575100012955Not stocked
    Locking washer×1
  • 605100012479Not stocked
    Greasing nipple×1
  • 615100011820Not stocked
    Spacer ring×1
  • 625100011695Not stocked
    U-washer×1
  • 635100013463Not stocked
    Cheese-head screw×1
  • 655100012644Not stocked
    Steering column×1
  • 665100013450Not stocked
    Cheese-head screw×2
  • 675100012967Not stocked
    Locking washer×4
  • 685100012783
    $1.66
    Cheese-head screw - 5100012783×2
  • 705100011912
    $220.94
    Steering wheel - 5100011912×1
  • 705100012392
    $54.12
    Turning handle - 5100012392×1
  • 705100012393
    $21.19
    Cover - 5100012393×1
  • 715100013413
    $1.57
    Washer M16 - 5100013413×1
