RD28-120 DPF

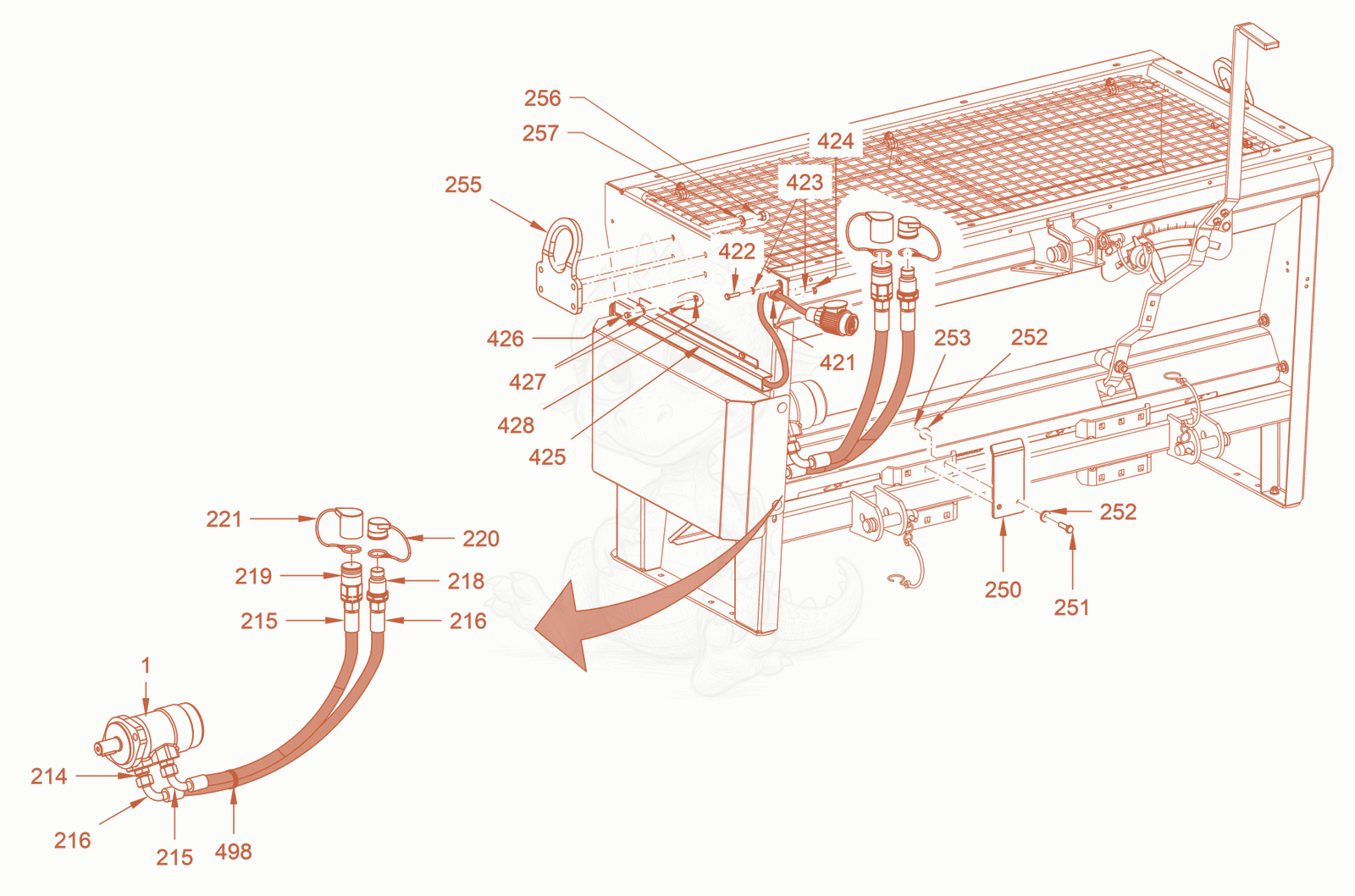

RD28-120DPF cylinder spreader Diagram

Exploded parts diagram of the cylinder spreader of a Wacker Neuson RD28-120DPF, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100013095Not stocked
    Hydraulic motor×1
  • 2145100013476Not stocked
    Straight screwed socket×2
  • 2155100011445Not stocked
    Flexible tubing×1
  • 2165100013018Not stocked
    Flexible tubing×1
  • 2185100011771Not stocked
    Coupling plug×1
  • 2195100011773Not stocked
    Coupling sleeve×1
  • 2205100011774Not stocked
    Protecting cap×1
  • 2215100011775Not stocked
    Protecting cap×1
  • 2505100013072Not stocked
    Bracket×1
  • 2515100013510Not stocked
    Hexagon screw×2
  • 2525100013094Not stocked
    Washer×4
  • 2535100012546Not stocked
    Hexagon nut×2
  • 2555100013076Not stocked
    Towing loop×2
  • 2565100012617Not stocked
    Hexagon screw×8
  • 2575100012967Not stocked
    Locking washer×8
  • 2585100012547Not stocked
    Hexagon nut×8
  • 4215100011546Not stocked
    Pipe clip×2
  • 4225100013397Not stocked
    Hexagon screw×2
  • 4235100012965Not stocked
    Locking washer×4
  • 4245100012545Not stocked
    Hexagon nut×2
  • 4255100013021Not stocked
    Silentbloc×1
  • 4265100012600Not stocked
    Hexagon screw×2
  • 4275100012965Not stocked
    Locking washer×4
  • 4285100012545Not stocked
    Hexagon nut×2
  • 4985100013429Not stocked
    Wire fastener×10
