RD28e-120o

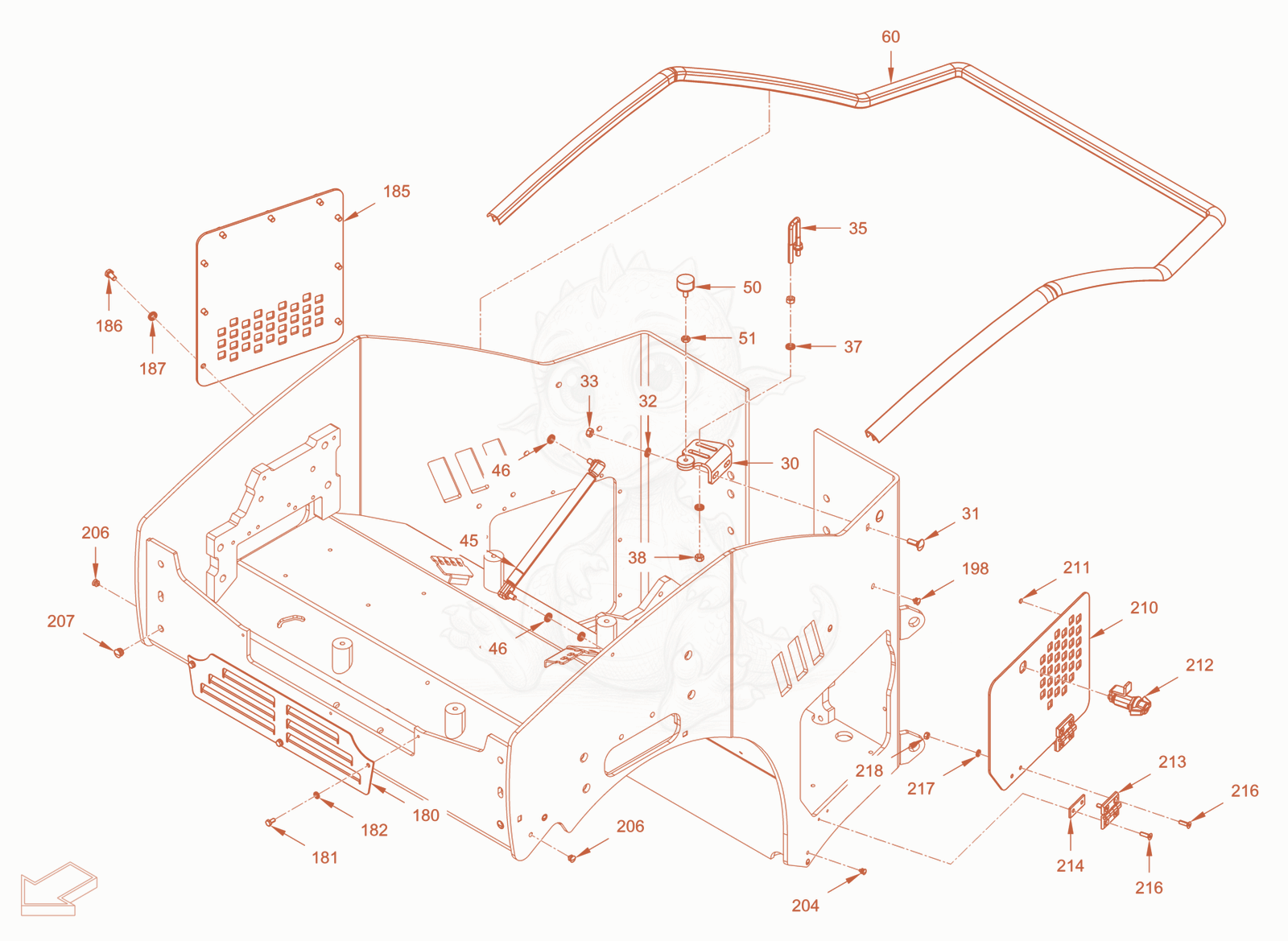

RD28-120OE canopies and covers Diagram

Exploded parts diagram of the canopies and covers of a Wacker Neuson RD28-120OE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 305100013372
    $44.94
    Bracket - 5100013372×1
  • 315100012780
    $1.57
    Mushroom head screw - 5100012780×2
  • 325100012966
    $1.57
    Locking washer - 5100012966×2
  • 335100012546
    $1.57
    Hexagon nut - 5100012546×2
  • 355100050644Not stocked
    wire clip×1
  • 375100012966
    $1.57
    Locking washer - 5100012966×4
  • 385100012546
    $1.57
    Hexagon nut - 5100012546×4
  • 455100011919
    $346.75
    Gas spring - 5100011919×1
  • 465100012966
    $1.57
    Locking washer - 5100012966×3
  • 505100013525
    $23.40
    Rubber buffer - 5100013525×1
  • 515100013537
    $1.57
    Hexagon nut - 5100013537×1
  • 605100012029
    $41.50
    Sealing profile - 5100012029×2.8
  • 1805100076299Not stocked
    fan grille×1
  • 1815100012572
    $20.09
    Hexagon screw - 5100012572×3
  • 1825100012965
    $3.01
    Locking washer - 5100012965×3
  • 1855100076300Not stocked
    lid×1
  • 1865100012515
    $1.49
    Hexagon screw - 5100012515×9
  • 1875100012966
    $1.57
    Locking washer - 5100012966×9
  • 1985100050647Not stocked
    filler cap×4
  • 2045100058746Not stocked
    filler cap×2
  • 2065100050647Not stocked
    filler cap×4
  • 2075100012493
    $1.49
    Filler cap - 5100012493×2
  • 2105100076301Not stocked
    lid×1
  • 2115100076302Not stocked
    rubber buffer×3
  • 2125100074429Not stocked
    lock×1
  • 2135100011630
    $43.91
    Hinge - 5100011630×2
  • 2145100076303Not stocked
    supporting plate×2
  • 2165100012665
    $1.49
    Countersunk screw - 5100012665×8
  • 2175100012965
    $3.01
    Locking washer - 5100012965×4
  • 2185100012545
    $1.57
    Hexagon nut - 5100012545×4
