RD28e-120o

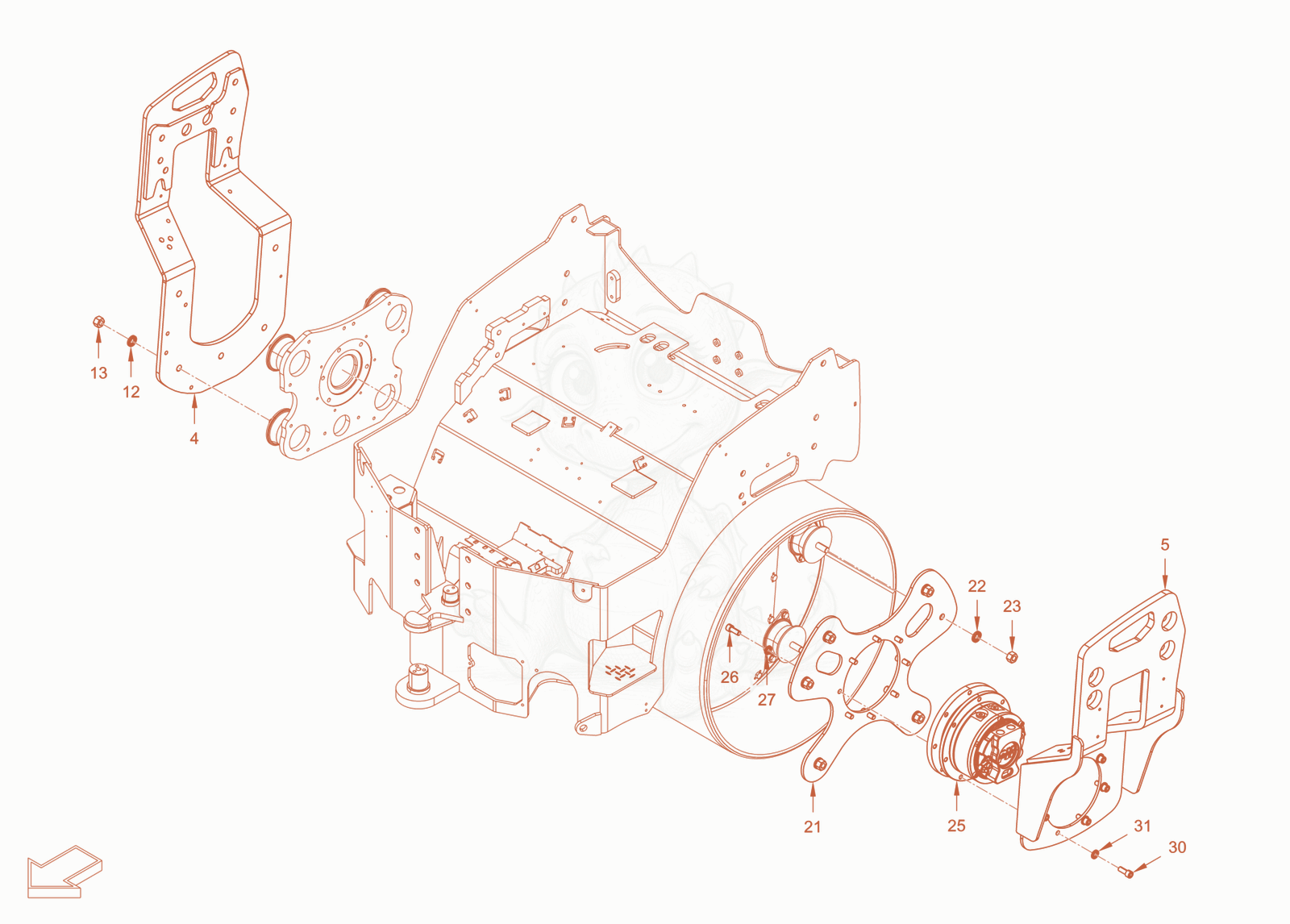

RD28-120OE mounting Diagram

Exploded parts diagram of the mounting of a Wacker Neuson RD28-120OE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45100012025
    $2,958.48
    Bow plate - 5100012025×1
  • 55100013211
    $4,593.99
    Bow plate - 5100013211×1
  • 125100012969
    $3.15
    Locking washer - 5100012969×4
  • 135100012405
    $3.37
    Hexagon nut - 5100012405×4
  • 215100053013Not stocked
    driver×1
  • 225100012969
    $3.15
    Locking washer - 5100012969×6
  • 235100012405
    $3.37
    Hexagon nut - 5100012405×6
  • 255100076290Not stocked
    gear hub motor×1
  • 265100048107Not stocked
    cheese-head screw×8
  • 275100012968
    $1.57
    Locking washer - 5100012968×8
  • 305100048107Not stocked
    cheese-head screw×7
  • 315100012968
    $1.57
    Locking washer - 5100012968×7
