RD45-140 Tandem Roller

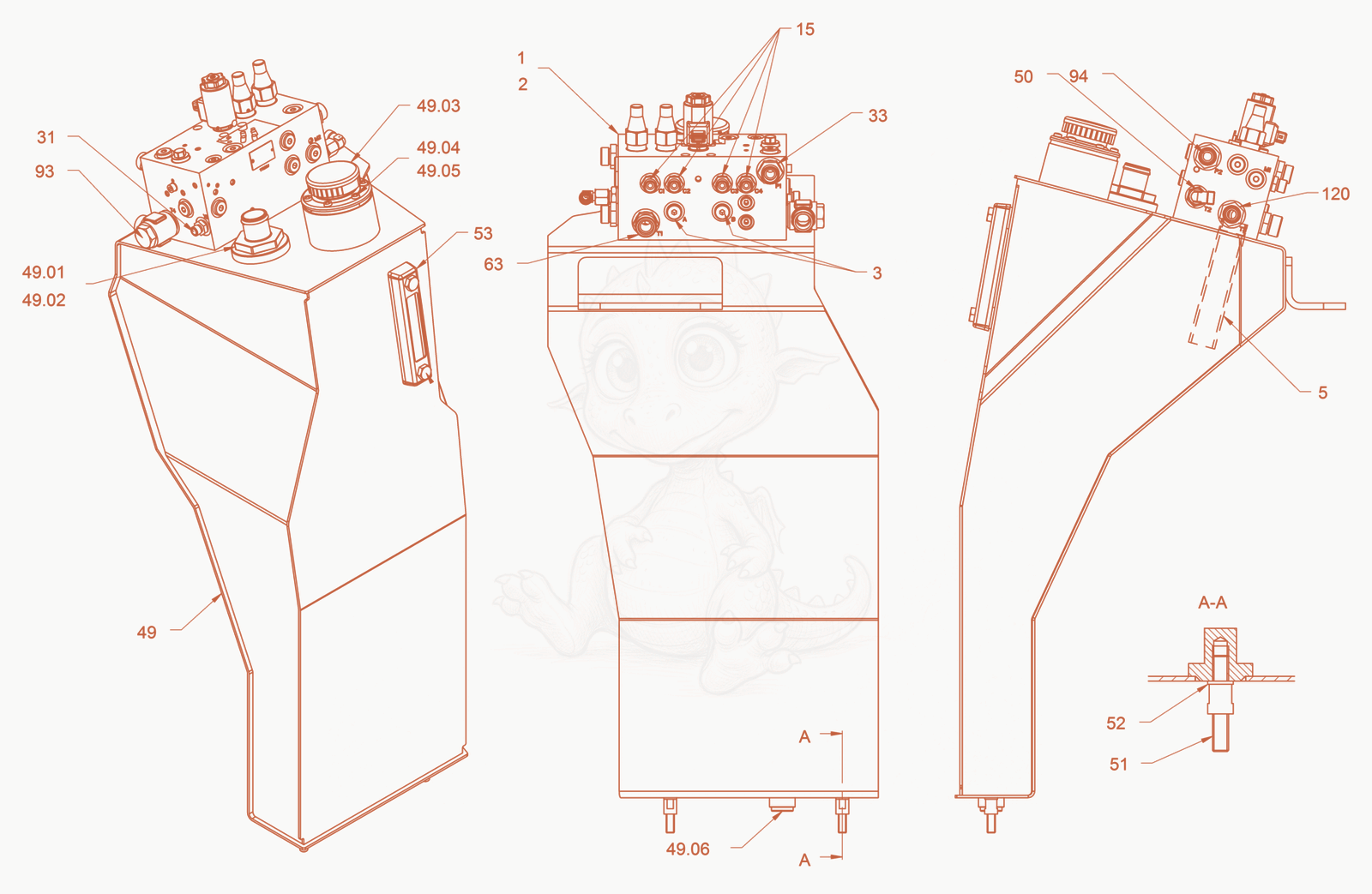

RD45-140 oil tank Diagram
- Valve block - 5100012970×1
- Cheese-head screw - 5100013256×4
- Screw plug - 5100011608×2
- Pipe - 5100011874×1
- Straight screwed socket - 5100013474×4
- Straight screwed socket - 5100011548×1
- Straight screwed socket - 5100013433×1
- Hydraulic oil tank - 5100012178×1
- Vent Filter - 5100039052×1
- Sealing ring - 5100013558×6
- O-ring seal - 5100013415×1
- Fillister head screw - 5100012866×6
- Filter - 5100012419×1
- Suction filter - 5100011857×1
- Bushing - 5100011655×1
- Straight screwed socket - 5100013553×1
- Spacer pin - 5100011730×4
- Spacer shim - 5100011861×4
- Oil level indicator - 5100013435×1
- Straight screwed socket - 5100013477×1
- Banjo - 5100013493×1
- Straight screwed socket - 5100013476×1
- Straight screwed socket - 5100013477×1
