RD45-140 Tandem Roller

RD45-140 additive sprinkling Diagram

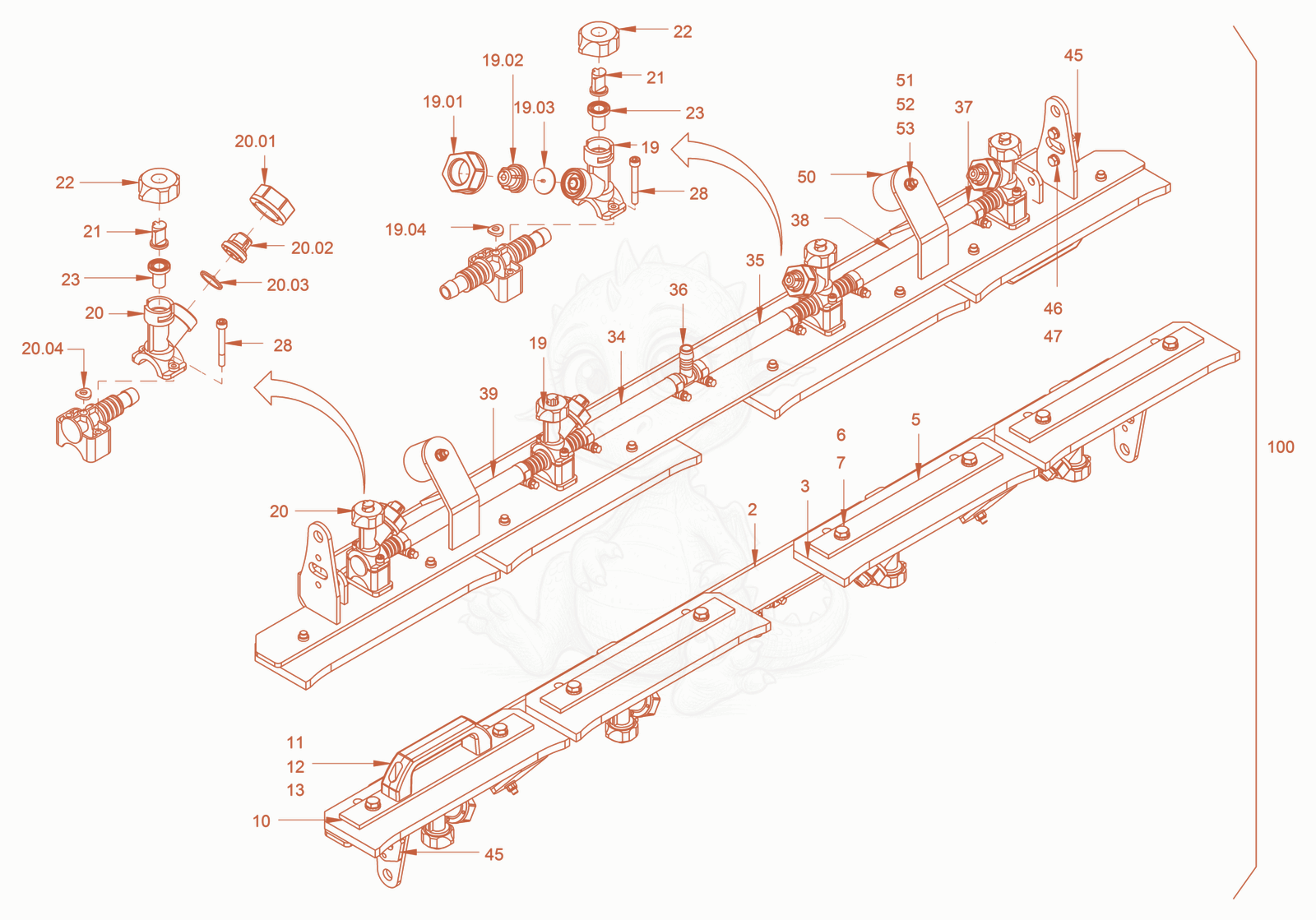

Exploded parts diagram of the additive sprinkling of a Wacker Neuson RD45-140, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

25100012139
$3,991.06
Bracket - 5100012139×1
35100012992
$77.46
Scraper - 5100012992×4
55100012374
$286.79
Flat steel - 5100012374×4
65100013510
$1.57
Hexagon screw - 5100013510×8
75100012966
$1.57
Locking washer - 5100012966×8
105100013206
$574.33
Metal plate - 5100013206×1
115100012932
$44.61
Handle - 5100012932×1
125100012665
$1.49
Countersunk screw - 5100012665×2
135100012545
$1.57
Hexagon nut - 5100012545×2
195100011898
$36.17
Nozzle holder - 5100011898×2
195100011535
$7.59
Cap nut - 5100011535×1
195100011651
$12.75
Membrane holder - 5100011651×1
195100011752
$1.49
Sealing ring - 5100011752×1
195100011978
$4.97
Membrane - 5100011978×1
205100011867
$36.80
Nozzle holder - 5100011867×2
205100011978
$4.97
Membrane - 5100011978×1
205100011752
$1.49
Sealing ring - 5100011752×1
205100011651
$12.75
Membrane holder - 5100011651×1
205100011535
$7.59
Cap nut - 5100011535×1
215100011529
$5.78
Sprinkler nozzle - 5100011529×4
225100011488
$3.62
Nut - 5100011488×4
235100011489
$4.80
Filtering screen - 5100011489×4
285100011756
$1.49
Cheese-head screw - 5100011756×8
345100013223
$119.26
Flexible tubing - 5100013223×0.15
355100013223
$119.26
Flexible tubing - 5100013223×0.15
365100012097
$11.26
T-hose connector - 5100012097×1
375100013367
$2.04
Hose clip - 5100013367×8
385100013223
$119.26
Flexible tubing - 5100013223×0.19
395100013223
$119.26
Flexible tubing - 5100013223×0.19
455100013205
$83.02
Washer - 5100013205×1
465100013572
$1.49
Protecting cap - 5100013572×2
475100012965
$3.01
Locking washer - 5100012965×2
505100012438
$14.53
Silentbloc - 5100012438×2
515100011744
$2.71
Fillister head screw - 5100011744×2
525100012937
$2.53
Washer - 5100012937×2
535100017998
$1.57
hexagonal nut - 5100017998×2
1005100012138
$4,001.68
Scraper - 5100012138×1
