RD45-140

RD45-140 valve block Diagram

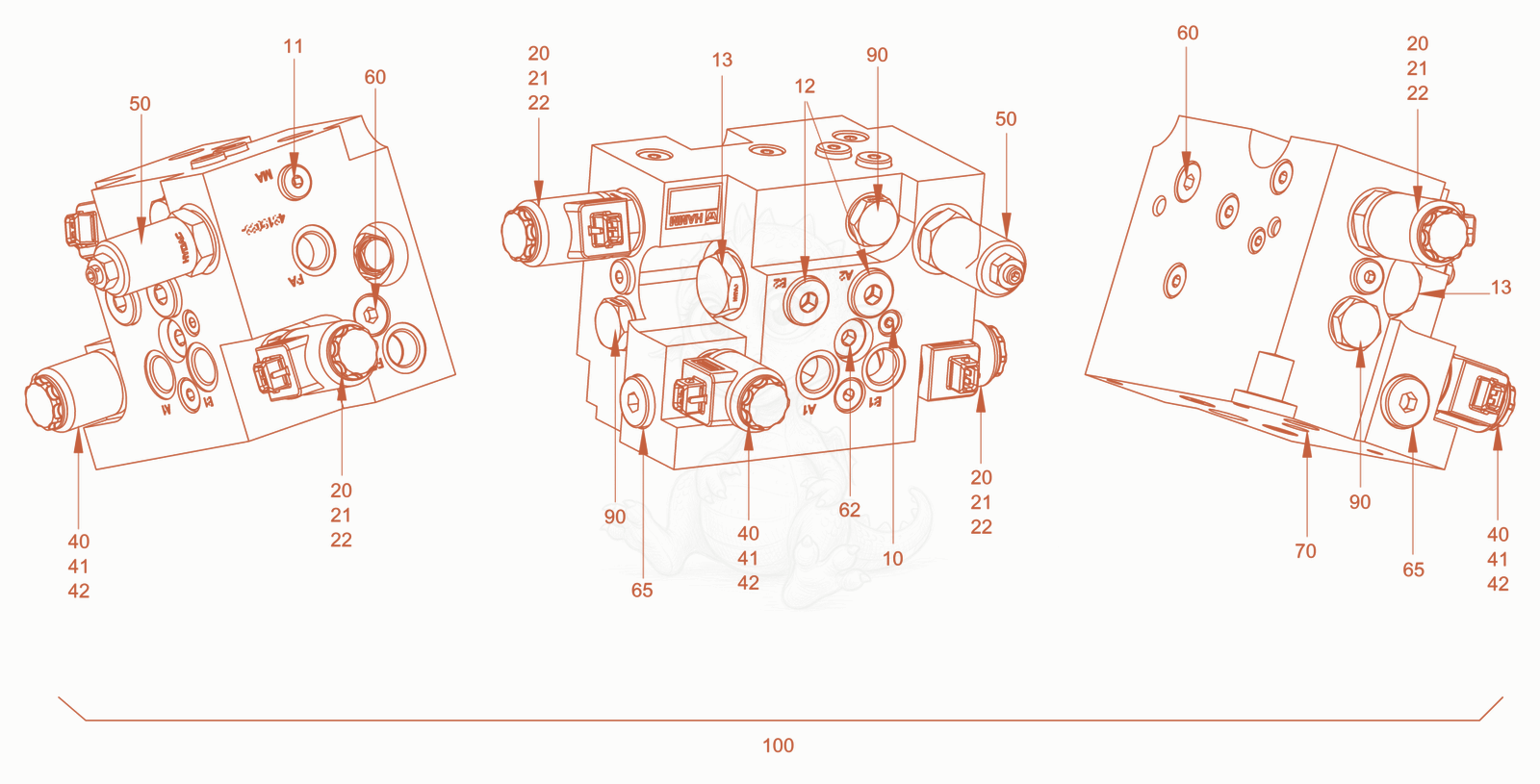

Exploded parts diagram of the valve block of a Wacker Neuson RD45-140, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105100050687Not stocked
    locking screw×2
  • 115100050688Not stocked
    locking screw×1
  • 125100050698Not stocked
    locking screw×2
  • 135100050696Not stocked
    locking screw×1
  • 205100050680
    $1,326.70
    directional control valve - 5100050680×2
  • 215100050681Not stocked
    solenoid coil×2
  • 405100050684Not stocked
    directional control valve×1
  • 415100050683Not stocked
    solenoid coil×1
  • 505100050690
    $1,618.12
    pressure-relief valve - 5100050690×1
  • 605100050691Not stocked
    non-return valve×2
  • 625100050692Not stocked
    non-return valve×1
  • 655100050693Not stocked
    non-return valve×1
  • 705100050700Not stocked
    nozzle×1
  • 905100050697Not stocked
    locking screw×2
  • 1005100050701
    $5,154.55
    control block - 5100050701×1
